Sonel Test Equipment USA

VT-3 Non-contact AC Voltage Detector

VT-3 Non-contact AC Voltage Detector

Regular price $76.00
Regular price Sale price $76.00
Sale Sold out
Shipping calculated at checkout.



Ingress protection: IP 67

Measurement category: CAT IV 1000 V





Description



New version of a neon tester

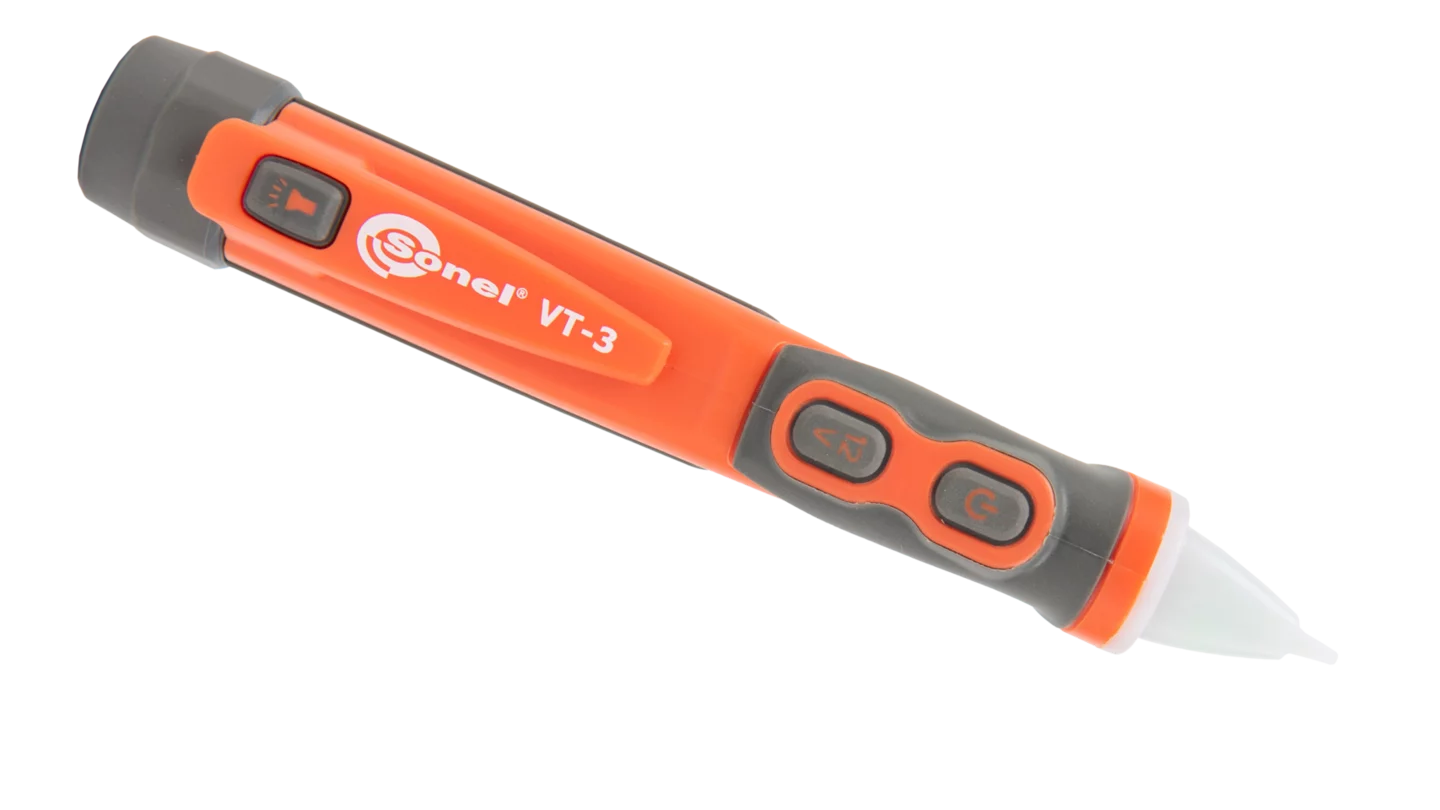

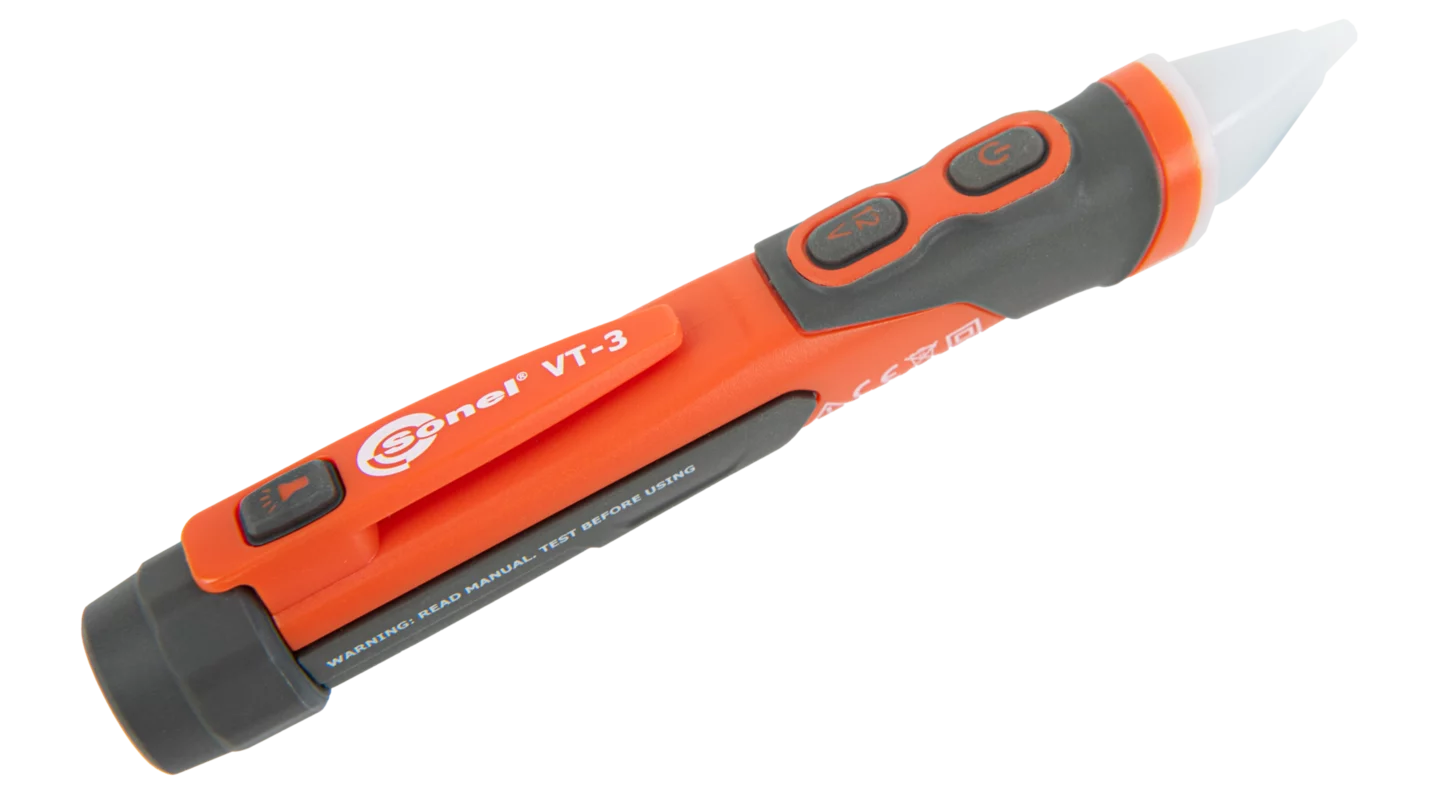

The Sonel VT-3 pocket non-contact voltage indicator is a newer version of the popular neon tester. The instrument is characterized by its rich functionality as well as its lightness and ease of use. The device is designed to detect alternating voltage in cables and electrical equipment. The indicator has a basic detection range of 100...1000 V, but the lower threshold can be lowered to 12 V by pressing a special button. Colored LEDs on the tip of the instrument indicate the operating mode and the level of voltage detected.

Sonel VT-3 is a fully functional, professional instrument hidden in an inconspicuous form and compact dimensions. The highly durable IP 67 casing provides a high level of protection against various types of mechanical damage, drops and even against splashes of water. A particular advantage of this tool is its pocket-size design, which makes it extremely easy to store and transport. An additional advantage is the torch located on the front, which allows to illuminate the place of measurement. The instrument is also equipped with a rear torch for use when moving in poorly lit areas.

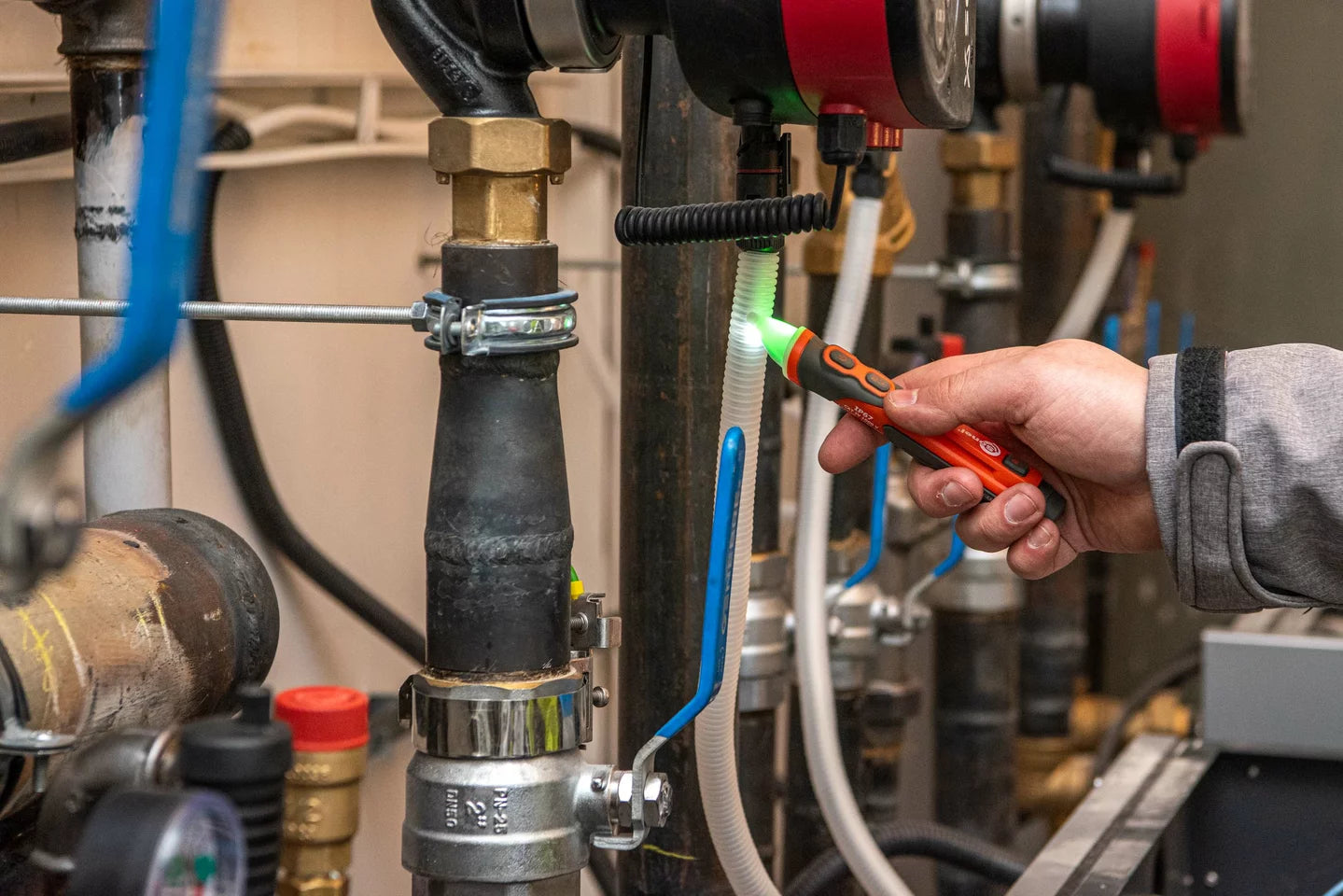

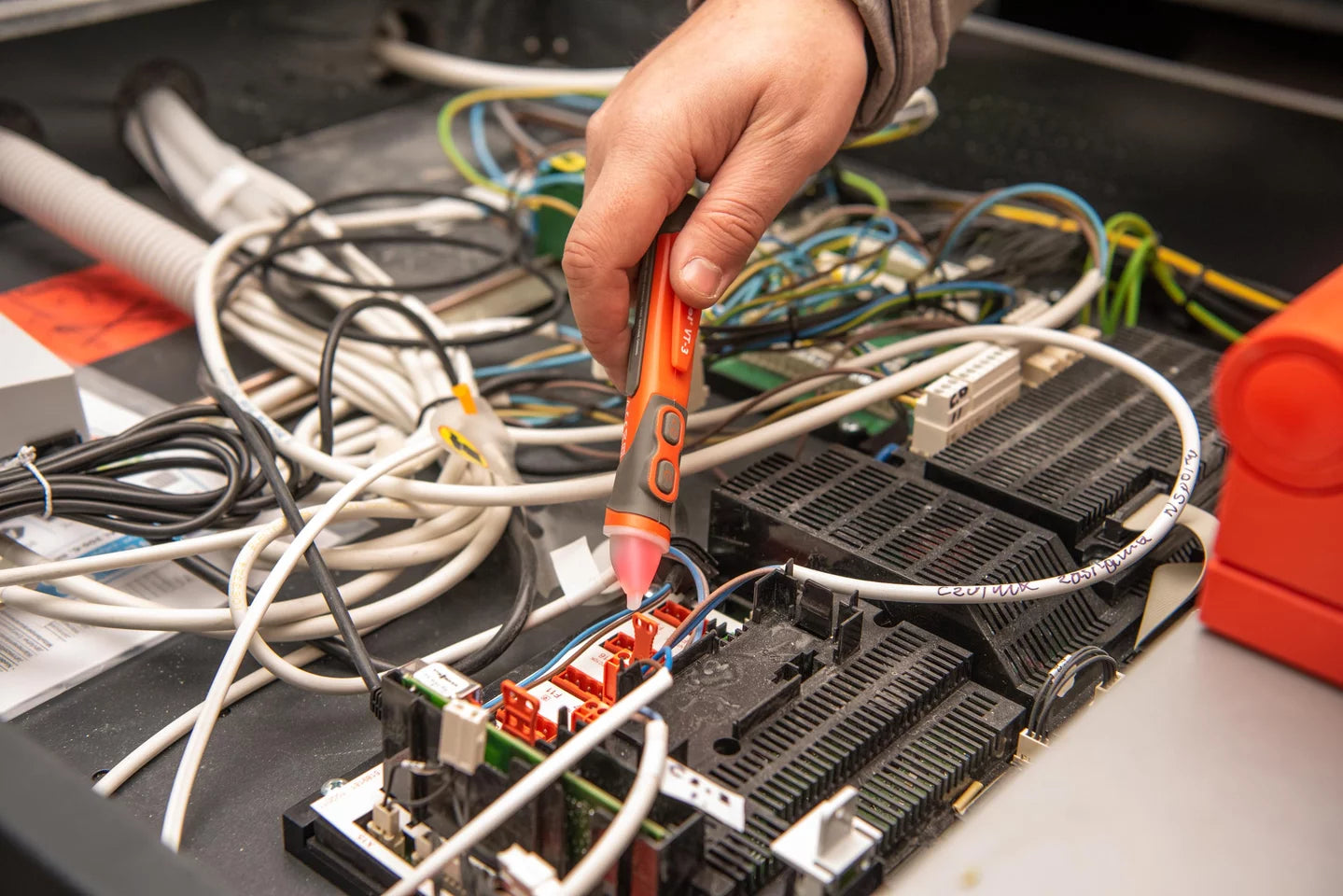

The Sonel VT-3 voltage indicator facilitates measurements even in narrow and hard-to-reach places, where testing with a regular meter could prove impossible. Combining basic measurement functions, robust design and high levels of user comfort, the instrument is ideal for a wide range of applications and is characterized by its trouble-free operation and competitive price. It is a supplementary piece of equipment for electrical specialists and, despite its small size, will certainly prove useful at times during work.



Features

  • two AC voltage detection ranges: 12 V / 100 ... 1000 V
  • durable, two-composite housing
  • waterproof with IP67 protection
  • backlit tip, suitable for power sockets
  • light and sound signaling when voltage is detected.
  • built-in LED flashlight
  • ergonomic housing with the possibility of attaching to a belt.
  • for use in 50/60 Hz mains
  • power supply: 2x AAA 1.5 V battery



Application

The VT-3 indicator is a new face of the classic neon voltage indicator. Lightweight, functional and easy to use, it is applied to detect AC voltage in cables and electrical equipment. The basic detection range is 100...1000 V. However, the lower threshold can be decreased to 12 V by pressing a special button. Colorful LEDs hidden in the device tip will inform about the operating mode and the level of detected voltage.

Thanks to the improved design, the VT-3 maintains IP67 protection, and provides with durability and ergonomics. The built-in flashlight also plays an important role.











Technical data





Parameter Specification
indicators LED and acoustic indicator
voltage range 100…1000 V AC, 12…1000 V AC, 50/60 Hz
measurement category CAT IV 1000 V
ingress protection IP67
operating temperature 0…+50°C | 32…122°F
humidity 80%
power supply 2x 1.5 V battery (AAA, NEDA 24A or IEC LR03)
flashlight single white LED









Weight and dimensions

Parameter Value
Net weight (kg) 0.1
Package weight (kg) 0.1
Package width (cm) 11
Package height (cm) 4
Package length (cm) 23
