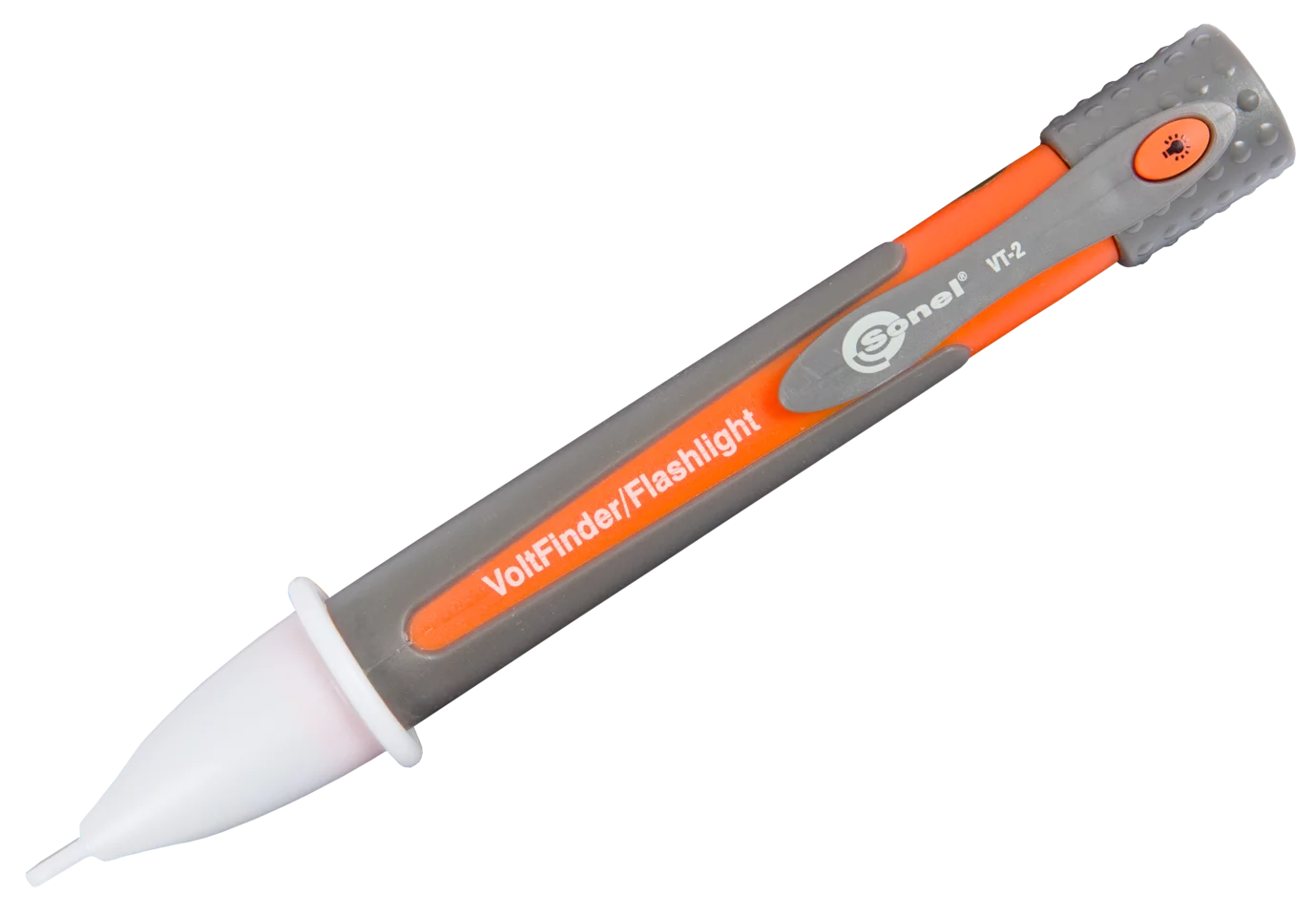

The Sonel VT-2 AC voltage indicatoris a fully functional, professional device hidden in an inconspicuous form and compact dimensions. The instrument is characterised by its rich functionality as well as its lightness and ease of use. The device is designed for contactless detection of AC voltage in the range of 90...1000 V.
The Sonel VT-2 voltage indicator facilitates measurements even in narrow and hard-to-reach places, where testing with a regular meter could prove cumbersome or impossible. Combining basic measuring functions, robust design and high user comfort, the instrument is ideal for many areas.
Product features
non-contact detection of AC voltage from 90 V AC to 1000 V AC
rugged, double molded case
suitable for outlets or against wire insulation testing
flashing red LED light indicator
audible beeper indicator
built-in bright flashlight with ON/OFF button
convenient size with pocket clip
for use on 50/60 Hz circuits
supply by 2 x 1.5 V batteries (LR03)
Application

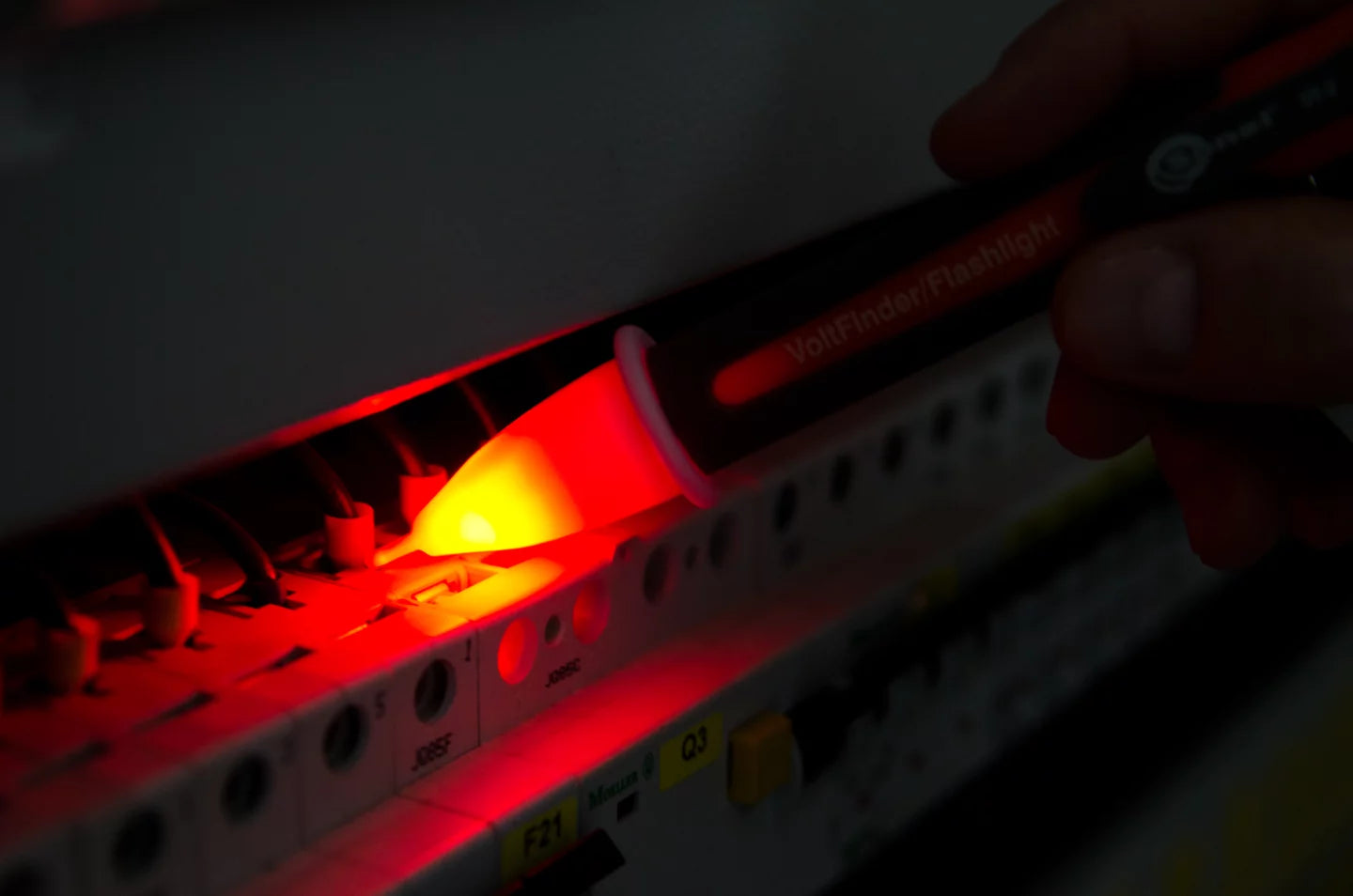

The Non-contact AC Voltage Tester is easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service and safety personnel or homeowners can quickly test for energized circuits in the workplace or at home.
Technical data
Parameter
Specification
Indicators
LED and audible beeper
Voltage range
90...1000 V AC (50/60 Hz)
Overvoltage category
CAT III 1000 V
Pollution degree
2
Ingress protection
IP54
Operating temperature
-10…+50°C | 14…122°F
Humidity
80% without condensation
Batter
2 x 1.5 V battery (AAA, NEDA 24A or IEC LR 03)
Flashlight
one white LED
Weight and dimensions
Parameter
Value
Net weight (kg)
0.1
Package weight (kg)
0.1
Package width (cm)
16
Package height (cm)
4
Package length (cm)
27
