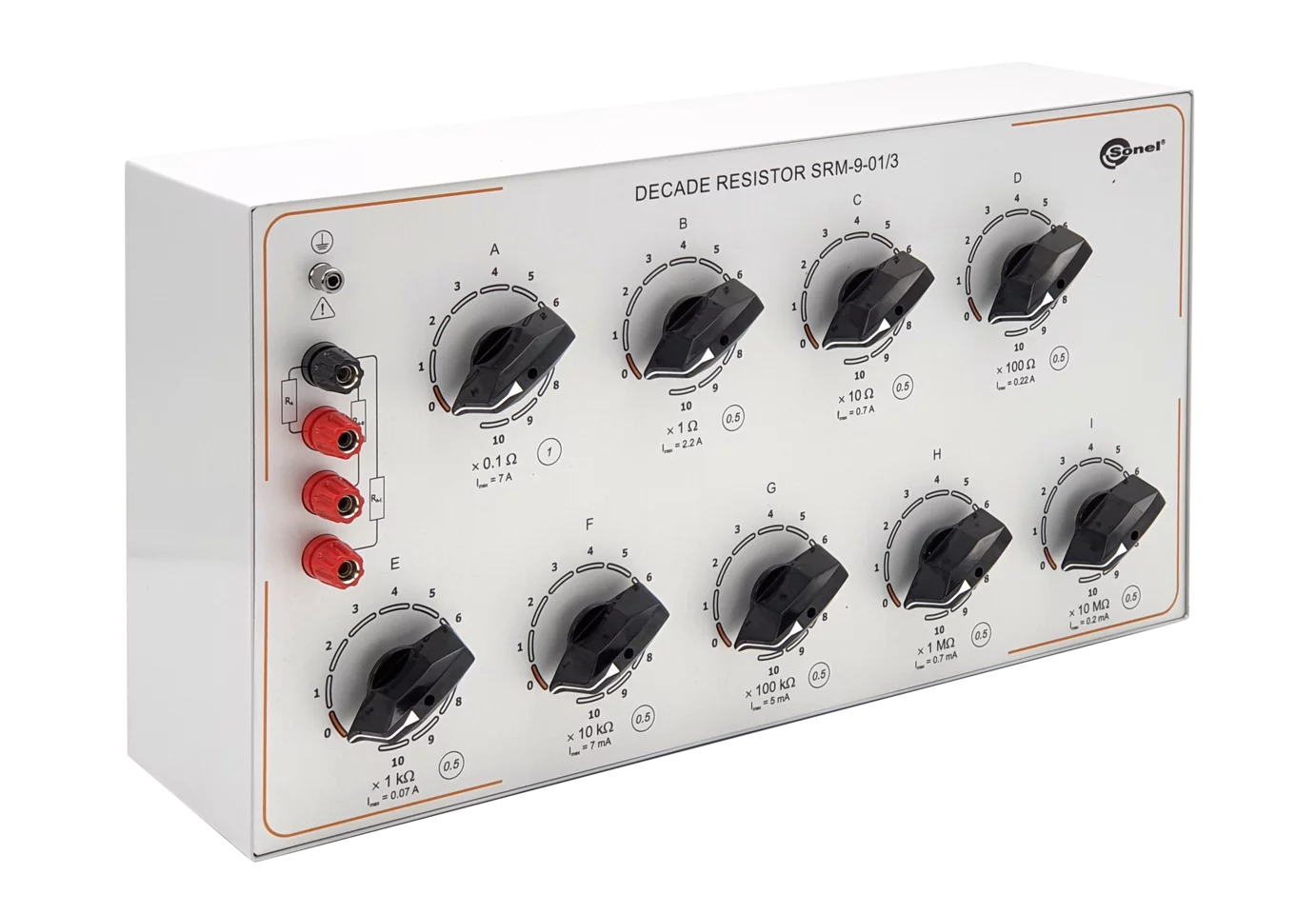

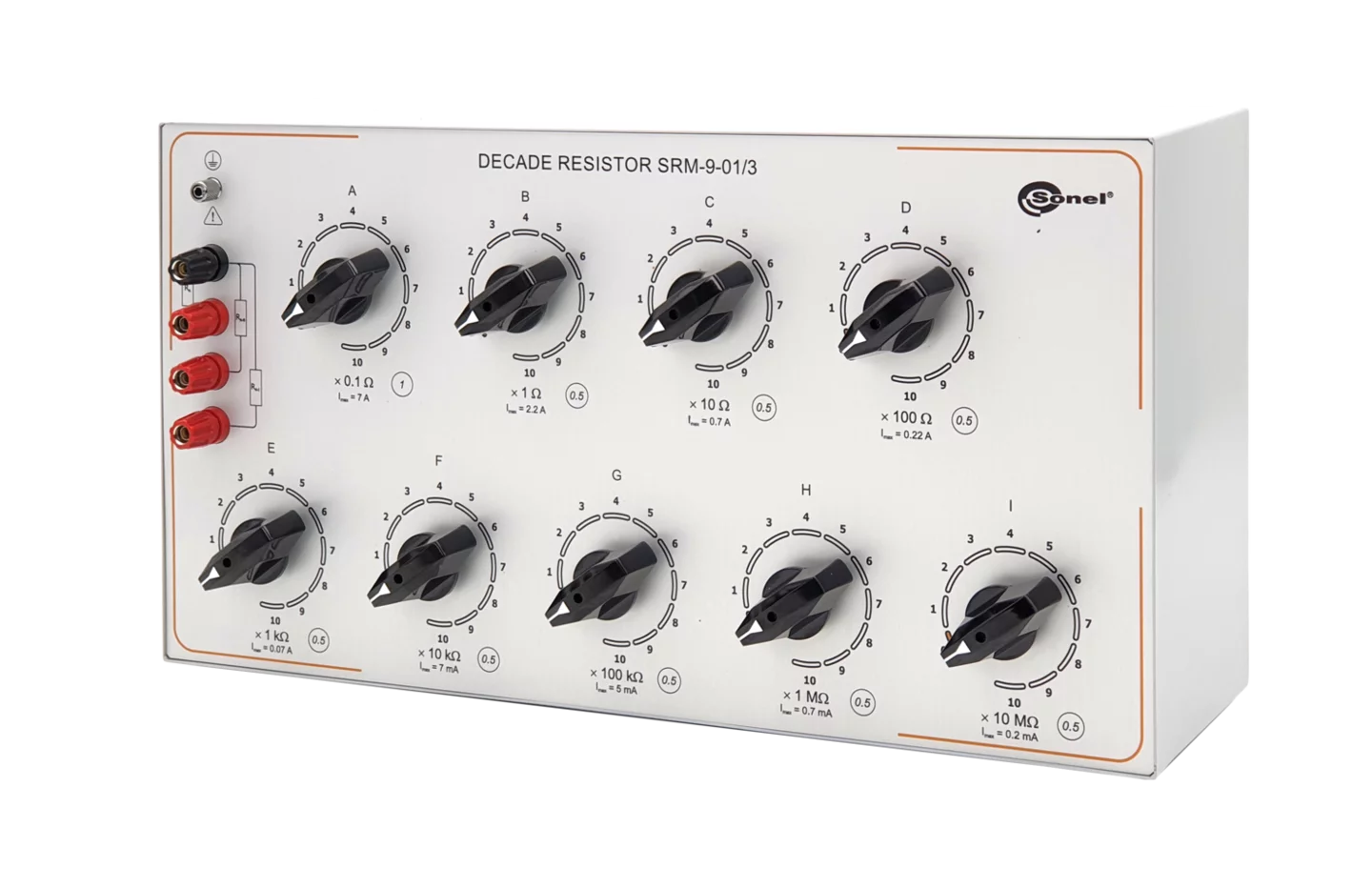

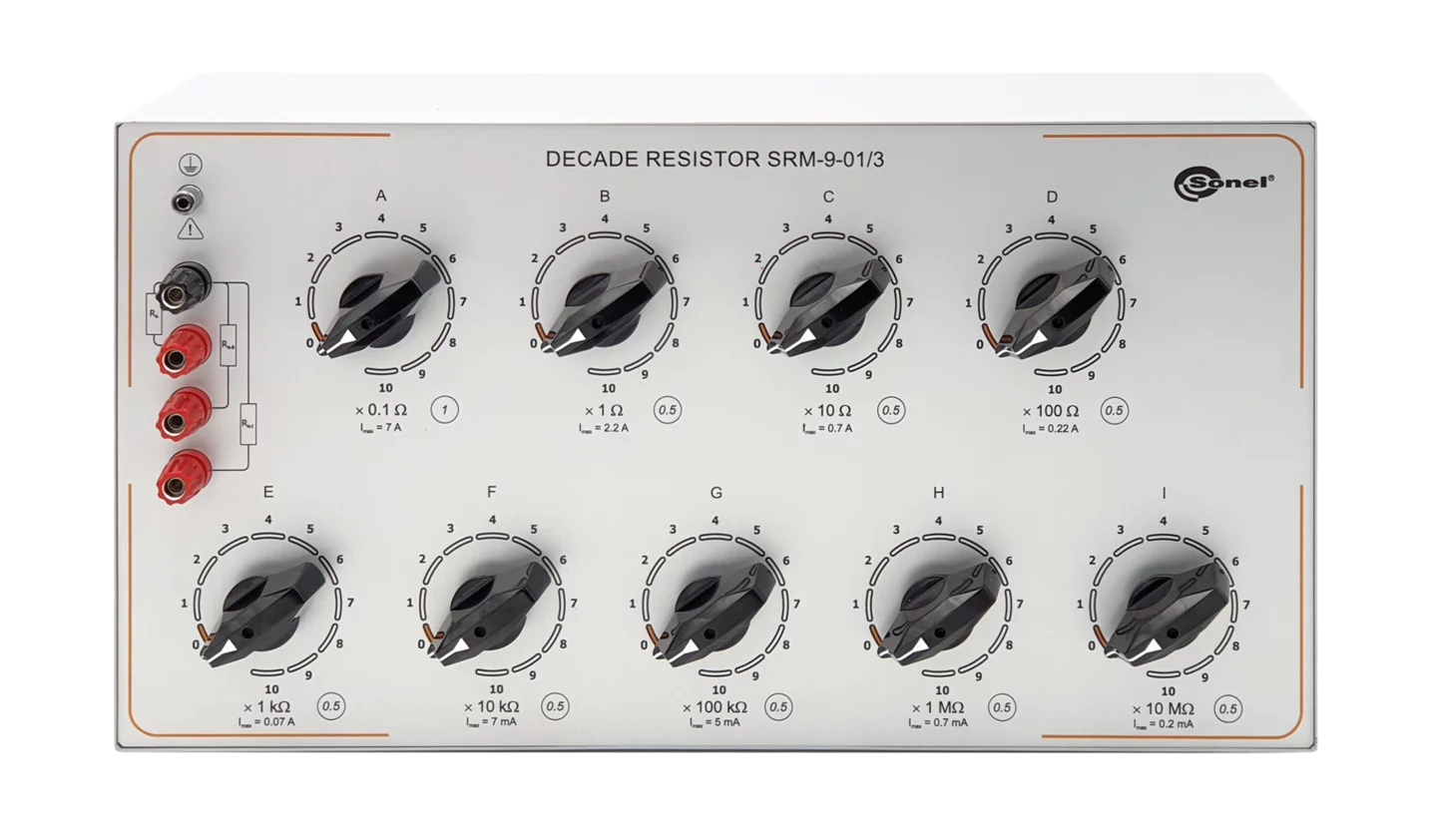

SRM-9-01/3 Standard Manual Resistor

Regular price $3,185.00

Shipping calculated at checkout.


  • Applied as reference standard equipment for verification and calibration of testers

  • Accuracy type 3 class: 1 %, 0.5 %, 0.5 %, 0.5 %, 0.5 %, 0.5 %, 0.5 %, 0.5 %, and 0.5 %.

  • For electrical safety parameters of electric plants

  • Used for metrological laboratories

  • Operating temperature range: +10 - 30 °С

  • Relative humidity: 25 - 60 %

  • Atmospheric pressure: 630 - 800 mm Hg


--









































































Model: SRM-9-01/3 Specifications
Description Standard Manual Resistor
Range Pmax Imax Accuracy (Type 3)
10 × 011 Ω 5 W 7 A 1 %
10×1 Ω 5 W 2.2 A 0.5 %
10 ×10 Ω 5 W 0.7 A 0.5 %
10 ×100 Ω 5 W 0.22 A 0.5 %
10 ×1 Ω 5 W 0.07 A 0.5 %
10 ×10 Ω 5 W 7  mA 0.5 %
10 ×100 kΩ 3 W 5 mA 0.5 %
10 ×1 MΩ 0.5 W 0.7 mA 0.5 %
10×10 MΩ 0.5 W 0.2 mA 0.5 %



























Additional Technical Specification
Dimensions 290×140×130 mm
Weight 3 kg / 6.61 lbs
Operating temperature range +10 - 30 °С
Relative humidity 25 - 60 %
Atmospheric pressure 630 - 800 mm Hg




Tech Specs





































Test Equipment General Attributes


Product Weight 6.61 LBS
Product Height 5.51 IN
Product Length 5.11 IN
Product Width 11.41 IN
Shipping Height 5.51 IN
Shipping Length 5.11 IN
Shipping Width 11.41 IN
