DESCRIPTION



  • HV insulation under full control

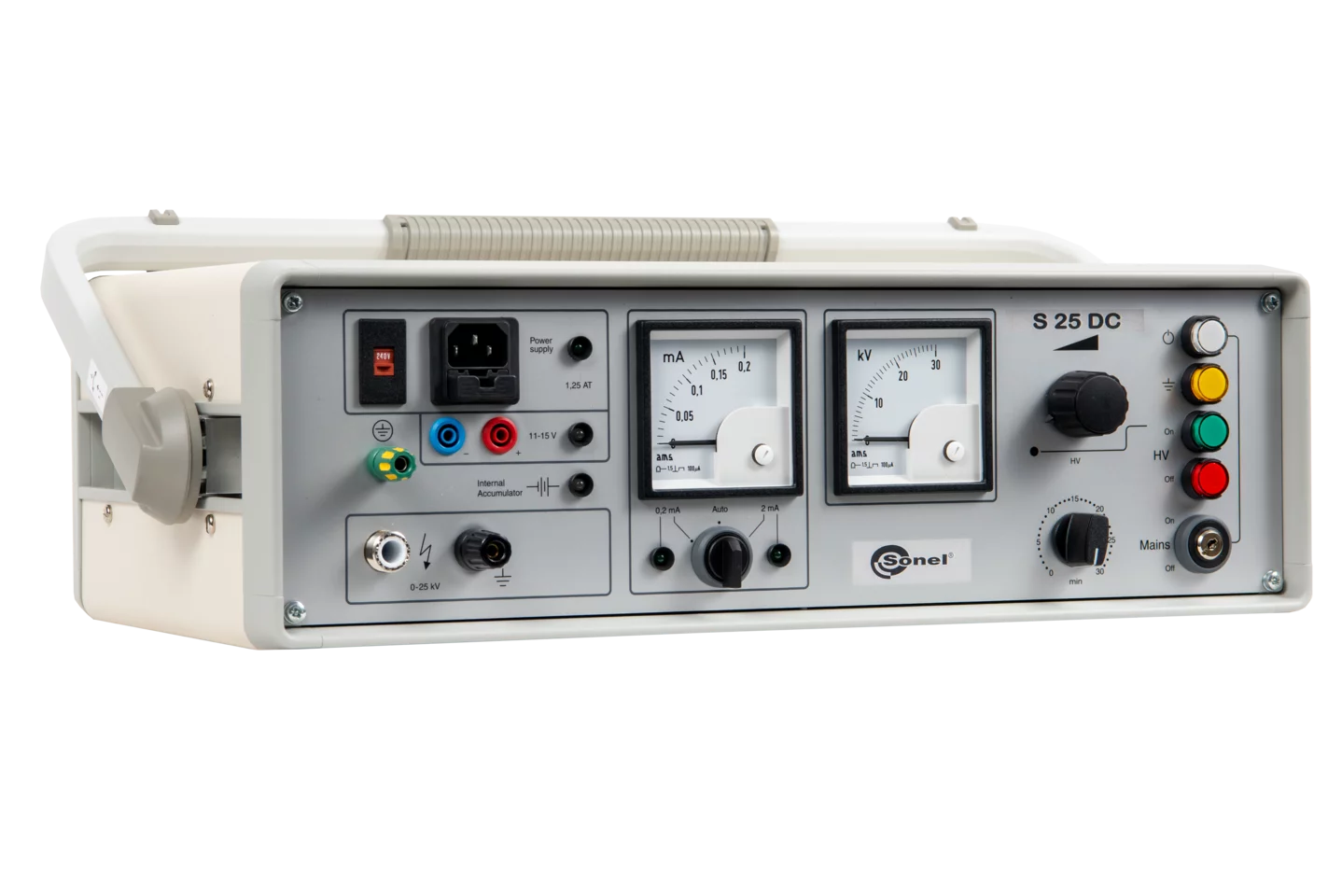

    The S-25DC device is a universal high voltage tester. It stands out in a special way. Not only by its modest dimensions. Due to its internal rechargeable battery, it allows tests even when mains power is unavailable.

    Capacitive objects, such as shielded power cables, will be correctly and automatically discharged by the integrated discharge module if an error occurs or the test time expires. A key switch, a switch-on lock and a protective earthing circuit ensure maximum safety.

    Sonel offers online training course on the use of this product (instructional video and consultation with a specialist).





    Features

    • Easy operation
    • Robust construction, low weight
    • Integrated timer:
      • max. 30 min
    • •Discharge device:
      • integrated
    • Internal battery charger with deep discharge protection
    • Voltage measurement direct at HV output
    • Short-circuit-proof output:
      • electronically limited output current
    • Protective ground connection
    • Mains-independent by internal rechargeable battery



    Fields of application

    • Testing at recommissioning of cable systems after maintenance and repair
    • Testing of newly installed cables an cable joints before commissioning
    • Voltage testing at cable sheath
    • Testing of electrical equipment









    TECHNICAL SPECIFICATION

    S-25 DC S-50 DC S-80 DC S-110 DC S-120 DC
    Power supply • internal rechargeable battery • mains, switchable 115 / 230 V, 50-60 Hz • external DC voltage source mains 230 V / 50 Hz (optional: 115 V / 60 Hz mains 230 V / 50 Hz (optional: 115 V / 60 Hz mains 230 V / 50 Hz (optional: 115 V / 60 Hz mains 230 V / 50 Hz (optional: 115 V / 60 Hz
    Power consumption max. 120 VA max. 900 VA max. 900 VA max. 900 VA max. 900 VA
    Output voltage • 0…25 kV DC • infinitely adjustable • negative polarity • ripple < 0,25% • 0…50 kV DC • infinitely adjustable • negative polarity • 0…80 kV DC • infinitely adjustable • negative polarity • 0…110 kV DC • infinitely adjustable • negative polarity • 0…120 kV DC • infinitely adjustable • negative polarity
    Rated output current at max. output voltage 1.5 mA electronically limited 6 mA 5 mA 4 mA 3,5 mA
    Battery operation at full load 45 min - - - -
    Discharge - integrated automatic discharge device 3000 J 9.6 µF at 25 kV 7500 J 6 µF at 50 kV 12 250 J 4 µF at 75 kV 3.5 µF at 80 kV 15 000 J 3 µF at 100 kV 2.5 µF at 110 kV 18 750 J 2.4 µF at 125 kV 2.6 µF at 120 kV
    Voltage measuring range 0…30 kV 0…50 kV 0…80 kV 0…110 kV 0…130 kV
    Current measuring ranges 0…200 µA / 0…2 mA manual or automatic switching between ranges 0…100 μA / 1 mA / 10 mA manual switching between ranges 0…100 μA / 1 mA / 10 mA manual switching between ranges 0…100 μA / 1 mA / 10 mA manual switching between ranges 0…100 μA / 1 mA / 10 mA manual switching between ranges
    Operating temperature -25…+55°C
    -13…+131°F    		 -25…+55°C
    -13…+131°F    		 -25…+55°C
    -13…+131°F    		 -25…+55°C
    -13…+131°F    		 -25…+55°C
    -13…+131°F
    Storage temperature -40…+70°C
    -40…+158°F    		 -40…+70°C
    -40…+158°F    		 -40…+70°C
    -40…+158°F    		 -40…+70°C
    -40…+158°F    		 -40…+70°C
    -40…+158°F
