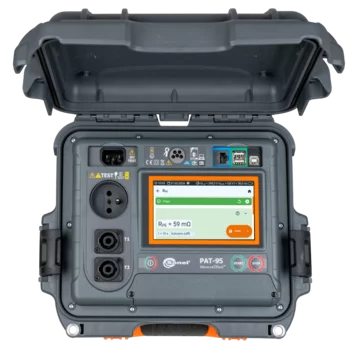

PAT-95 Portable Appliance Tester
PAT-95 Portable Appliance Tester
Couldn't load pickup availability
Ensure the safety of appliances and power tools
Ensure safe use of electrical equipment with the Sonel PAT-95 electrical equipment safety meter.
The Sonel PAT-95 advanced meter is perfect for control measurements of electrical devices. The instrument allows to measure parameters having an impact on the safe use of the equipment, such as resistance of protective conductors, insulation resistance, continuity of connections, leakage currents, power, RCD and PRCD.
The Sonel PAT-95 electrical equipment safety meter will come in handy in those areas where safety is of particular importance. Reliable wherever power tools, three-phase appliances or domestic appliances need to be inspected.
Sonel MeasureEffect™
The meter is a part of the Sonel MeasureEffect™ platform. It is a comprehensive system that enables you to take measurements, store and manage data, and provides multi-level control of your instruments.
Features
- Power supply 95...265 V
- Measurement of devices with 110 V and 230 V 50/60 Hz power supply
- Measuring system that enables:
- protective conductor resistance measurement,
- measurement of substitute, differential and touch leakage current,
- functional test,
- test of RCD and PRCD switches,
- ...and much more.
- Built-in measurement procedure wizard
- Intuitive user interface
- Cooperation with a label printer and QR code scanner
Application

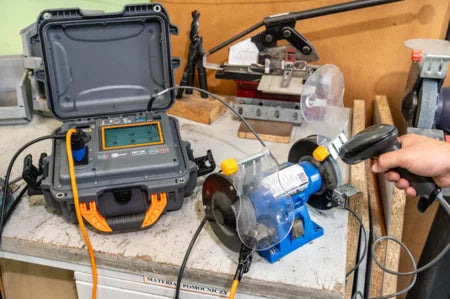

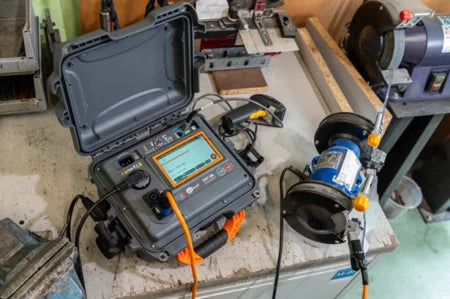

Sonel PAT-95 is an ideal choice for professionals involved in the maintenance and repair of power tools and other appliances. Thanks to its accurate testing, it provides a detailed analysis of the technical condition of the equipment under examination. It guarantees both the safety of users and the long-term maintenance of equipment in optimal technical condition. Developed on the basis of the experience gained, the Sonel PAT-95 tester is designed for both field and industrial challenges.
Versatility

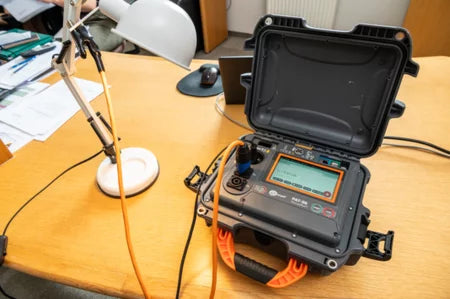

The device is used wherever safety is the most important thing. Ideally suited to situations where it is necessary to check power tools, three-phase devices and household appliances.
Capabilities
Thanks to the extensive measuring part, PAT-95 enables comprehensive checking of electrical devices. The touch screen and autoprocedures section make testing quick and efficient. The automatic procedure wizard means even more flexibility for the instrument. The meter has a built-in help system.
The meter cooperates with a label printer and QR scanner, which greatly facilitates the recordkeeping of tools. The following printouts are available:
- initial measurement report,
- QR code, where, which stores unique data to identify the device in the database.
These data can be read and added to the meter memory using the optional QR code scanner.

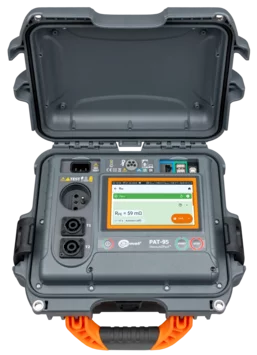

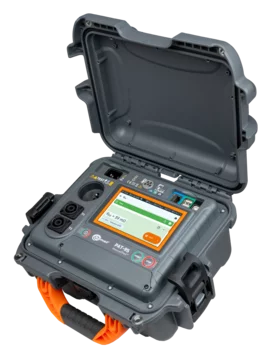

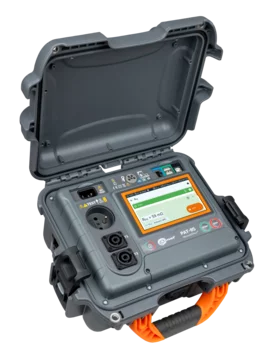

The whole picture is complemented by a compact and durable housing. It provides instrument protection during both measurements and transport.Capabilities
Memory
The memory has a tree structure, built from folders, objects and devices. For each device tested it contains its description, location of measurements, customer data and registration number.
Standards
The instrument can be used to test equipment according to standards, among others:
- EN 50699
- EN 50678
- EN 60974-4
- VDE 0701-0702
- VDE 0404-1
- VDE 0404-2
- EN 60745-1
- EN 62841
- EN 60335-1
- EN 60950
- EN IEC 62368-1
- AS/NZS 3760
Technical Specifications
Specifications
| Measurement functions | Range | Resolution | Accuracy |
|---|---|---|---|
|
Resistance of protective conductor (PE)
I = 200 mA / 10 A / 25 A |
up to 19.99 Ω | from 1 mΩ | from ±(3% m.v. + 4 digits) |
|
Insulation resistance UISO = 100 V / 250 V / 500 V / 1000 V |
up to 599.9 MΩ | from 1 kΩ | ±(5% m.v. + 8 digits) |
| Current (clamp measurement) | up to 24.9 A | from 1 mA | ±(5% m.v. + 5 digits) |
| Visual test | ✓ | ||
| Continuity check of protective conductor (PE) | ✓ | ||
| Insulation resistance measurement at three points | ✓ | ||
| IEC cable test | ✓ | ||
| Functional test | |||
| Apparent power S | up to 3.99 kVA | from 1 VA | ±(5% m.v. + 3 digits) |
| Active power P | up to 3.99 kW | from 1 W | ±(5% m.v. + 3 digits) |
| Reactive power Q | up to 3.99 kvar | from 1 var | ±(5% m.v. + 3 digits) |
| Power Factor (PF) | up to 1.00 | 0.01 | ±(10% m.v. + 5 digits) |
| Current consumption for power measurement | up to 15.99 A | 0.01 A | ±(2% m.v. + 3 digits) |
| THD for voltage and current | up to 999.9% | 0.1% | ±(5% m.v. + 5 digits) |
| cosφ | up to 1.0 | 0.1 | ±(5% m.v. + 5 digits) |
| Leakage current measurement | |||
| PE leakage current and differential leakage current | up to 19.9 mA | 0.01 mA | ±(5% m.v. + 2 digits) |
| Substitute leakage current | up to 19.9 mA | 0.01 mA | ±(5% m.v. + 2 digits) |
| Touch leakage current | up to 4.999 mA | 0.001 mA | ±(5% m.v. + 3 digits) |
| RCD and PRCD switch test | |||
| Measurement of RCD parameters according to IEC 61557 | up to 300 ms | 1 ms | ±(2% m.v. + 2 digits) |
| Measurement of RCD tripping current IA for sinusoidal residual current (AC type) | up to 30 mA | 0.1 mA | ±5% IΔn |
| Measurement of power network parameters | |||
| Voltage | up to 265.0 V | 0.1 V | ±(2% m.v. + 2 digits) |
| Frequency | up to 65.0 Hz | 0.1 Hz | ±(2% m.v. + 2 digits) |
m.v. – measured value
