P-5 Voltage Tester

P-5 Voltage Tester

$230.00
$230.00
Sale Sold out
Shipping calculated at checkout.

SONEL P-5 has all the features that characterize the P-4 Voltage Tester. In addition, the P-5 model has the ability to take resistance measurements up to 2 kΩ and has an LCD display that allows you to display the voltage and resistance values accurately.


Main functions and attributes of the P-line instruments:

  • automatic voltage test up to 1000 V AC/DC,

  • optical indication by a LED bar and additional LCD display,

  • sound indication when dangerous voltage levels of 50 V AC and 120 V DC are exceeded,

  • RCD trip test with switchable load,

  • automatic continuity test upon connection to the object,

  • 2-pole test of phase rotation direction,

  • single-pole indication of 100 V presence,

  • resistance measurement up to 1999 Ω,

  • HOLD function for freezing the measurement results,

  • robust, two-component housing protecting from mechanical damages and impacts,

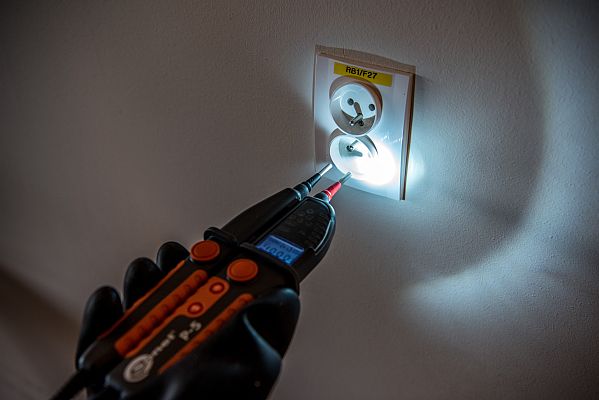

  • integrated torch light and backlit display for tests in poorly lit areas,

  • IP65 ingress protection guarantees protection against dust and water,

  • safety provided by measuring class compliant with CAT IV 600 V and CAT III 1000 V.



--

Measurement of direct and alternating voltages:


  • on the diode bar (bargraph): 12, 24, 50, 120, 230, 400, ≥690 V,

  • on a backlit LCD display up to 1000 V,

  • determination of voltage: alternating or direct polarization.


Circuit continuity test:

  • signaling for resistance for R ≤ 400 kΩ,

  • light and sound signaling.


Resistance measurement:

  • measuring range up to 1999 Ω.


Phase spin indicator:

  • phase sequence indication for voltage> 100 V.


Unipolar phase designation:

  • optical and acoustic signaling for voltage> 100 V.


Residual Current Circuit Breaker Test:

  • breaker test with I Δn ≤30 mA.


Other data:

  • Display: backlit LCD 3½ digits, reading 1999 with function indicators.

  • Result hold: HOLD button to hold the result on the LED bar and LCD display.

  • Operating frequency: 16..400 Hz.

  • Measurement category according to PN-EN 61010-1: CAT III 1000 V, IV 600 V.

  • Housing protection degree according to PN-EN 60529: IP65.

  • Type of insulation according to PN-EN 61010-1: double, class II.

  • Meter power supply: 2 x LR03 AAA 1.5 V (alkaline cells recommended).

  • Working / storage temperature: -15 .. + 55 ° C / -20 .. + 70 ° C.

  • Dimensions: 275 x 82 x 36 mm.

  • Weight without batteries: 267 g

  • Measuring tips: Ø2 mm / Ø 4 mm / length 4mm (GS38).

  • Measurement place backlight: built-in flashlight.

  • The instruments meet the requirements of the following standards: PN-EN 61326-1, PN-EN 61326-2-2, PN-EN 61010-1, PN-EN 61243-3.

  • Warranty: 24 months.
