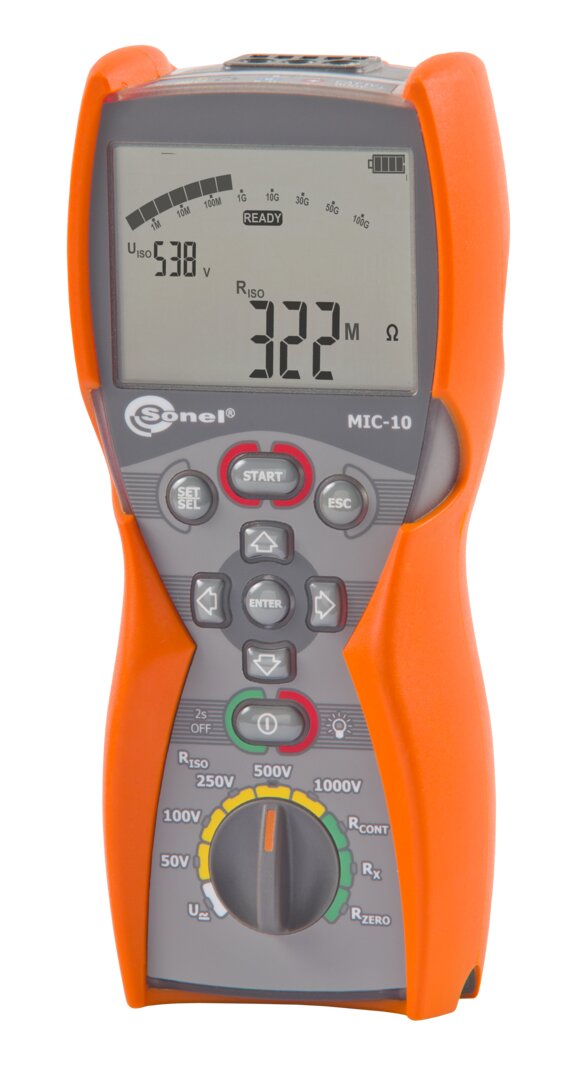

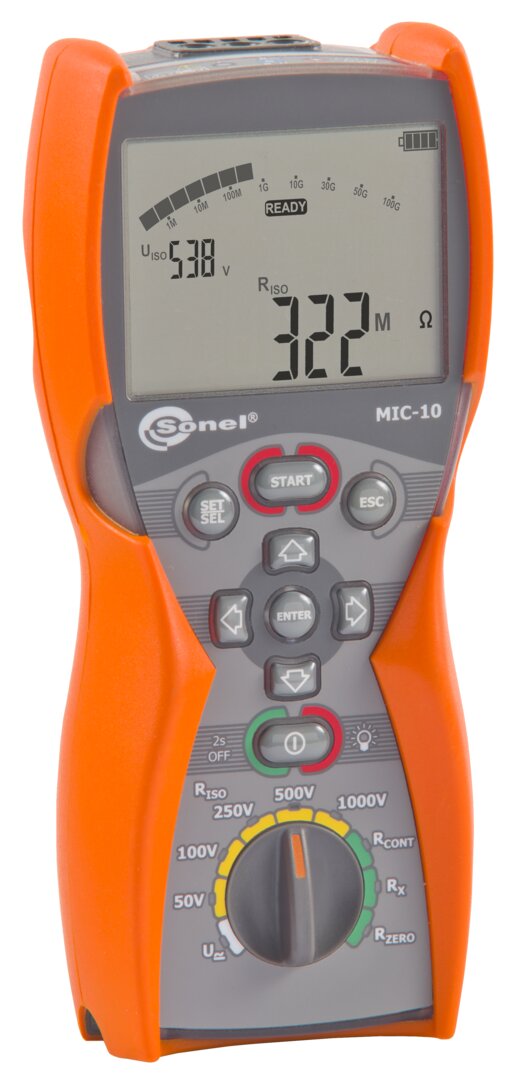

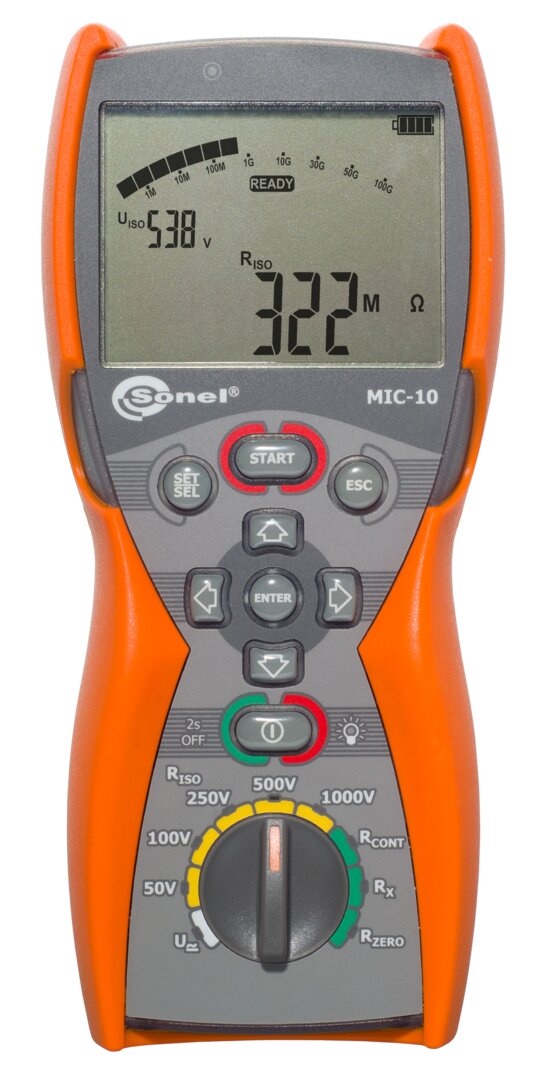

MIC-10 Insulation Resistance Meter

MIC-10 Insulation Resistance Meter

Regular price $630.00
Regular price Sale price $630.00
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION



  • Measure insulation resistance up to 10 GΩ

    Sonel MIC-10 insulation resistance meter is a reliable device for measuring insulation resistance up to 10 GΩ. Due to its compact dimensions, ergonomic design and versatile application, this compact meter is a must for every professional working on electrical installations. It works flawlessly in areas with low voltage, such as electrical installations in single- and multi-family buildings, public facilities, as well as workshops and factories.



    Main features

    • measurement of insulation resistance up to 10 GΩ thanks to max 1000 V measurement voltage
    • designed for harsh environmental conditions - IP67 ingress protection.
    • allows for testing electrical continuity - RCONT 200 mA function
    • checking start capacitors in motors thanks to capacity measurement function

    …and much more

    • measurement voltage selected from: 50, 100, 250, 500, 1000 V
    • continuous reading of measured insulation resistance
    • automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
    • sound signaling of five-second time intervals, facilitating capture of time characteristics.
    • readings of actual measurement voltage during measurement
    • protection against measurement of live objects
    • three-lead measurement
    • capacitance measurement during measurement of RISO
    • low-voltage measurement of circuit continuity and resistance
    • continuity test of protective conductors and equipotential bonding with current ≥200 mA flowing in two directions in compliance with EN 61557-4
    • measurement of direct and alternating voltages within the range of 0…600 V



    Application

    MIC-10 is an insulation resistance meter, which may be very useful for various electrical works (even the simplest), in locations with Low Voltage power supply, including electrical systems in single- and multi-family buildings as well as in public buildings and in small workshops or factories. With its test voltage settings of 50 V, 100 V or 250 V the device is perfect for quick checking of the insulation condition in telecommunications systems and control cables.



    Features

    Test voltage settings of 500 V or 1000 V perfectly match the requirements for assessing the protection of power supply lines but also of floors and walls - PRS-1 probe (optional accessory) is very useful for this purpose.

    With MIC-10 meter you can check whether an object is under voltage (measuring range up to 600 V), both in overhead and cable networks (measuring category of the device: CAT IV 600 V). You can verify the continuity of cables, e.g., PE connections and equipotential bonding - using the current of at least 200 mA, according to EN 61557-4. You can check the capacity of the start-up capacitors in household appliances and drives of any type (measuring range up to 10 µF).

    This makes MIC-10 meter an essential tool for every service technician.



    Durable housing

    Handy and ergonomic housing provides protection of IP67, ensuring reliability of the meter even in the harshest environmental conditions (moisture, dust, high temperature, etc.).



    TECHNICAL SPECIFICATION



    • Insulation resistance measurement


      Measuring range​​​​​​​:

      • Un=50 V: 50 kΩ…250.0 MΩ
      • Un=100 V: 100 kΩ…500.0 MΩ
      • Un=250 V: 250 kΩ…2.000 GΩ
      • Un=500 V: 500 kΩ…5.000 GΩ
      • Un=1000 V: 1000 kΩ…10.00 GΩ
      Range Resolution Accuracy
      0.0…999.9 kΩ 0.1 kΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      1.000…9.999 MΩ 0.001 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      10.00…99.99 MΩ 0.01 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      100.0…250.0 MΩ (for Un = 50 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      100.0…500.0 MΩ (for Un = 100 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      100.0…999.9 MΩ (for Un ≥ 250 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      1.000…2.000 GΩ (for Un = 250 V) 0.001 GΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
      1.000…9.999 GΩ (for Un ≥ 500 V) 0.001 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
      10.00…20.00 GΩ (for Un ≥ 500 V)** 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
      10.000…99.99 GΩ (for Un = 1000 V) 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
      10.00 GΩ (for Un = 1000 V) 0.1 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*



      “m.v.” - measured value



      * for WS-04 adapter

      ** for WS-04 adapter, range up to 10 GΩ



      Low-voltage measurement of continuity of circuit and resistance


      Measuring range according to EN 61557-4: 0.10…1999 Ω

      Range Resolution Accuracy
      0.00…19.99 Ω 0.01 Ω ±(2% m.v. + 3 digits)
      20.0…199.9 Ω 0.1 Ω ±(2% m.v. + 3 digits)
      200…1999 Ω 1 Ω ±(4% m.v. + 3 digits)



      DC and AC voltage measurement


      Range Resolution Accuracy
      0…299.9 V 0.1 V ±(2% m.v. + 6 digits)
      300…600 V 1 V ±(2% m.v. + 2 digits)

      Capacitance measurement


      Range Resolution Accuracy
      1…999 nF 1 nF ±(5% m.v. + 10 digits)
      1.00…9.99 μF 0.01 μF ±(5% m.v. + 10 digits)



      • Capacitance measurement result displayed after measurement of RISO
      • For measurement voltages below 100 V and measured resistance of less than 10 MΩ, the error of capacitance measurement is unspecified
