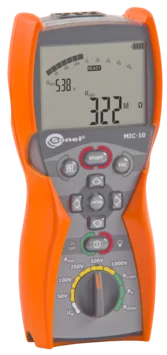

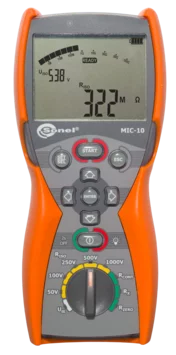

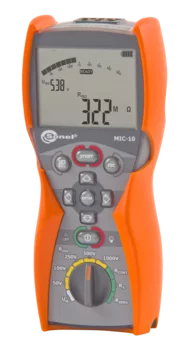

MIC-10 Insulation Resistance Meter

MIC-10 Insulation Resistance Meter

$525.00

Shipping calculated at checkout.


  • Insulation resistance measurement:
    - selected test voltage: 50, 100, 250, 500, 1000 V,
    - continuous indication of insulation resistance or leakage current,
    - automatic discharge of capacitance of tested object after the insulation resistance measurement,
    - acoustic signalling of five-second periods to facilitate obtaining time characteristics,
    - indication of actual test voltage during the measurement,
    - protection against measuring live objects,
    - three-lead measurement.

  • Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current

  • Low-voltage circuit continuity and resistance measurement:
    - circuit resistance measurement (<1999 ) with the <15 mA current,
    - quick sound signal if circuit resistance is below 30Ω.

  • Capacitance measurement during the RISO measurement

  • Measurement of alternating and direct voltages in the 0...600 V range.

  • Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.

  • Meter conform to EN 61557.



--

Electric safety:


  • type of insulation: double, according to EN 61010 - 1 and IEC 61557

  • measurement category: IV 600 V (III 1000 V) according to EN 61010 - 1

  • protection class acc. to EN 60529: IP67


Other technical specifications:


  • power suply: 4 alkaline batteries or or battery package Ni-MH

  • weight: ~1 kg

  • dimentions: 220 x 100 x 60 mm


Insulation resistance measurement


Measuring range according to EN 61557 - 2 for UN=50 V: 50 kΩ...250,0 MΩ































Range Resolution Accuracy
0,0...999,9 kΩ 0,1 kΩ ±(3% m.v. + 8 digits)
1,000...9,999 MΩ 0,001 MΩ ±(3% m.v. + 8 digits)
10,00...99,99 MΩ 0,01 MΩ ±(3% m.v. + 8 digits)
100,0...250,0 MΩ 0,1 MΩ ±(3% m.v. + 8 digits)

Measuring range according to EN 61557 - 2 for UN=100 V: 100 kΩ...500,0 MΩ































Range Resolution Accuracy
0,0...999,9 kΩ 0,1 kΩ ±(3% m.v. + 8 digits)
1,000...9,999 MΩ 0,001 MΩ ±(3% m.v. + 8 digits)
10,00...99,99 MΩ 0,01 MΩ ±(3% m.v. + 8 digits)
100,0...500,0 MΩ 0,1 MΩ ±(3% m.v. + 8 digits)

Measuring range according to EN 61557 - 2 for UN=250 V: 250 kΩ...2,000 GΩ



































Range Resolution Accuracy
0,0...999,9 kΩ 0,1 kΩ ±(3% m.v. + 8 digits)
1,000...9,999 MΩ 0,001 MΩ ±(3% m.v. + 8 digits)
10,00...99,99 MΩ 0,01 MΩ ±(3% m.v. + 8 digits)
100,0...999,0 MΩ 0,1 MΩ ±(3% m.v. + 8 digits)
1,000...2,000 GΩ 0,001 GΩ ±(3% m.v. + 8 digits)

Measuring range according to PN-EN 61557 - 2 for UN=500 V: 500 kΩ...5,00 GΩ



































Range Resolution Accuracy
0,0...999,9 kΩ 0,1 kΩ ±(3% m.v. + 8 digits)
1,000...9,999 MΩ 0,001 MΩ ±(3% m.v. + 8 digits)
10,00...99,99 MΩ 0,01 MΩ ±(3% m.v. + 8 digits)
100,0...999,0 MΩ 0,1 MΩ ±(3% m.v. + 8 digits)
1,000...5,000 GΩ 0,001 GΩ ±(4% m.v. + 6 digits)

Measuring range according to EN 61557 - 2 for UN=1000 V: 1000 kΩ...10,00 GΩ








































Range Resolution Accuracy
0,0...999,9 kΩ 0,1 kΩ ±(3% m.v. + 8 digits)
1,000...9,999 MΩ 0,001 MΩ ±(3% m.v. + 8 digits)
10,00...99,99 MΩ 0,01 MΩ ±(3% m.v. + 8 digits)
100,0...999,0 MΩ 0,1 MΩ ±(3% m.v. + 8 digits)
1,000...5,000 GΩ 0,001 GΩ ±(4% m.v. + 6 digits)
5,00...10,00 GΩ 0,01 GΩ ±(4% m.v. + 6 digits)

Continuity measurement of protective and equipotential conductors with the 200 mA current

Measuring range according to EN 61557 - 4: 0,10...1999 Ω


























Range Resolution Accuracy
0,00...19,99 Ω 0,01 Ω ±(2% m.v. + 3 digits)
20,0...199,9 Ω 0,1 Ω ±(2% m.v. + 3 digits)
200...999 Ω 1 Ω ±(4% m.v. + 3 digits)


  • Voltage on open terminals: <8 V

  • Output current at R <2 Ω: ISC >200 mA: ISC >200 mA

  • Compensation of test leads’ resistance

  • Unidirectional current flow


Low-voltage and resistance measurement




















Range Resolution Accuracy
0,0...199,9 Ω 0,1 Ω ±(3% m.v. + 3 digits)
200...1999 Ω 1 Ω ±(3% m.v. + 3 digits)


  • Voltage on open terminals: <8 V

  • Current for closed terminals 5 mA < ISC < 15 mA

  • Sound signal and green LED on when measured resistance < 30 Ω ± 50%

  • Compensation of test leads’ resistance,


Capacitance measurements




















Range wyświetlania Resolution Accuracy
1...999 nF 1 nF ±(5% m.v. + 10 digits)
1,00...9,99µF 0,01µF ±(5% m.v. + 10 digits)


  • Capacitance value displayed during the RISO measurement

  • For test voltages below 100 V and measured resistance below 10 MΩ, unspecified capacitance measurement error


Measurement of alternating and direct voltage




















Range Resolution Accuracy
0,0...299,9 V 0,1 V ±(2% m.v. + 6 digits)
300...600 V 1 V ±(2% m.v. + 2 digits)


  • Frequency range: 45...65 Hz
