Sonel Test Equipment

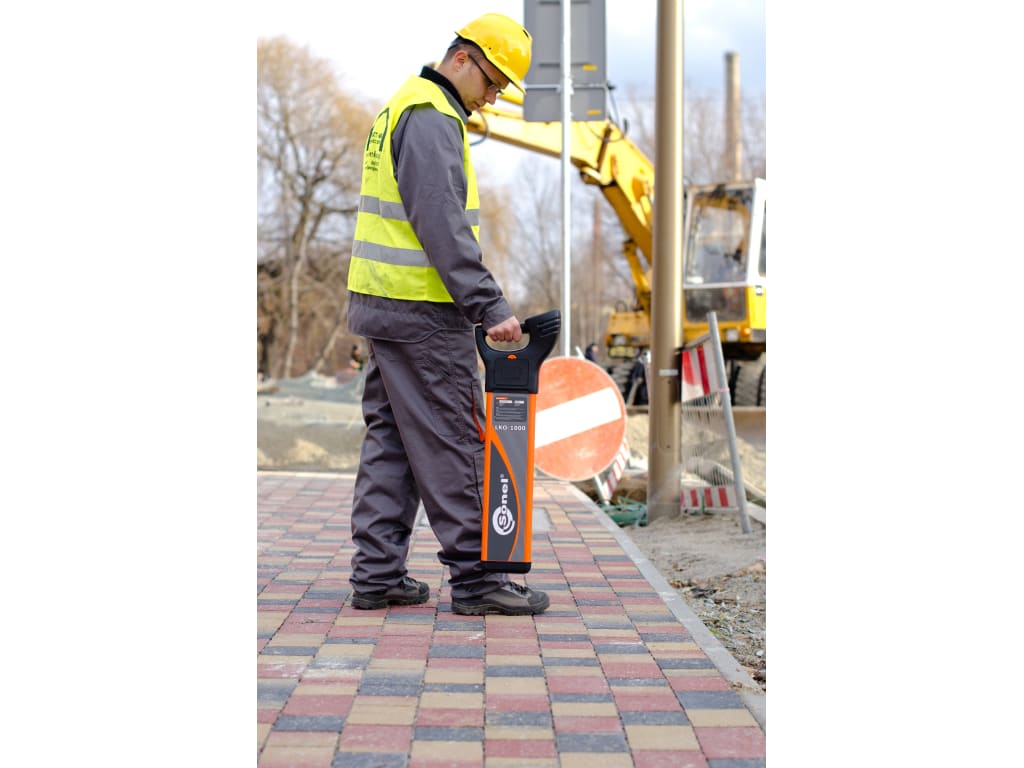

LKZ-1000 Cable Detector

LKZ-1000 Cable Detector

$3,216.25
$3,216.25
Sale Sold out
Shipping calculated at checkout.







Look before you dig!   The LKZ-1000 allows construction crews to:

  • Detect underground energized (live) wires

  • Detect de-energized underground wires

  • Trace metallic or non-conductive pipes

  • Trace a determined cable

  • Determine the depth of a cable

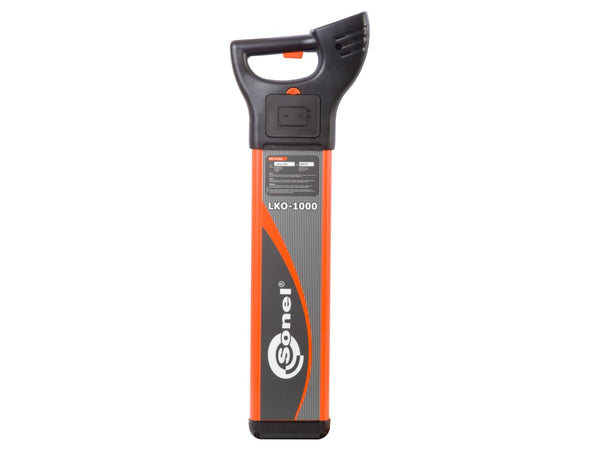

The LKZ-1000 cable & pipe locator consists of an improved LKN-1000 transmitter and the LKO-1000 receiver that together deliver significantly higher detection technology to:

  • Detect underground services at greater depths

  • Give more accurate depth estimation

  • Detect in the presence of high signal interference


LKZ-1000 Technology:

  • Four adjustable output levels with maximum output level of 1 W

  • Choice of 3 tracing signals, 8 kHz or 33 kHz, or at 8 kHz and 33 kHz together

  • Locates cables up to 3 m, 10 ft deep

  • Trace non-conductive pipelines using a “floating” probe

  • Transmitter detection of de-energized underground wires using a galvanized, inductive, or clamp-based connection

  • Trace metallic or non-conductive pipes using an additional probe

  • Location by connecting the transmitter directly to an object that is not live

  • Location by using an adapter that connects the transmitter to an AC outlet

--












Look before you dig!   The LKZ-1000 allows construction crews to:

  • Detect underground energized (live) wires

  • Detect de-energized underground wires

  • Trace metallic or non-conductive pipes

  • Trace a determined cable

  • Determine the depth of a cable


The LKZ-1000 cable & pipe locator consists of an improved LKN-1000 transmitter and the LKO-1000 receiver that together deliver significantly higher detection technology to:

  • Detect underground services at greater depths

  • Give more accurate depth estimation

  • Detect in the presence of high signal interference


LKZ-1000 Technology:

  • Four adjustable output levels with maximum output level of 1 W

  • Choice of 3 tracing signals, 8 kHz or 33 kHz, or at 8 kHz and 33 kHz together

  • Locates cables up to 3 m, 10 ft deep

  • Trace non-conductive pipelines using a “floating” probe

  • Transmitter detection of de-energized underground wires using a galvanized, inductive, or clamp-based connection

  • Trace metallic or non-conductive pipes using an additional probe

  • Location by connecting the transmitter directly to an object that is not live

  • Location by using an adapter that connects the transmitter to an AC outlet


 Underground cable locator
UUser-friendly Design Features:

  • Compact and light-weight for less fatigue when operating for long periods

  • Sensibly located control buttons for hand operation

  • Easy-to-view backlit LCD with contrast + auto on-off

  • Clear visual and audio signals for easier operation

  • Automatic adjustment of detection sensitivity

  • 5 operating modes

  • Durable waterproof design for harsh outdoor conditions; protection rating of IP65

  • Self-test function to test the LKN-1000 before use

  • Shallow cable-depth warning indicator

  • Cable direction indication

  • Audio tones to facilitate locating or tracing,

  • Adjustment of transmitter power and frequency


Passive or Active Operating Modes:

  • Passive POWER with 50 Hz or 60 Hz – enables location of live wires and cables

  • Passive RADIO (15-30 kHz) – for quick, non-selective location of an underground metallic installation

  • Active with transmitter (8 kHz and 33 kHz), enables detection using the inductive mode; just place the transmitter over the traced object


Explanation of Detection and Location Modes 		 Locating cables and pipes underground
