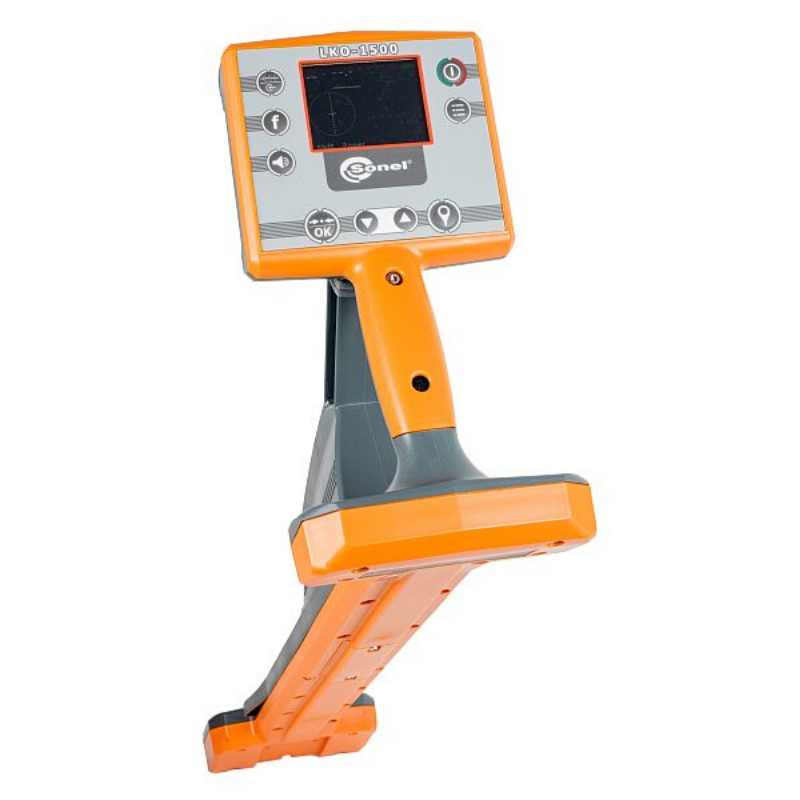

LKO-1500 Receiver

LKO-1500 Receiver

$3,360.00
$3,360.00
Sale Sold out
Shipping calculated at checkout.








  • LKZ Terminal is a dedicated program for handling data stored in LKO-1500. It allows you to map a route from your location and read the data stored in the receiver.

  • Operating in a wide frequency range:

  • Passive mode (50 Hz-60 Hz, 100 Hz, 300 Hz, 550 Hz, 1450 Hz),

  • Ether (48 Hz-14 kHz),

  • Radio (10 kHz-36 kHz),

  • Active mode (273 Hz, 491 Hz, 526 Hz, 982 Hz, 1024 Hz, 2000 Hz, 2048, 8440 Hz,  8928 Hz, 9820 Hz, 10000 Hz, 32768 Hz),

  • Cable earth fault detection (frame A or DKI probe),

  • Power supply from removable battery (5 LR6 AA),

  • Graphic display of the position, depth of the object and direction of current,

  • Location depth up to 6 m +/- 0,1 m

  • Dimensions: 700x300x140 [mm],

  • Operating temperature range from -20°C to + 55°C.

  • Determine the direction of cable placement, position of the cable relative to the receiver axis (has a compass function).

  • Determine the current and residual depth of the cable, both in active mode (with transmitter) and in passive mode (without transmitter).

  • Save the route of placing an object on the map. Memory up to 10,000 coordinates.

  • Possibility of finding damaged cable locations.









--

Receiver:


  • work in a wide frequency range - mode:

  • passive (50 Hz-60 Hz, 100 Hz, 300 Hz, 550 Hz, 1450 Hz),

  • ether (48 Hz - 14 kHz),

  • radio (10 kHz-36 kHz),

  • active 273 Hz, 491 Hz, 526 Hz, 982 Hz, 1024 Hz, 2000 Hz, 2048, 8440 Hz, 8928 Hz, 9820 Hz, 10000 Hz, 32768 Hz,

  • cable damage detection - ground fault (A frame or DKI probe),

  • power supply from replaceable battery or battery (5 LR6 AA),

  • graphic display showing the position, depth of the object and current direction,

  • location depth up to 6 m +/- 0.1 m,

  • dimensions: 700x300x140 [mm],

  • operating temperature range from -20 ° C to + 55 ° C.
