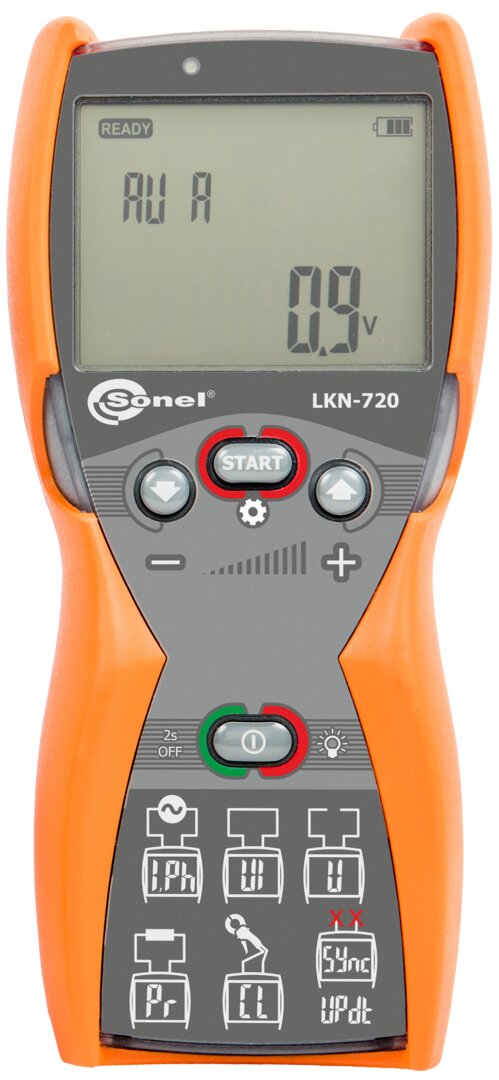

LKN-720 Transmitter

LKN-720 Transmitter

$992.00
$992.00
Sale Sold out
Shipping calculated at checkout.



Description





Special features

  • 4 codes of the transmitted signal.
  • Transmission of information about the transmitter settings and battery charge level.
  • Measurement of voltage at the object to 500 V RMS.
  • Three levels of amplification.
  • Automatic or manual selection of operation modes.
  • Screen backlight for work in dark.

Application

Locating power points and switches in buildings

Specially modulated and coded signal generated by the LKN-720 transmitter allows to locate and identify sockets and switches in energized and de-energized circuits.







Technical data





Technical specification

Parameter Description
Insulation type acc. to EN 61010-1 double
Measurement category acc. to EN 61010-1 III 600 V
Ingress protection rating acc. to EN 60529 IP67
Power supply 4 x AA alkaline batteries
or 4 x Ni-MH rechargeable batteries
Maximum operating voltage 500 V RMS
Operating temperature -10°C...+50°C | 14°F...122°F







Weight and dimensions

Parameter Value
Net weight (kg) 0.7
Package weight (kg) 1.4
Package width (cm) 29
Package height (cm) 18
Package length (cm) 29







Accessories included with the meter

Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue

NO. CAT. WAPRZ1X2BUBB

1 pcs

Test lead 1 kV (banana plugs) red 1.2 m

NO. CAT. WAPRZ1X2REBB

1 pcs

Test lead 20 m 1 kV (on a reel, banana plugs) red

NO. CAT. WAPRZ020REBBSZ

1 pcs

Pin probe CAT III/1000V CAT IV/600V (banana socket) red

NO. CAT. WASONREOGB1

1 pcs

Pin probe, blue 1 kV (banana socket)

NO. CAT. WASONBUOGB1

1 pcs

Earth contact test probe (rod), 25 cm

NO. CAT. WASONG25

1 pcs

K-02

Crocodile clip, blue, 1 kV, 20 A

NO. CAT. WAKROBU20K02

1 pcs

K-02

Crocodile clip, red, 1 kV, 20 A

NO. CAT. WAKRORE20K02

1 pcs

M-1

Hanging straps

NO. CAT. WAPOZSZE4

1 pcs
