• 4 codes of the transmitted signal.
• Transmission of information about the transmitter settings and battery charge level.
• Measurement of voltage at the object to 500 V RMS.
• Three levels of amplification.
• Automatic or manual selection of operation modes.
• Screen backlight for work in dark.

Application

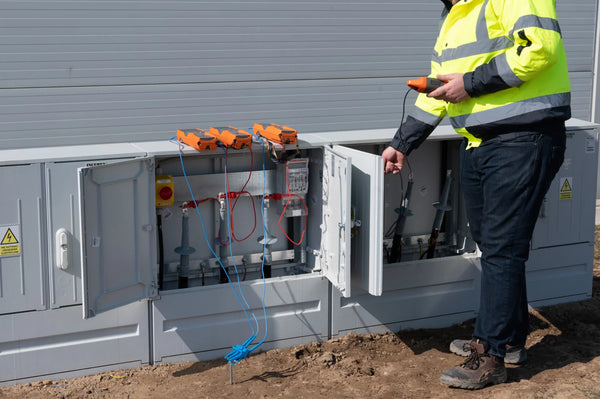

Locating power points and switches in buildings

Specially modulated and coded signal generated by the LKN-720 transmitter allows to locate and identify sockets and switches in energized and de-energized circuits.

Technical specification

Parameter	Description
Insulation type acc. to EN 61010-1	double
Measurement category acc. to EN 61010-1	III 600 V
Ingress protection rating acc. to EN 60529	IP67
Power supply	4 x AA alkaline batteries or 4 x Ni-MH rechargeable batteries
Maximum operating voltage	500 V RMS
Operating temperature	-10°C...+50°C | 14°F...122°F

Weight and dimensions

Parameter	Value
Package width (cm)	50
Package height (cm)	35
Package length (cm)	53

Accessories included with the meter

Test lead 1.2 m CAT III/1000V CAT IV/600V (banana plugs) blue

NO. CAT. WAPRZ1X2BUBB

3 pcs

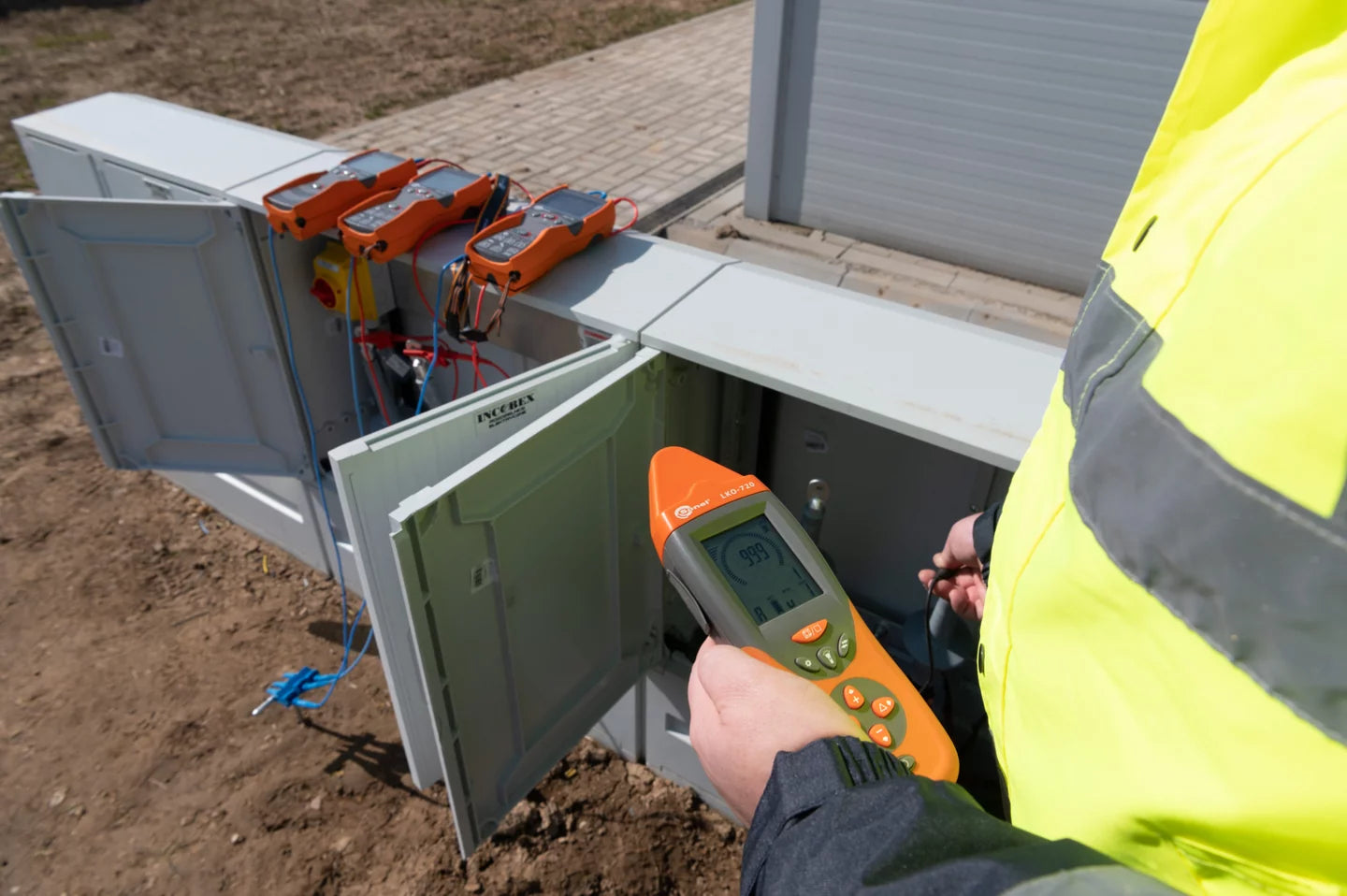

LKN-720

Transmitter

NO. CAT. WMGBLKN720

3 pcs

Test lead 1 kV (banana plugs) red 1.2 m

NO. CAT. WAPRZ1X2REBB

3 pcs

Pin probe CAT III/1000V CAT IV/600V (banana socket) red

NO. CAT. WASONREOGB1

3 pcs

Pin probe, blue 1 kV (banana socket)

NO. CAT. WASONBUOGB1

3 pcs

Earth contact test probe (rod), 25 cm

NO. CAT. WASONG25

1 pcs

L-2

Carrying case

NO. CAT. WAFUTL2

1 pcs

K-02

Crocodile clip, blue, 1 kV, 20 A

NO. CAT. WAKROBU20K02

3 pcs

K-02

Crocodile clip, red, 1 kV, 20 A

NO. CAT. WAKRORE20K02

4 pcs

M-1

Hanging straps

NO. CAT. WAPOZSZE4

3 pcs
