Sonel Test Equipment

KT-800M Thermal Imager

KT-800M Thermal Imager

Regular price $49,693.00
Regular price Sale price $49,693.00
Sale Sold out
Shipping calculated at checkout.







Description



Sonel KT-800M IR Fever Warning System can be applied to mass fever screening in crowded public places, which helps detect people with potential fever. It may contain or limit the spread of diseases through identification of infected individuals showing fever symptoms. Sonel KT-800M combines advanced technology such as thermographic human temperature detection and AI intelligent face tracking which makes the equipment accurate and easy to use. Sonel KT-800M is equipped with various powerful functions. Multi-target tracking ensures that no target is missed. Custom warning zones and high-temperature shielding settings help avoiding interference from other high-temperature objects. When a feverish person is detected, the system supports automatic warning, tracking and photo taking for storage. It also supports video recording. Convenient for query and classify management.

Application

Large-scale temperature screening at airports, railway stations, subway stations, hospitals, supermarkets, factories, schools and other places with large flow of people to control and reduce the spread of diseases with fever symptom, such as Novel Coronavirus, Ebola, SARS or Zika.

Mass fever screening

  • Blackbody - real-time temperature calibration

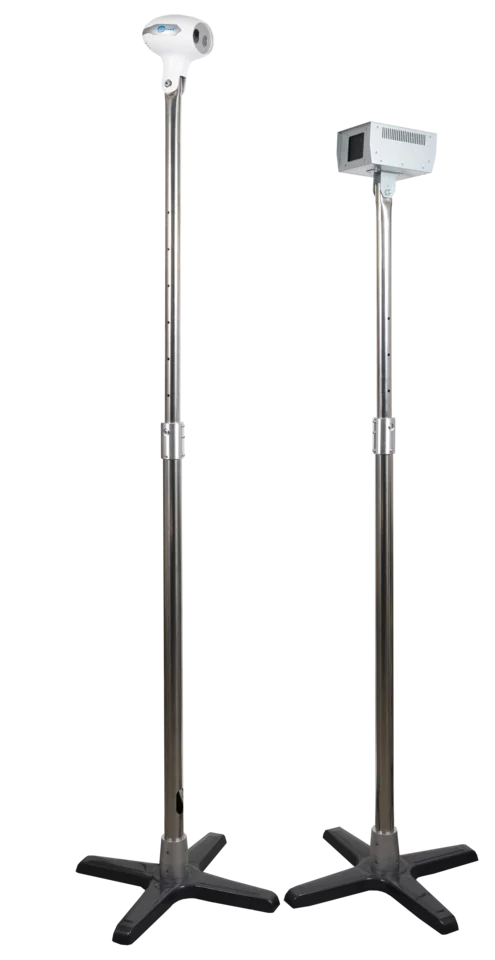

  • Tripod - stable position at all times
  • Dedicated PC - supervision on the post
  • Alarm database - spot-and-save

Overview

Sonel KT-800M IR Fever Warning System can be applied to mass fever screening in crowded public places, which helps detect people with potential fever. It may contain or limit the spread of diseases through identifi cation of infected individuals showing fever symptoms. Sonel KT-800M combines advanced technology such as thermographic human temperature detection and AI intelligent face tracking which makes the equipment accurate and easy to use.

Sonel KT-800M is equipped with various powerful functions. Multi-target tracking ensures that no target is missed. Custom warning zones and high-temperature shielding settings help avoiding interference from other high-temperature objects. When a feverish person is detected, the system supports automatic warning, tracking and photo taking for storage. It also supports video recording. Convenient for query and classify management.

Application

Large-scale temperature screening at airports, railway stations, subway stations, hospitals, supermarkets, factories, schools and other places with large flow of people to control and reduce the spread of diseases with fever symptom, such as Novel Coronavirus, Ebola, SARS or Zika.

Features

  • 400 x 300 px infrared uncooled Vox detector
  • Automatic focus on a person's face
  • Warning sound alarm when a person with fever is detected
  • Accurate single-point and multi-point high temperature tracking and warning
  • AI deep learning algorithm based on neural network provides more accurate temperature detection and lower false warning rate
  • Real-time temperature calibration with blackbody ensures high accuracy
  • Stand-type, easy to deploy, equipped with PC with powerful analysis software













Technical data





Parameter Description

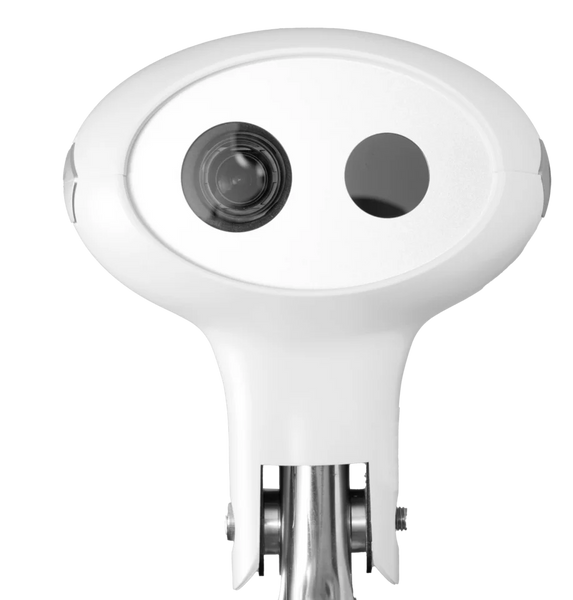

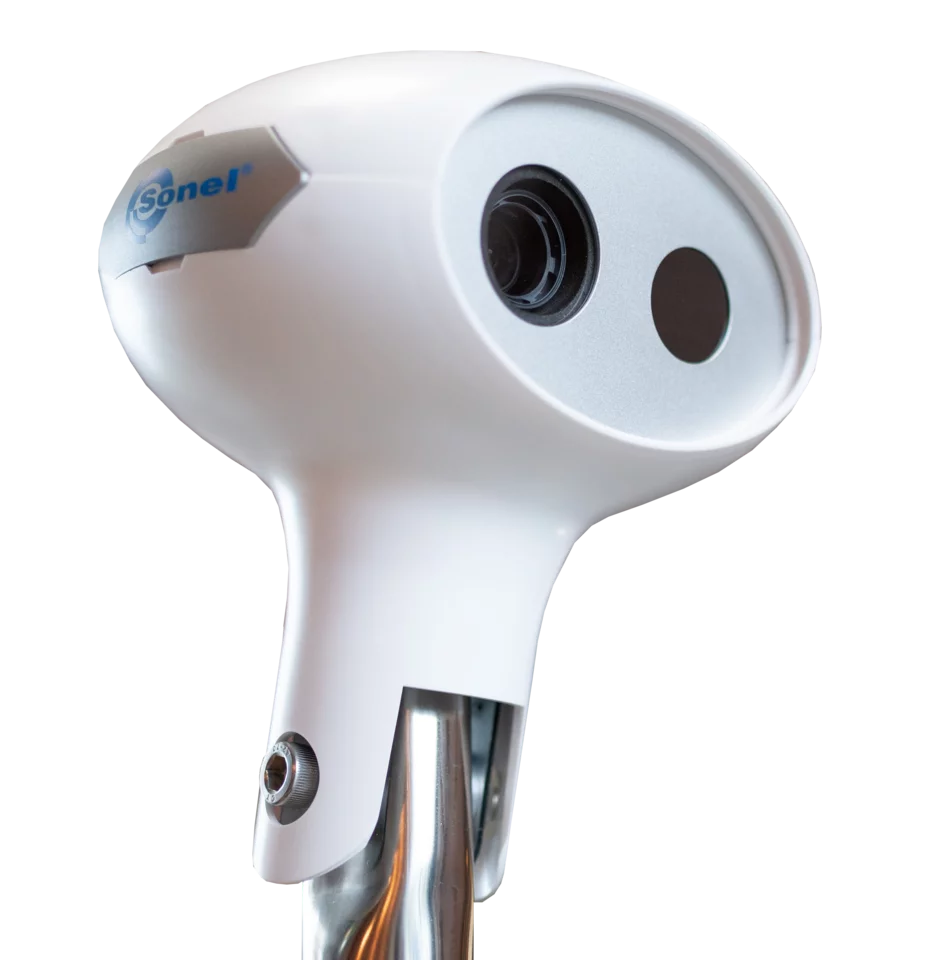

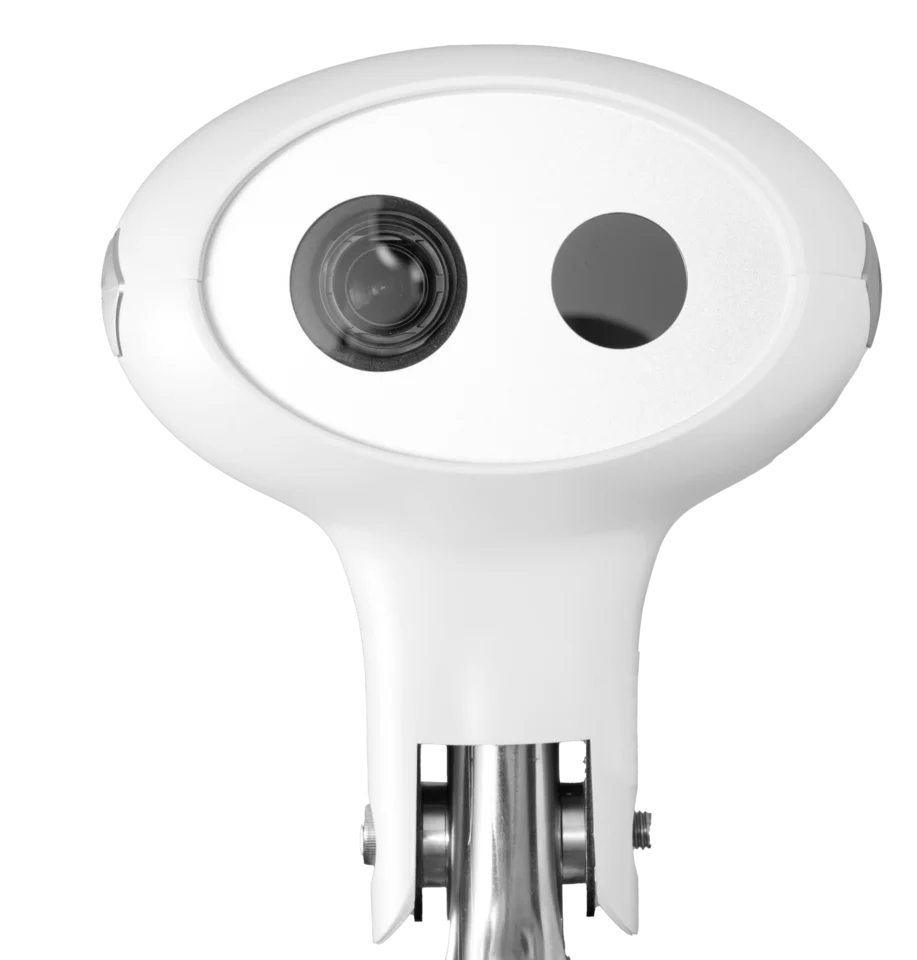

Thermal imager
Detector resolution 400 x 300
Detector 17 μm
Frame rate 25 Hz
Sensitivity ≤ 40 mK
Lens (field ofvision/ focal distance) 38° x 28°/ 9.7 mm
Accuracy ≤ ±0.3°C | 0.5°F
(ambient temperature 16°C...32°C)
Measurement range -10...+50°C | 14...122°F
Calibration Built-in shutter and external black body, automatic calibration after selecting mode
Visual camera
Resolution 2 MPix
Frame rate 25 Hz
Functions
Parameter settings Warning switch and warning threshold value, number of warning targets,warning photos automatic clearing, shielding fixed high temperature objects
Face tracking Intelligent face tracking, Supported from V 1.0.9.0
Real-time preview Real-time preview of visible and thermal image
Real-time spot temperature detection Real-time temperature monitoring at any point in the field of view
Automatic tracking Support automatic tracking for elevated temperatures
Automatic warning Automatic tracking, warning and photo capturing for storage when people withfevers are identified; Warning while the Black Body is blocked
Historical records Support query, classification and deletion of historical warning screenshots
Video recording Support. The software needs to be upgraded to V1.1.0.9, and equipped with NVR(NVR standard 4T hard disk), support GB28181 protocol to access third-party platforms
Network communication protoco HTTP, RTSP
Environmental conditions
Operating temperature -10...+50°C | 14...122°F
(ambient temperature 16°C...32°C) None
Storage temperature -20...+60°C | -4...140°F
Humidity < 90% (non-condensing)
Shock 30 g 11 ms, IEC60068-2-27
Vibration 10 Hz ~ 150 Hz ~ 10 Hz 0.15mm, IEC60068-2-6

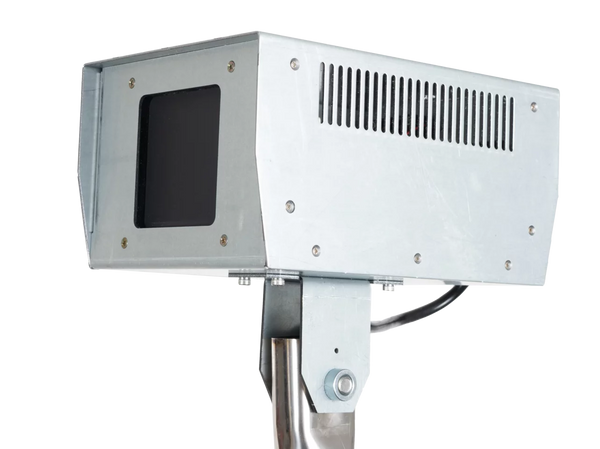

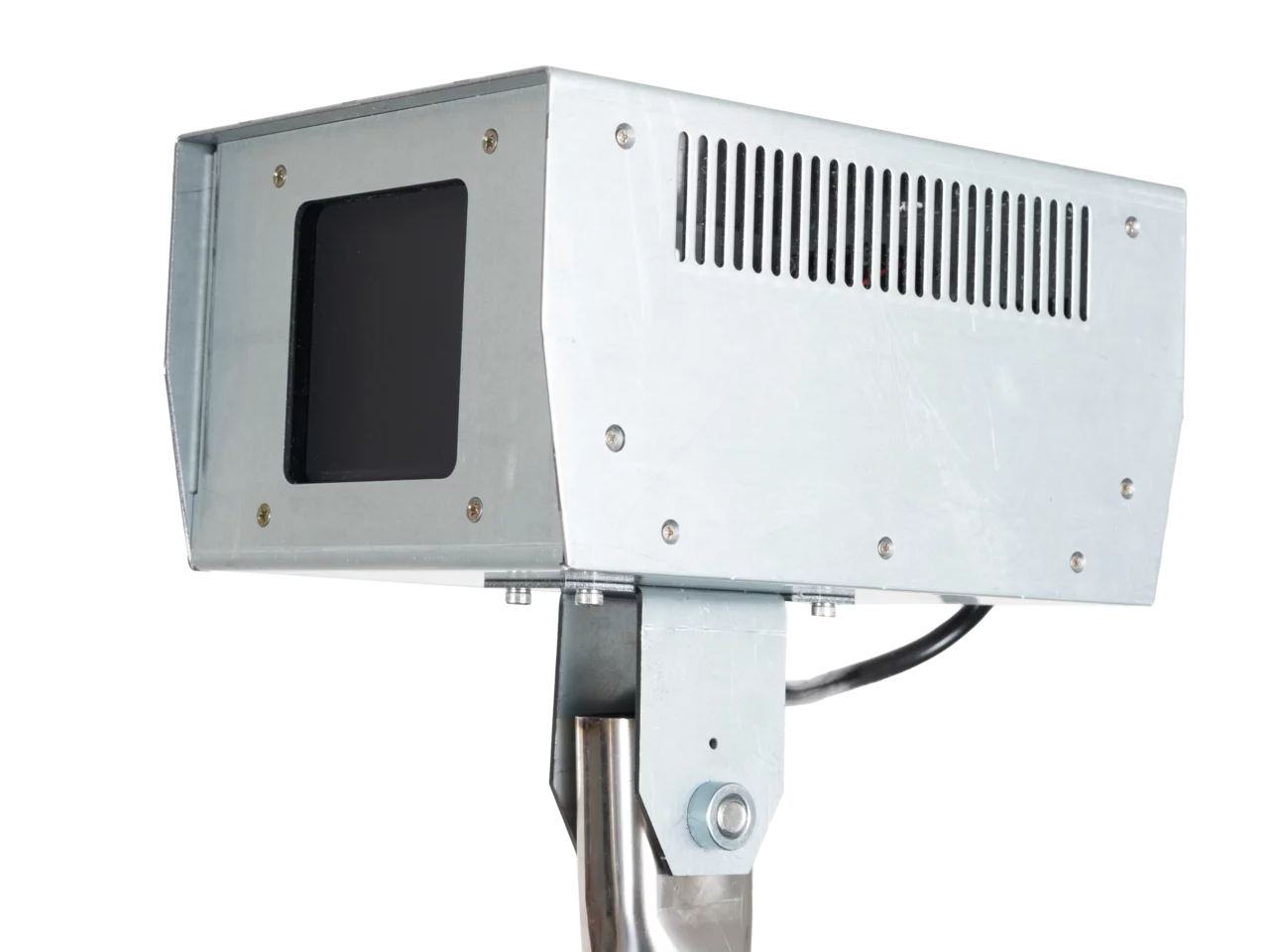

Black body
Black body target surface uniformity ≤0.1°C | 0.2°F
Temperature stability accuracy ≤ ±0.2°C | ±0.4°F (single point)
Camera head interface
Network interface Two-way, visible light 100 M, infrared 1000 M
Camera head power
Input voltage DC 12 V
Input power ≤ 12 W
