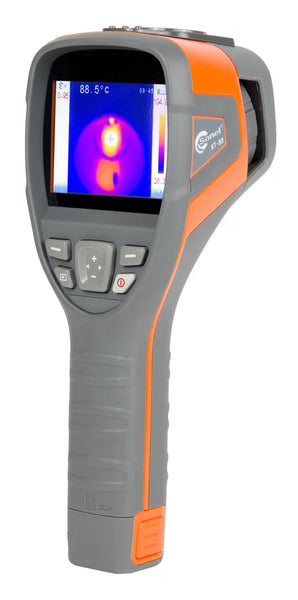

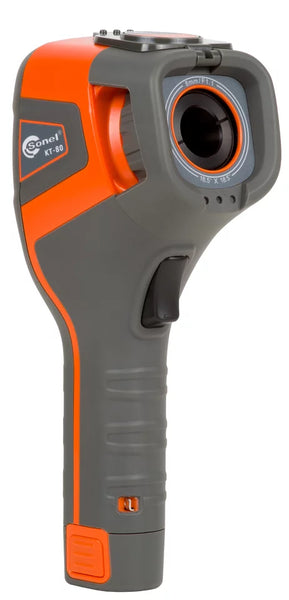

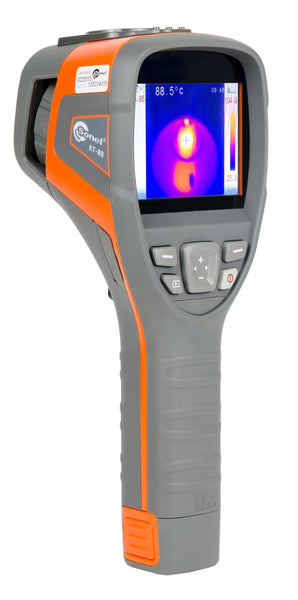

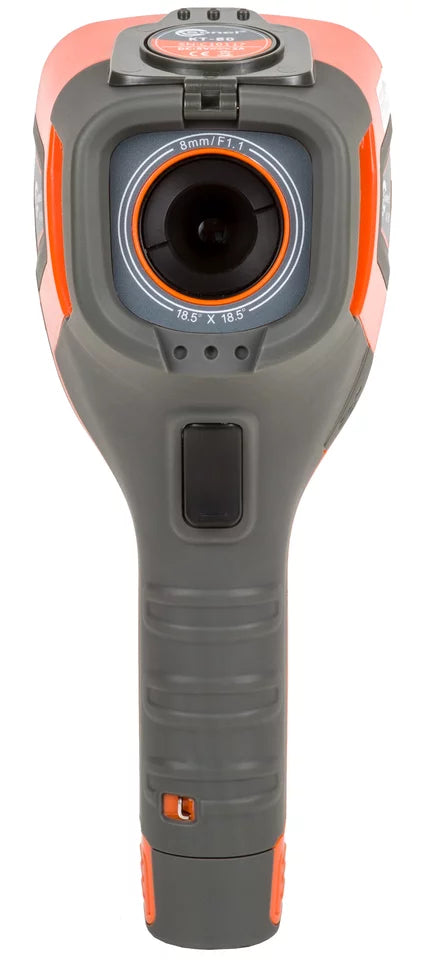

KT-80 Thermal Imager

KT-80 Thermal Imager

$1,042.50
$1,042.50
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION



Sonel KT series is an efficient, budget-friendly and professional infrared camera.
This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes in an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.

Features and benefits of  Sonel KT:


    • Friendly UI, easy to use without training,

    • Affordable as entry level diagnostic tool,

    • Removable large capacity Li-ion battery,

    • 4 hour working time,

    • 3.5'’ large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight,

    • Rugged and compact design, metal internal structure,

    • Standard Micro USB interface for data transmission and charging,

    • Wi-Fi connection (Optional).


Applications:

    • Electric inspection and diagnosis,

    • Building inspection and diagnosis,

    • Mechanical equipment maintenance,

    • Manufacturing process service,

    • Petrochemical industry maintenance.


--

















































































































































SPECIFICATIONS KT-80
Lens 8 mm
Detector type <80 x 80
Spectral range 8 to 14 μm
Focus Manual
Focal length / FOV 8 mm / 18.5°X 18.5°
Thermal sensitivity < 0.08°C @30°C
Digital zoom  -
Palette 4
Interface micro USB
Display specifications
Display Hi-brightness LCD
3.5'’ LCD (resolution 320 x 240 px)
Triple brightness adjustable
Frame 50 Hz
Temperature measurement parameters
Accuracy ±2°C (3.6F) or ±2%
Temp. range 0°C to +250°C / 32F to 482F
Measurement parameter calibration Emissivity adjustable (0.01-1.00)
Measurement functions
Point Center point temperature
Max Area auto tracking
Min Area auto tracking
Format file / storage JPG / removable SD memory card
Power system
Battery type 3.7 V 4200 mAh Li-Ion
Charging system In camera charging or external battery charger (option)
Power adapter 110/230 VAC,50/60 Hz
Battery operating time up to 4 hours
Other technical data
Enclosure protection IP43
Dimensions 103 mm x 98 mm x 258 mm / 4.05" x 3.85" x 10.15"
Weight 755 g / 1.66 lbs
Operating temperature -10°C to 50°C / 14F to 122F
Storage temperature -20°C to 60°C / -4F to 140F
Humidity 10% to 95 without condensation
Shock 25G, IEC 68-2-29
Vibration 2G, IEC 68-2-6
