| Parameter | Description |
|---|---|
| Detector resolution | 640 x 480 / 17 μm |
| Spectral range | 7.5~14 μm |
| Thermal sensitivity | 35 mK |
| Lens (field of view / focal length / instantaneous field of view / min. focus distance) | |
| • standard | 24.6° x 18.5° / 25 mm / 0.68 mrad / 0.3 m |
| • wide angle | 45.4° x 34.8° / 13 mm / 1.31 mrad / 0.15 m |
| • telephoto | 11.3° x 8.5° / 55 mm / 0.31 mrad / 1.5 m |
| • ultra-telephoto | 7.3° x 5.5° / 85 mm / 0.2 mrad / 4 m |
| • macro | 23.3 mm x 17.5 mm / 67 mm / - / 37.5 μm |
| • high temp | 24.6° x 18.5° / - / - / - |
| Display | 5”, 1280 x 720 high brightness, LCD touchscreen |
| Viewfinder | 1280 x 960 LCOS |
| Image modes | IR / Visual / Infrafusion MIF / PiP |
| Digital zoom | 1…35 |
| Temperature range | Range 1: -40°C…150°C Range 2: 100°C…800°C Optional: 700°C…2000°C |
| Accuracy | ±1°C or ±1% of reading |
| Image analysis modes | 16 points, 16 lines, 16 areas. Temperature indication: min, max, average. Isotherm. Temperature alarm. Smart stroke. |
| Palettes | 12 |
| Super-resolution | 4x, 768 x 576 |
| Panoramic images | √ |
| Emissivity coefficient | Selectable from 0.01 to 1.00 |
| Measurement adjustment | Auto-adjustable distance, relative humidity, ambient temperature (reflected) |
| File format | JPG |
| IR image annotations | Additional visual photos, voice, text recognition, text typing |
| Reports module | PDF reports |
| Video file format | MP4 (without temp. information), IRGD (including temp. information) |
| Built-in features | Visual camera 13 MPix, LED flashlight, GPS, laser pointer, laser rangefinder, microphone, speaker, digi-tal compass, light sensor |
| Wireless communication | Wi-Fi, Bluetooth |
| Storage | Built-in memory (64 GB), SD card, cloud service |
| Interface | SD card slot (max. 64 GB), LAN 1 Gb/s, micro HDMI, USB type C (data transfer only), tripod |
| Power supply | Li-ion battery (4 h of continuous operation), built-in charger, AC adapter 110-230 V, 50/60 Hz |
| Operating temperature | -15°C…+50°C | 5°F…122°F |
| Storage temperature | -40°C…+70°C | -40°F…+158°F |
| Humidity | 10%...95% |
| Shock/Vibration | 30g 11 ms (IEC 60068-2-27) |
| Ingress protection | IP54 |
Sonel Test Equipment

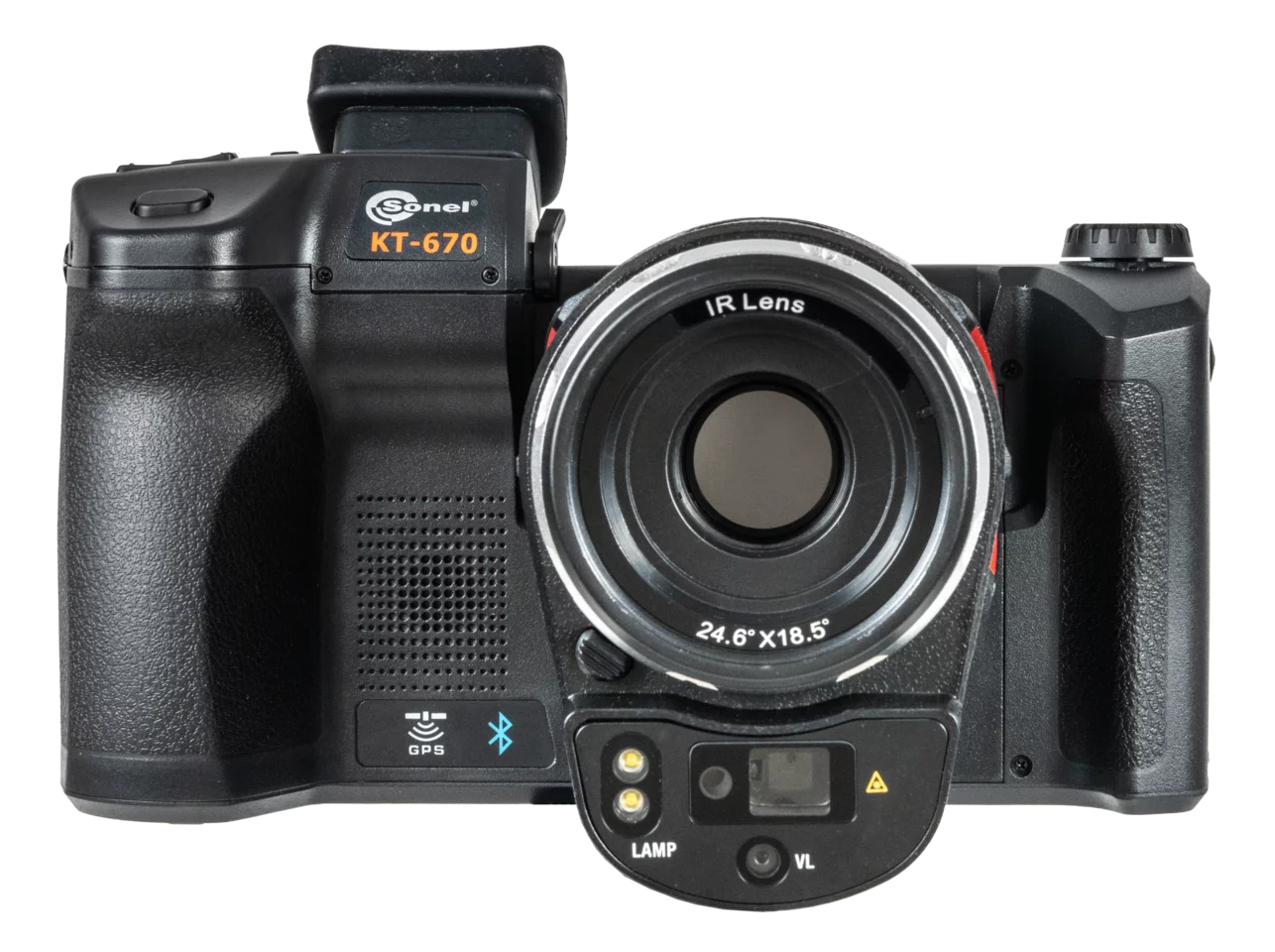

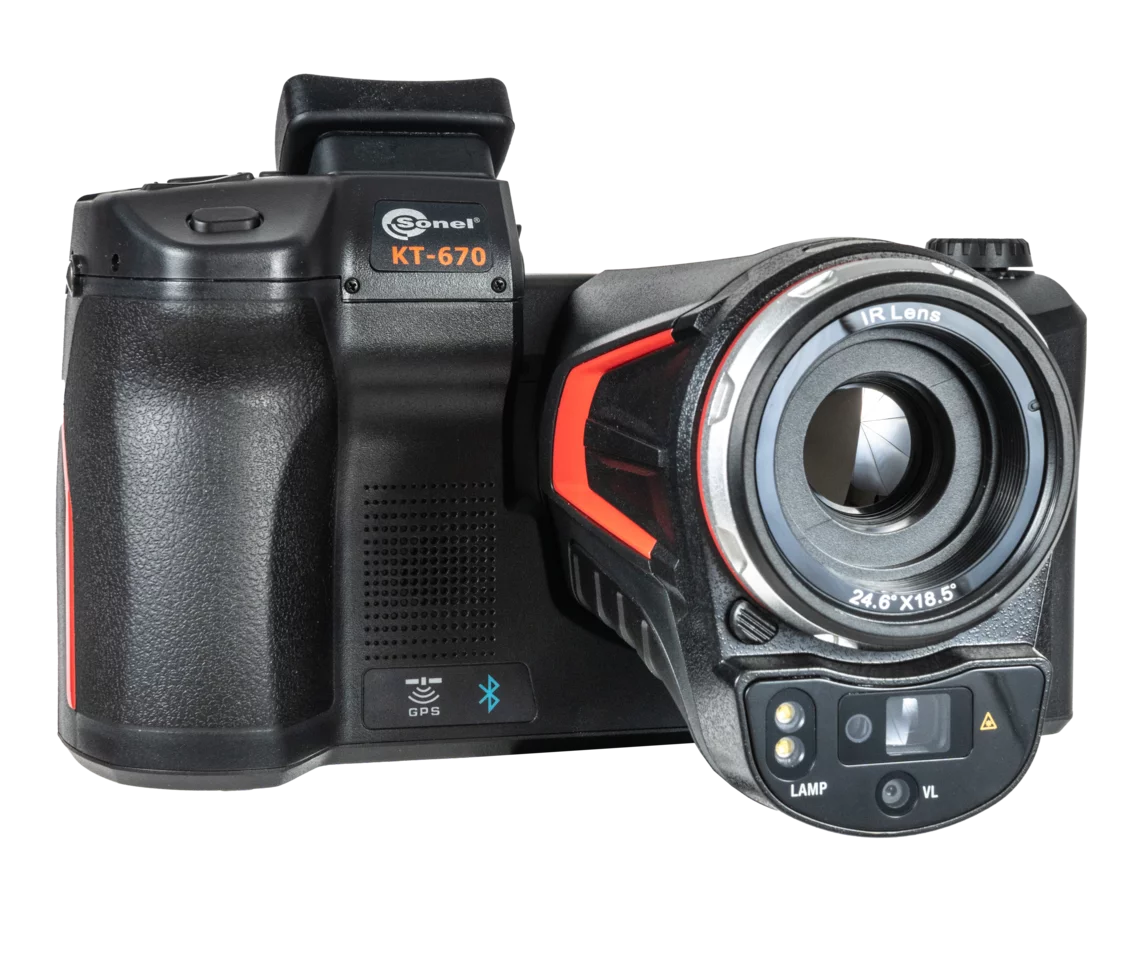

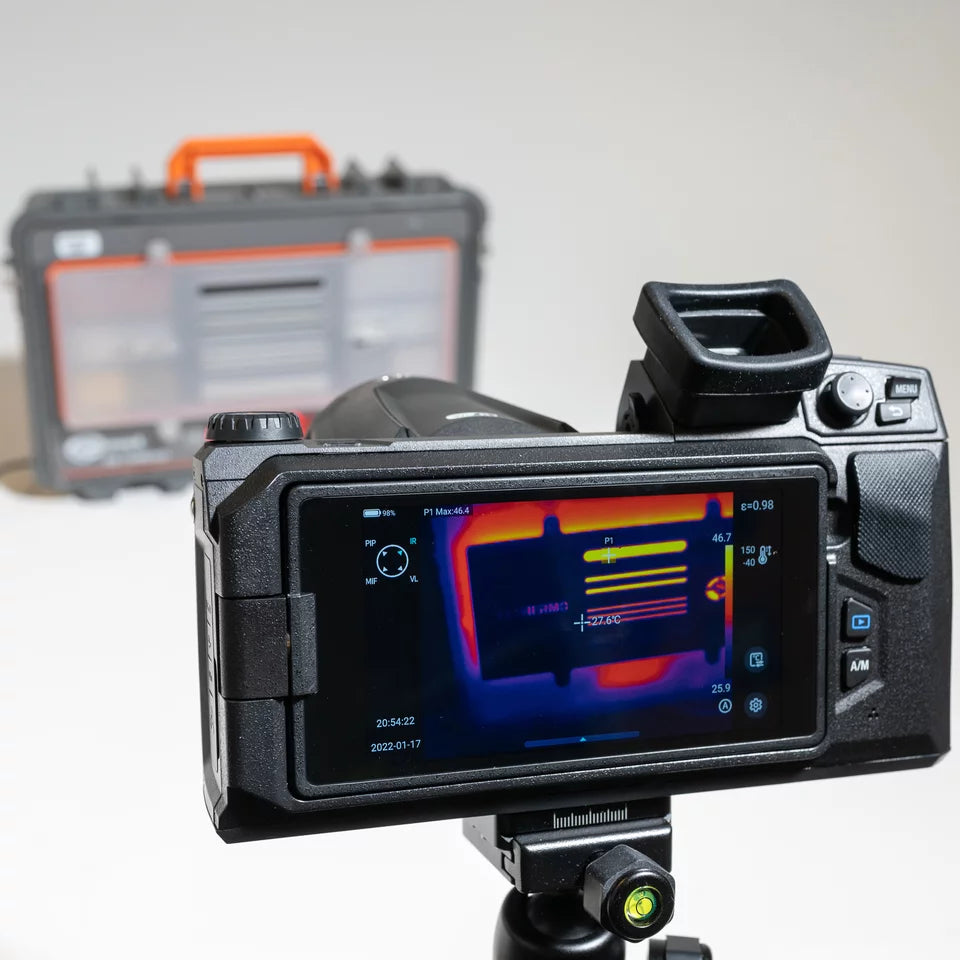

KT-670.1 Thermal Imager / 25mm lens
KT-670.1 Thermal Imager / 25mm lens
Regular price
$23,500.00
Regular price
Sale price
$23,500.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Heavyweight for thermography
Behold the highest class of thermal imagers that offers temperature measurements of substantial accuracy. Robustly designed and constructed, they are ideally suited for:
- troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,
- monitoring the thermal performance of industrial manufacturing processes,
- identifying overheating of mechanical and electro-mechanical components,
- inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,
- locating hidden heat sources (of people, animals, objects) in dark or low-light conditions.

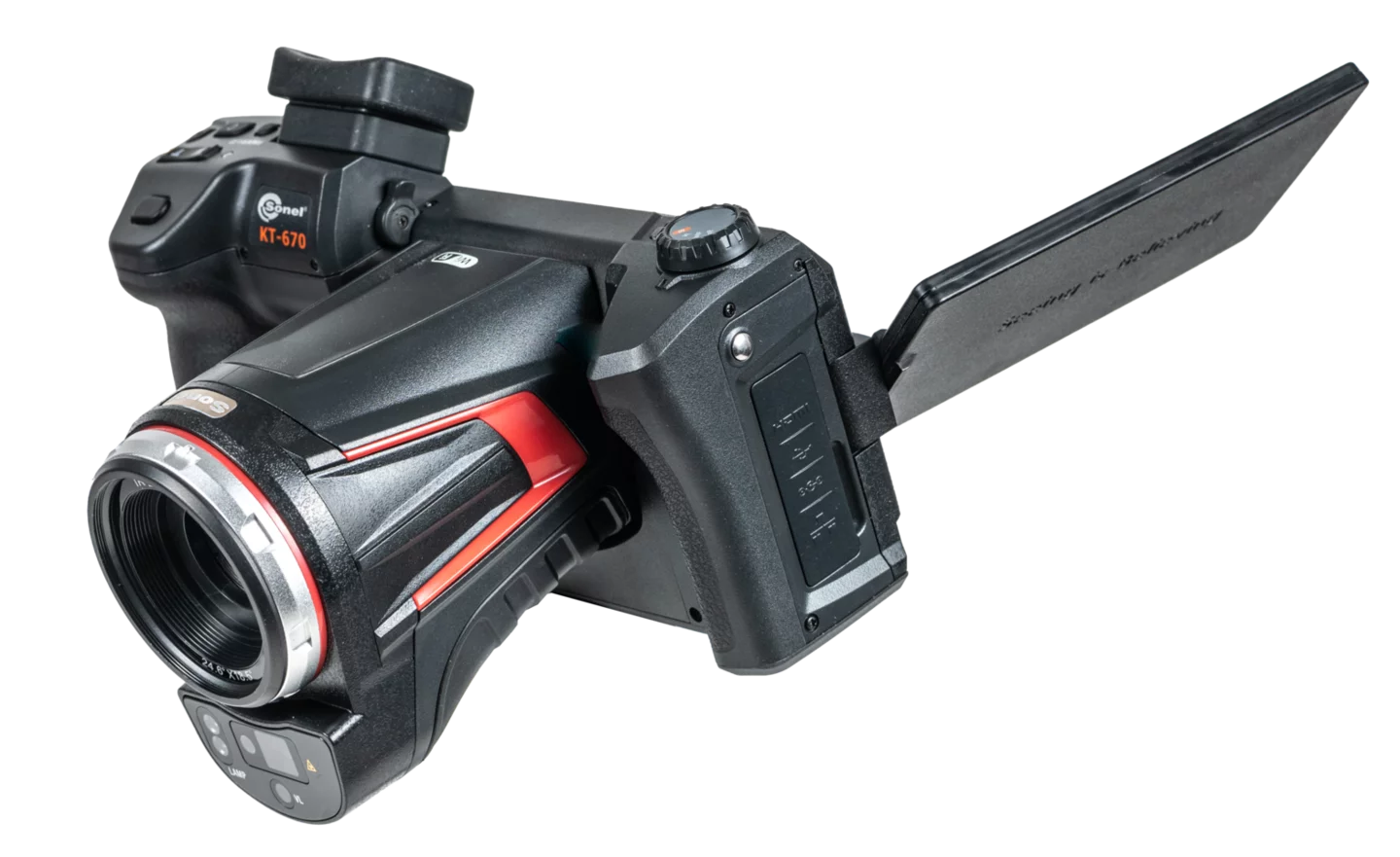

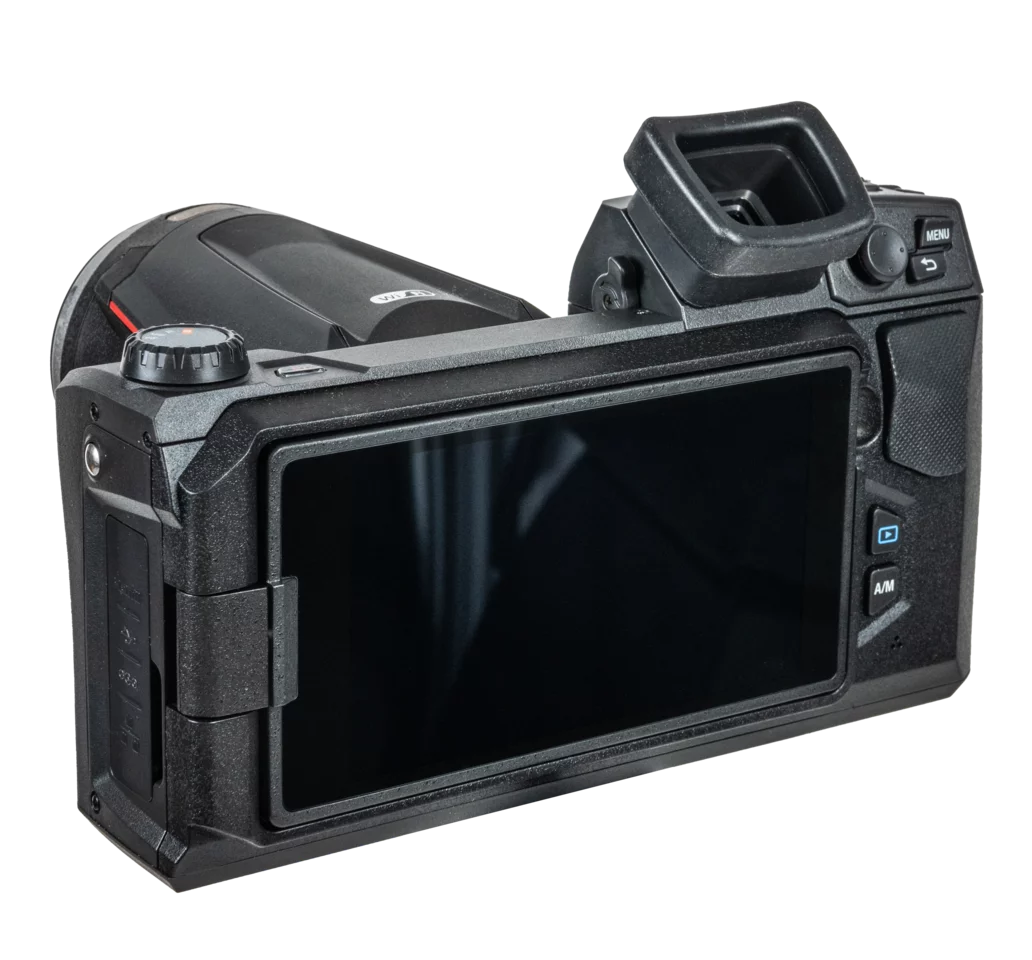

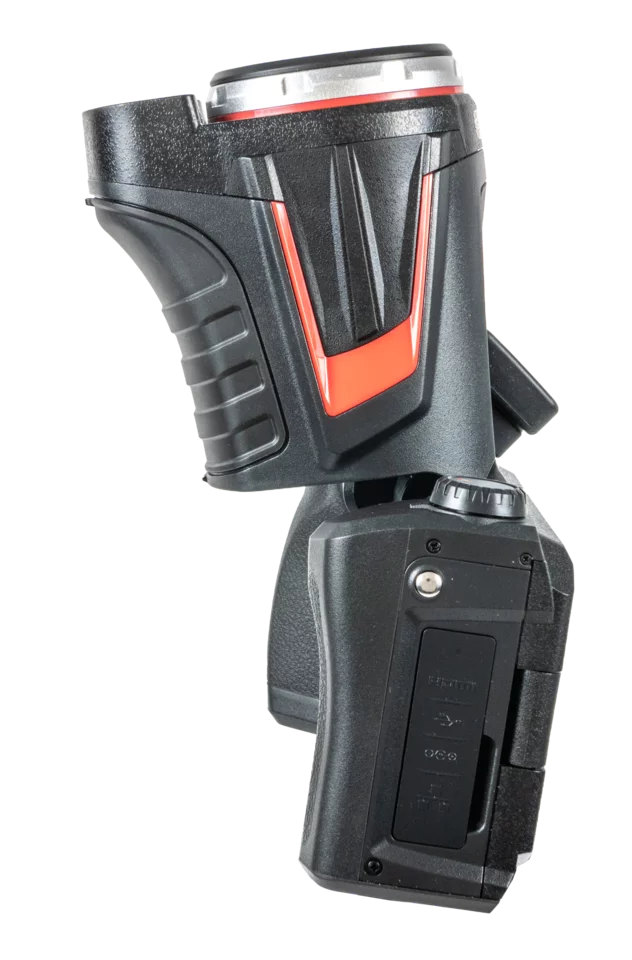

The touchscreen as well as the lens swivel independently to view objects of interest that are difficult to access from any angle. The large number of functions, intuitive handling and excellent ergonomics make the KT-670 imagers perfect for every advanced thermographer.
Features
- Image files saved in JPG format (complete image data).
- Recording of IR videos (on SD memory card or computer hard disk).
- Built-in reports module.
- MIF image combining mode.
- Extensive image analysis tools.
- Built-in camera for capturing images within the visible light spectrum.
- Built-in: GPS, digital compass, LED flashlight, laser.pointer, laser rangefinder.
- Interfaces: USB type C, Wi-Fi, Gigabit Ethernet, micro HDMI, SD memory card slot, Bluetooth.
- Digital zoom.
- Interchangeable lenses that do not require calibration by the manufacturer.
Polish manufacturer of measuring instruments introduces the new high level cameras with many usable features, matched with a wide variety of IR lenses. A fully radiometric, high resolution cameras which records temperature at each point of the image. This cameras make shooting professional IR images fast and easy as never before. Everything closed in a durable, water and dust proof casing, small size and low weight. Can you expect more? Yes, and Sonel gives you more. More features, options and functions (compass, GPS, IR analysing functions, Wi-Fi reports printing, others). Additional we offer you fully free, professional but intuitive software for image editing and reports creating. You need only to enjoy the quality, professionalism and performance of new Sonel KT series.
- High resolution IR images up to 120,000 pixels (400x) and 307,200 pixels (640x480) alternative
- Visible light digital camera 5MP resolution with LED lamp provides sharp images regardless of lighting conditions
- 5 inch 720P high resolution LCD touch screen for better image clarity and easy operation
- Rotating LCD display up to 270" for easy viewing angle
- Rotating lens detents up to 70" for easy viewing angle
- 4x (10x for plus version) continuous zoom with auto/motorized focus
- Android based operation system with open platform for various APP developments and convinient program updating
- Powerful onboard analysis and reporting capabilities
- Multiple image presentation including IR visible, PIP and IR blending
- WiFi&Bluetooth wireless communication
- Optional high temperature range measuring up to 2000oC (3632oF) targeting electrical and industrial applications
- Optional 11o telephoto or 45o wide angle lens
--
Specifications
Weight and dimensions
| Parameter | Value |
|---|---|
| Net weight (kg) | 1.3 |
| Package weight (kg) | 6.7 |
| Package width (cm) | 21 |
| Package height (cm) | 35.5 |
| Package length (cm) | 46 |
