| Parameter | Value |
|---|---|
| Net weight (kg) | 1.2 |
| Package weight (kg) | 7.9 |
| Package width (cm) | 21 |
| Package height (cm) | 35.5 |
| Package length (cm) | 46 |
Ingress protection: IP 54
Data transmission: Bluetooth, LAN, USB, Wi-Fi
Display: touchscreen, graphic, color, backlit
Description

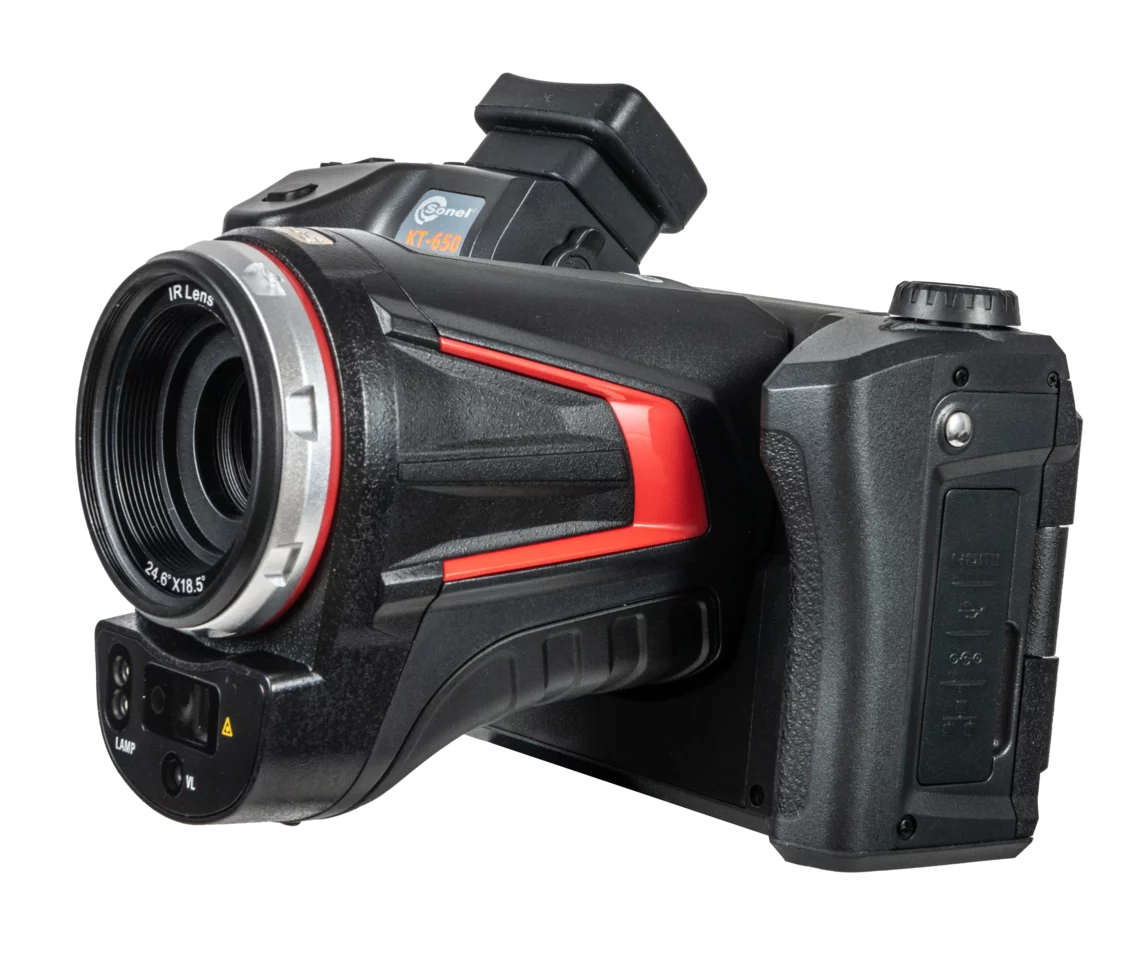

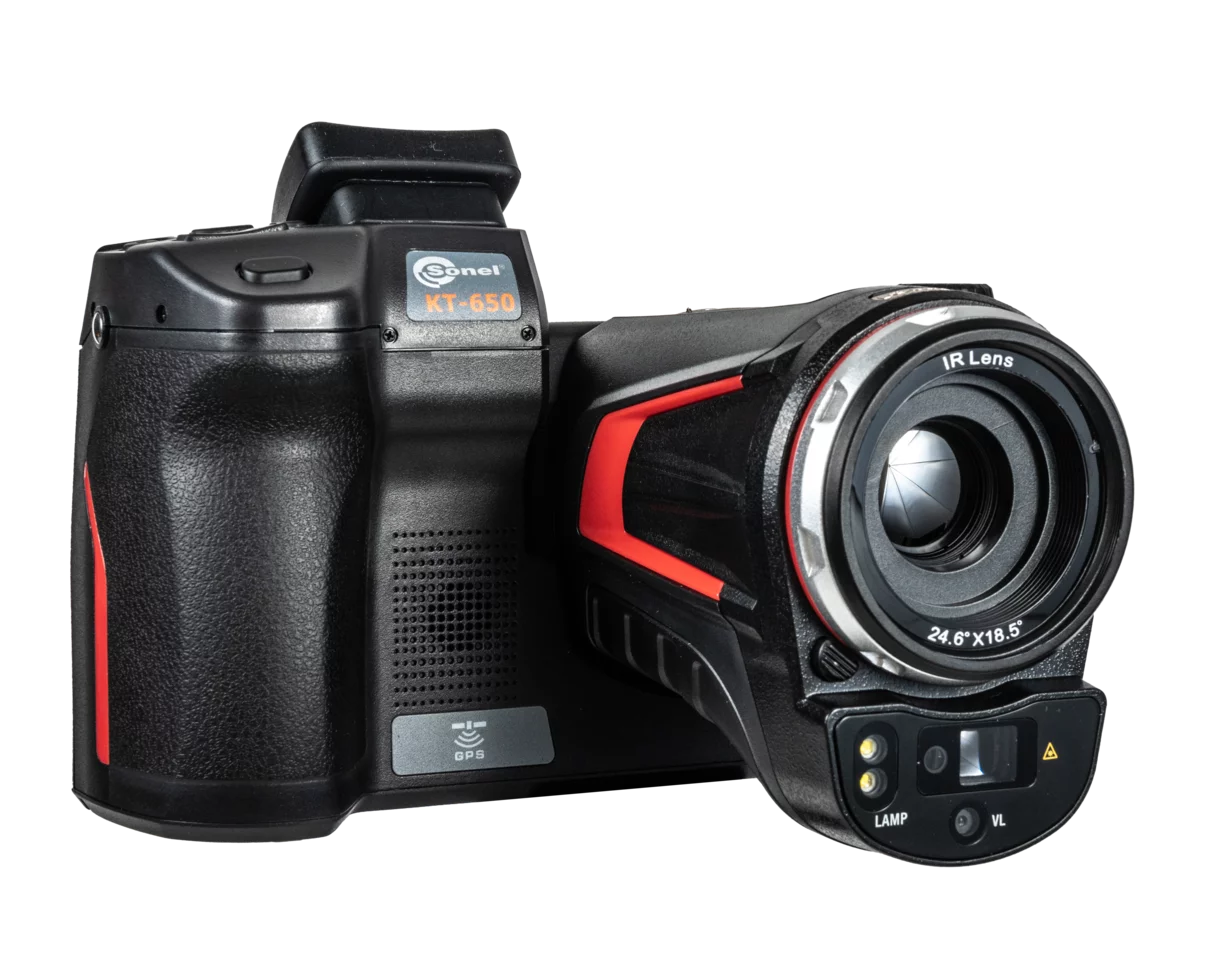

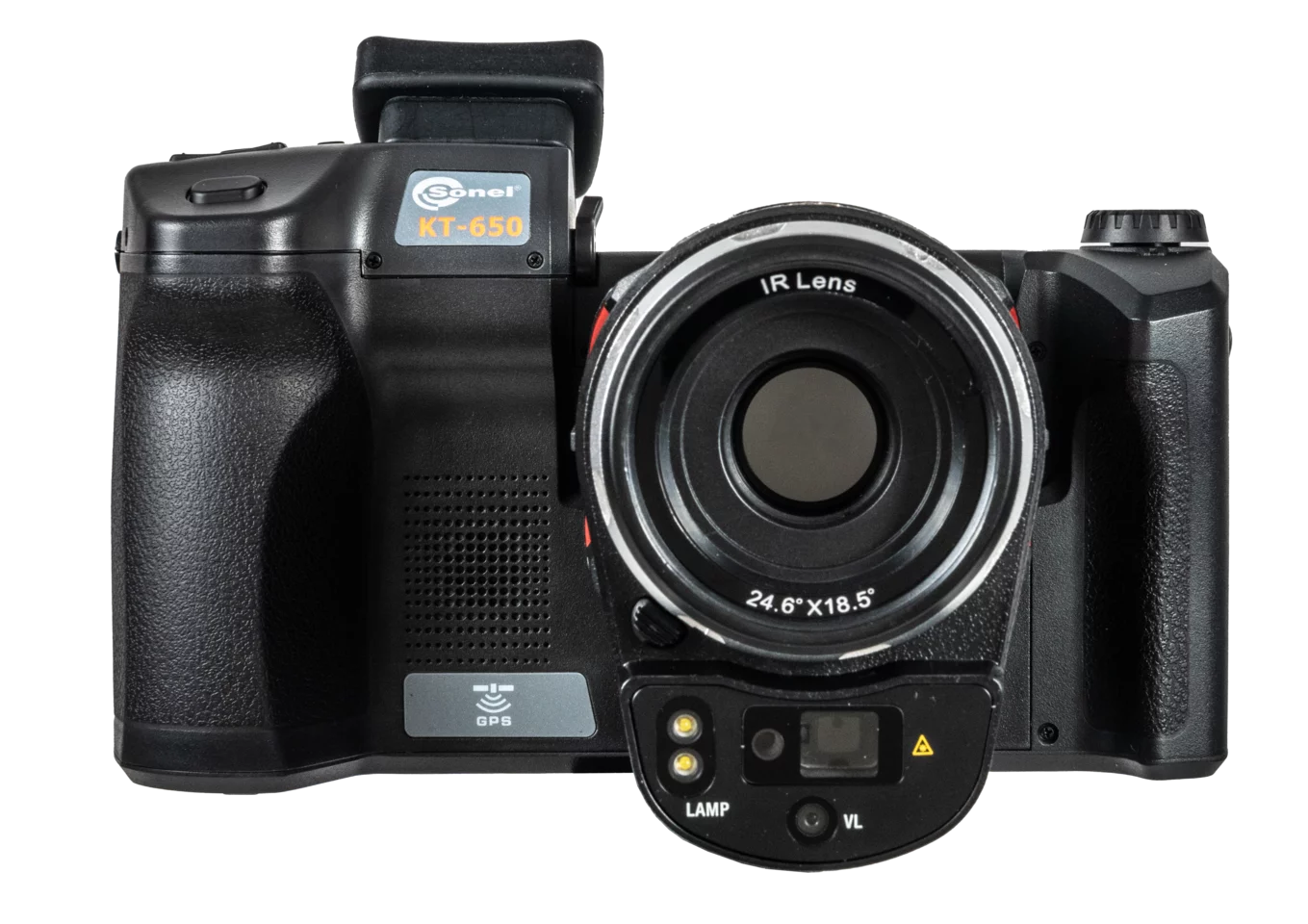

Heavyweight for thermography
Behold the highest class of thermal imagers that offers temperature measurements of substantial accuracy. Robustly designed and constructed, they are ideally suited for:

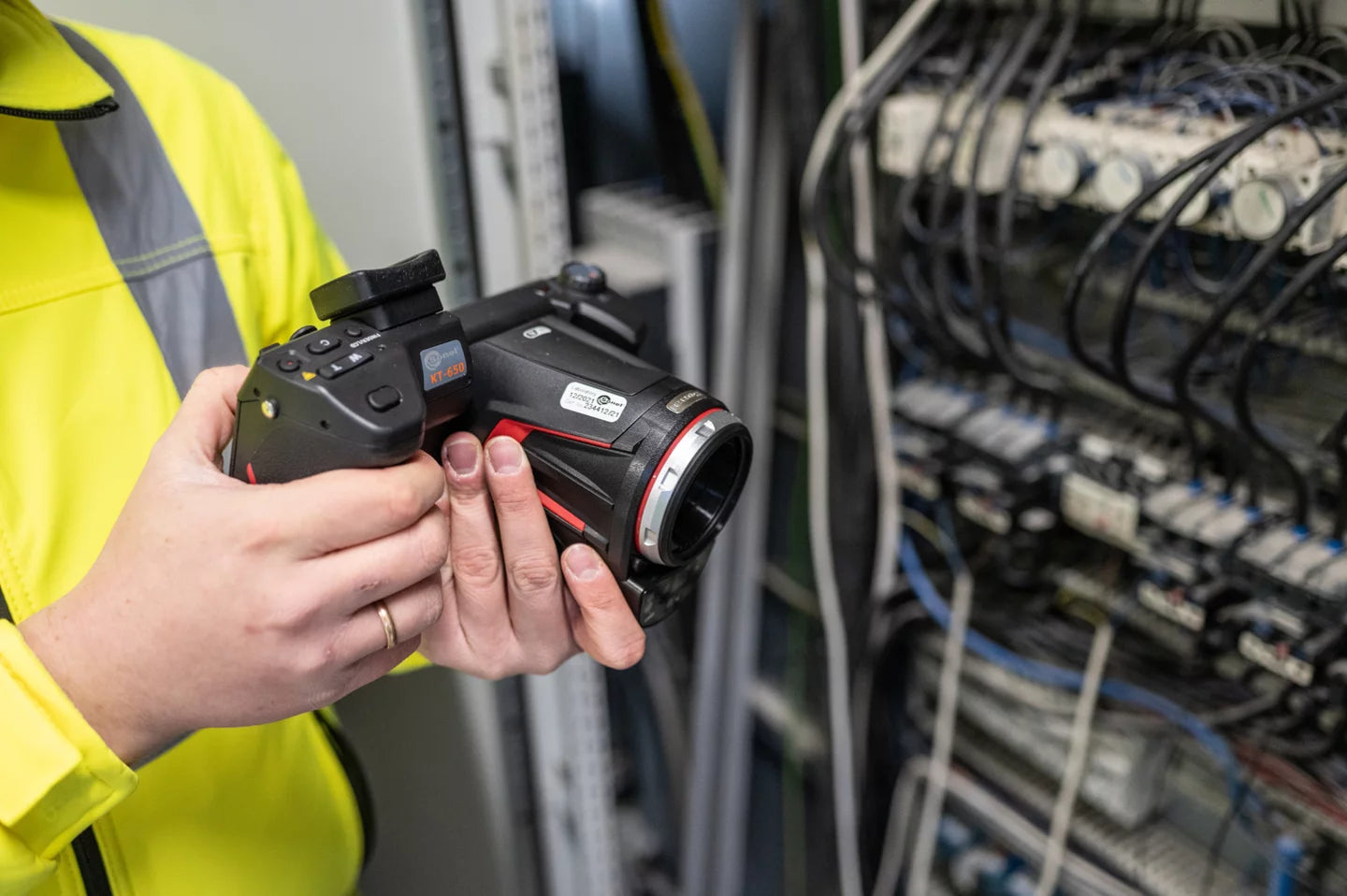

- troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,
- monitoring the thermal performance of industrial manufacturing processes,
- identifying overheating of mechanical and electro-mechanical components,
- inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,
- locating hidden heat sources (of people, animals, objects) in dark or low-light conditions.

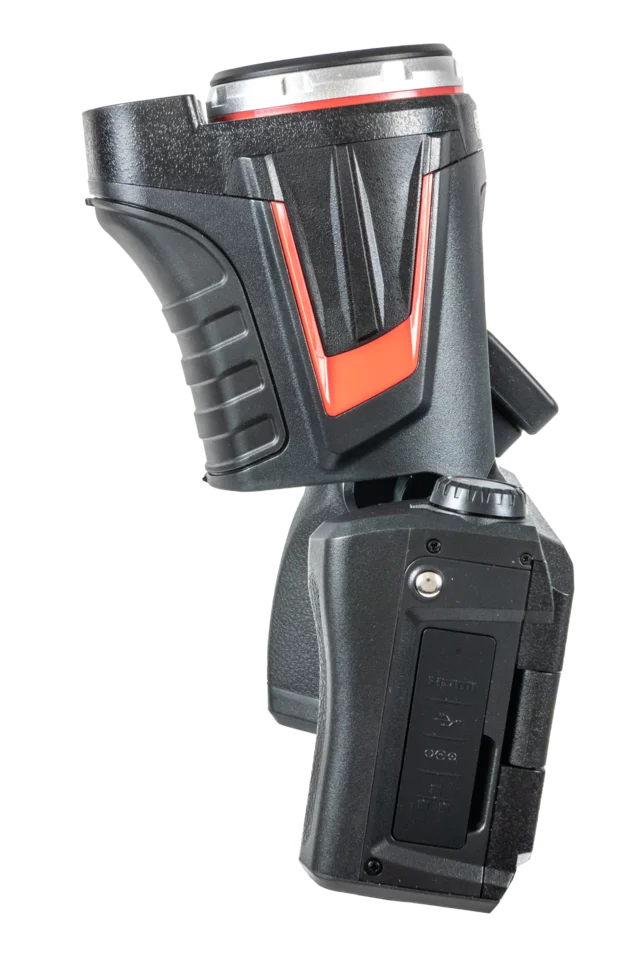

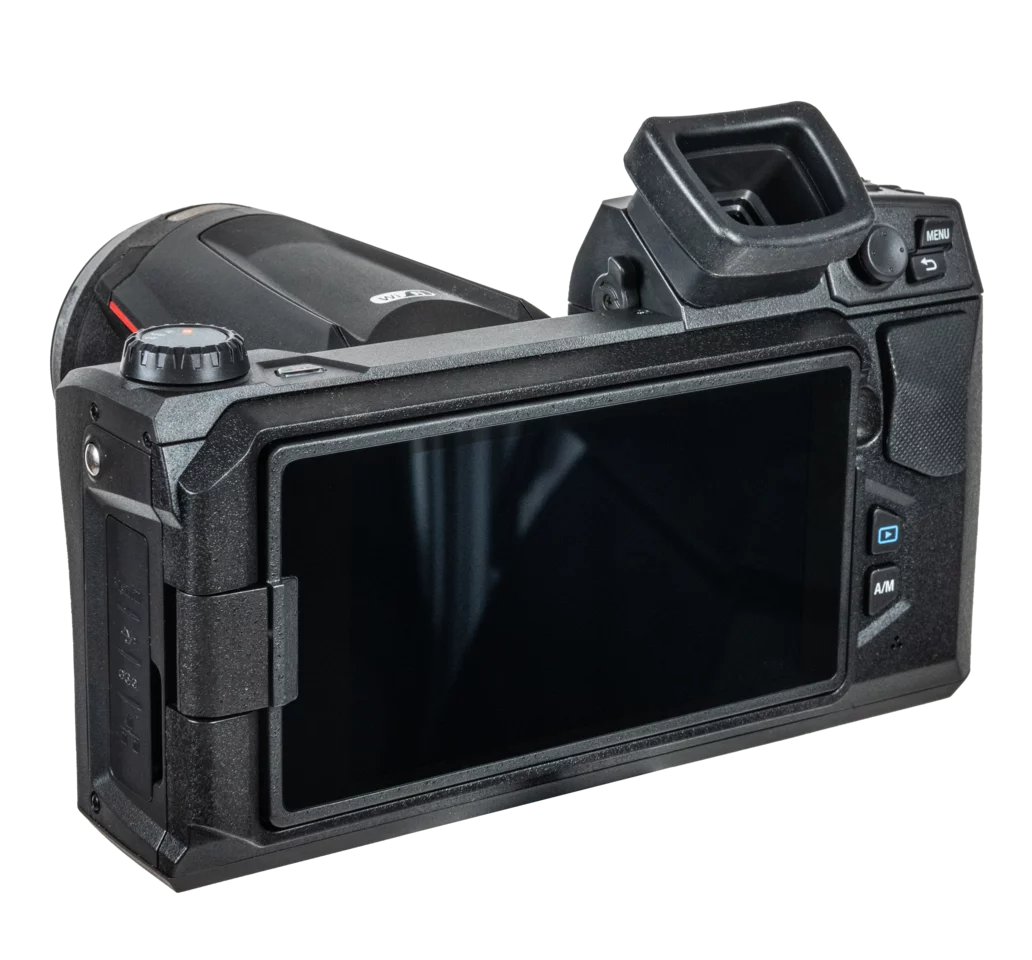

The touchscreen as well as the lens swivel independently to view objects of interest that are difficult to access from any angle. The large number of functions, intuitive handling and excellent ergonomics make the KT-650 imagers perfect for every advanced thermographer.
Features
- Image files saved in JPG format (complete image data).
- Recording of IR videos (on SD memory card or computer hard disk).
- Built-in reports module.
- MIF image combining mode.
- Extensive image analysis tools.
- Built-in camera for capturing images within the visible light spectrum.
- Built-in: GPS, digital compass, LED flashlight, laser.pointer, laser rangefinder.
- Interfaces: USB type C, Wi-Fi, Gigabit Ethernet, micro HDMI, SD memory card slot, Bluetooth.
- Digital zoom.
- Interchangeable lenses that do not require calibration by the manufacturer.
Specifications

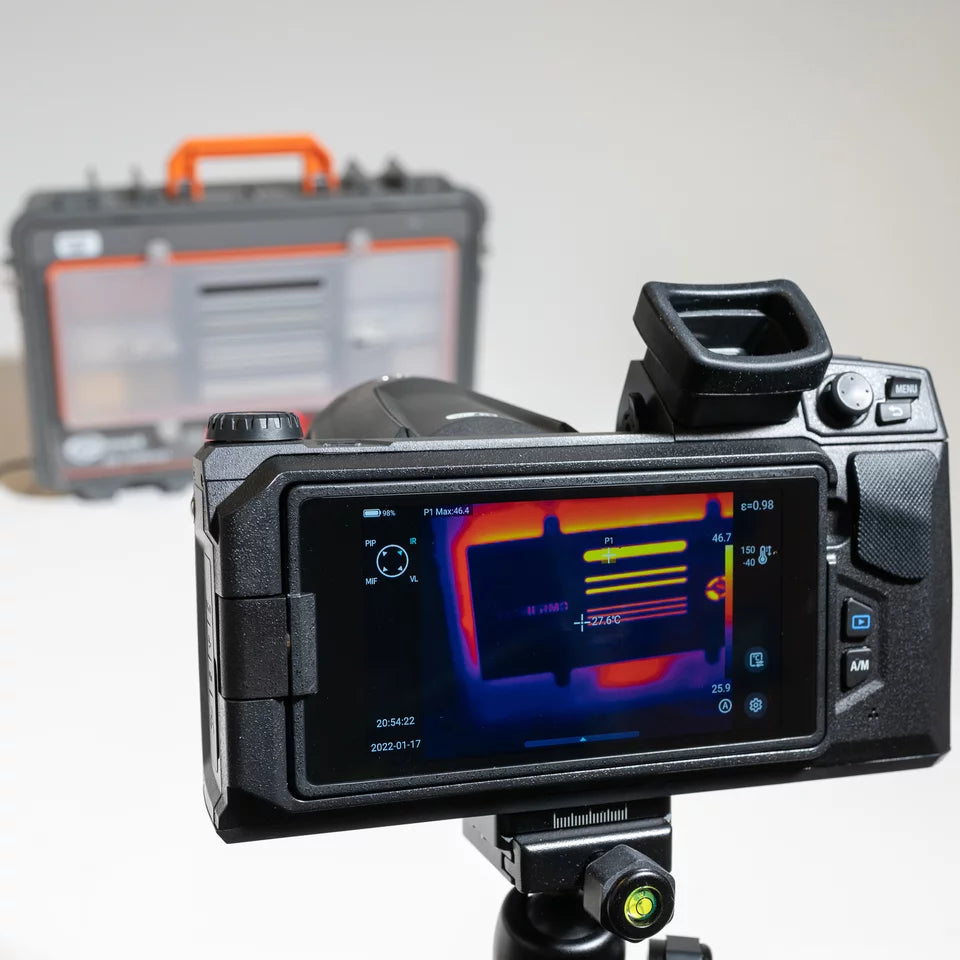

- 5’’ wide color touchscreen with no image cropping, adjustable viewing angle in all 3 axes
- High resolution: 640 x 480 pixels
- Temperature measurement to 1472°F or (optionally) 3632°F
- Record still images, or videos
- Store images or videos to SD card or PC
- Choice of image: IR, visible, picture-in-picture, and MIF
- Choice of color palette
- Adjust emissivity, set isotherms, and alarms.
- Removable Li-Ion battery with 4 hour working time
- High brightness display gives detailed information in high ambient light or outdoors
--
The Sonel KT-Series Thermal Imagers are budget-friendly yet offer highly accurate temperature measurements. Robustly designed and constructed they are ideally suited for:
- troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,
- monitoring the thermal performance of industrial manufacturing processes,
- identifying overheating of mechanical and electro-mechanical components,
- inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,
- locating hidden heat sources (of people, animals, objects) in dark / low-light conditions.
USER-FRIENDLY OPERATION
The user-friendly design, low weight, and intuitive handling make Sonel thermal cameras a pleasure to use. Experienced or new users needing a professional diagnostic tool will find the menus easy to navigate without training thanks to simple menus presented on a large touchscreen that can be rotated into any convenient angle for viewing. The rotating touchscreen, plus a lens that can swivel up and down, allows users to get measurements in areas that are not easily accessible or that would otherwise be awkward to view with a hand-held pistol-grip type camera.
KEY TECHNICAL FEATURES
- 5’’ wide color touchscreen with no image cropping, adjustable viewing angle in all 3 axes
- High resolution: 640 x 480 pixels
- Temperature measurement to 1472°F or (optionally) 3632°F
- Record still images, or videos
- Store images or videos to SD card or PC
- Choice of image: IR, visible, picture-in-picture, and MIF
- Choice of color palette
- Adjust emissivity, set isotherms, and alarms.
- Removable Li-Ion battery with 4 hour working time
- High brightness display gives detailed information in high ambient light or outdoors
- 5 Mpix visual camera
- GPS, digital compass, LED flashlight, and laser pointer built-in
REPORTING AND COMMUNICATION FEATURES
- MicroUSB 2.0, Wi-Fi, Bluetooth®, Gigabit Ethernet, SD slot for data transmission
- ThermoAnalyze2 Software avaialble for saving images to PC and for editing
- Reports module for performing complete thermal analysis in the camera
- Built-in Wi-Fi and Report Generator sends pdfs via email directly from the camera - no PC needed
- Annotate images with voice message, or text, add markers to highlight areas of concern
WEBINAR: Thermal imaging with Sonel KT-560 / 650 / 670
