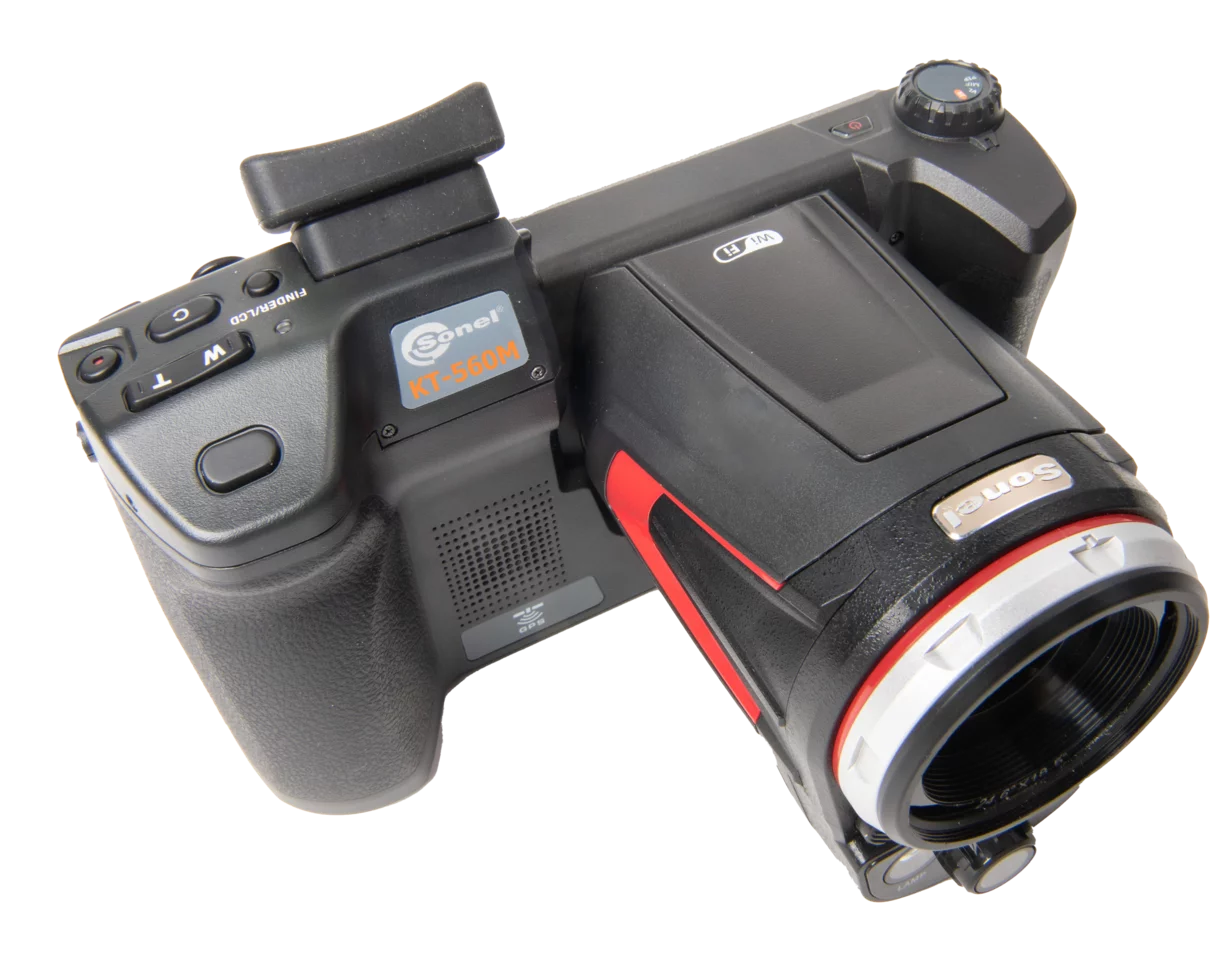

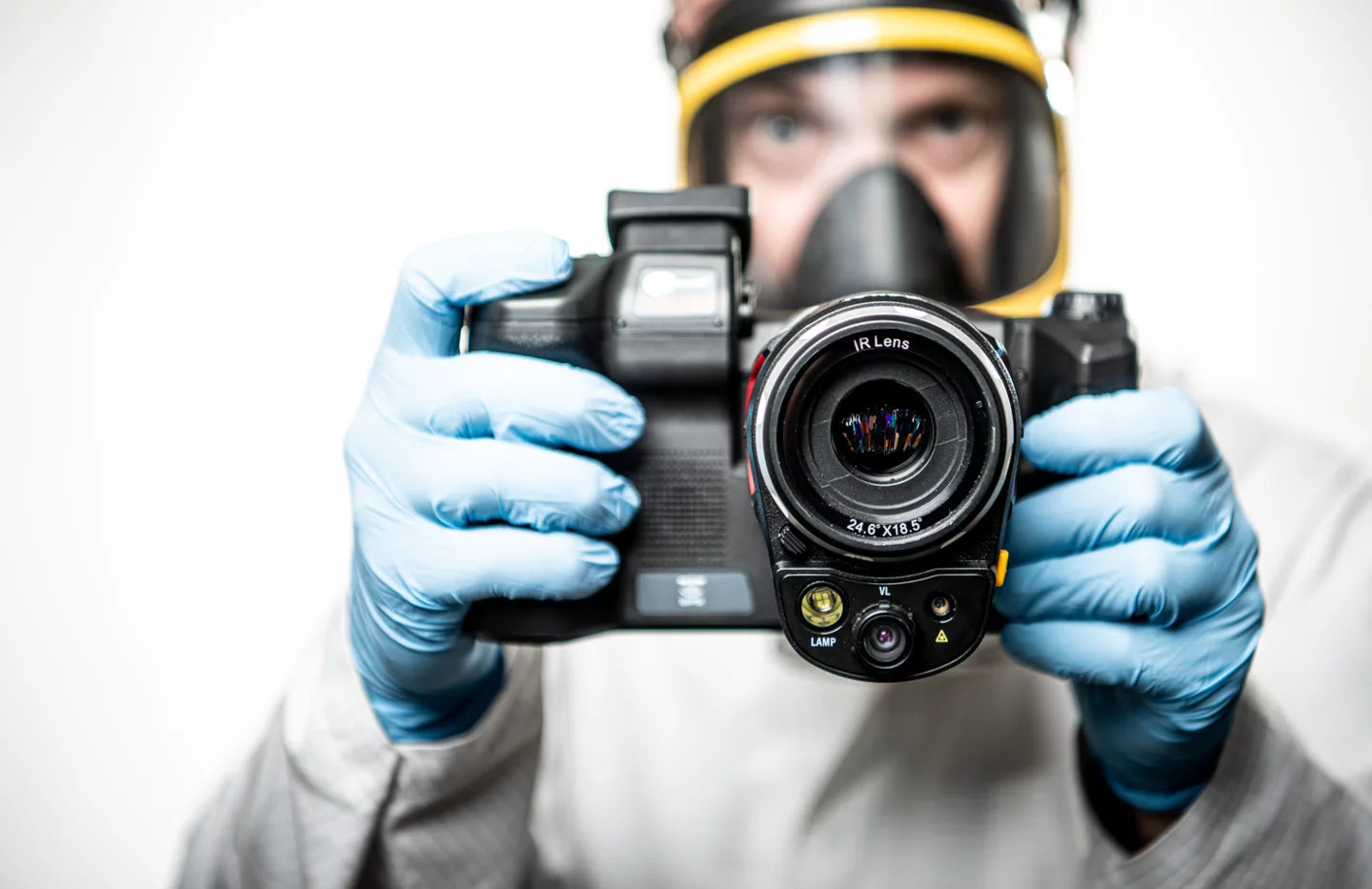

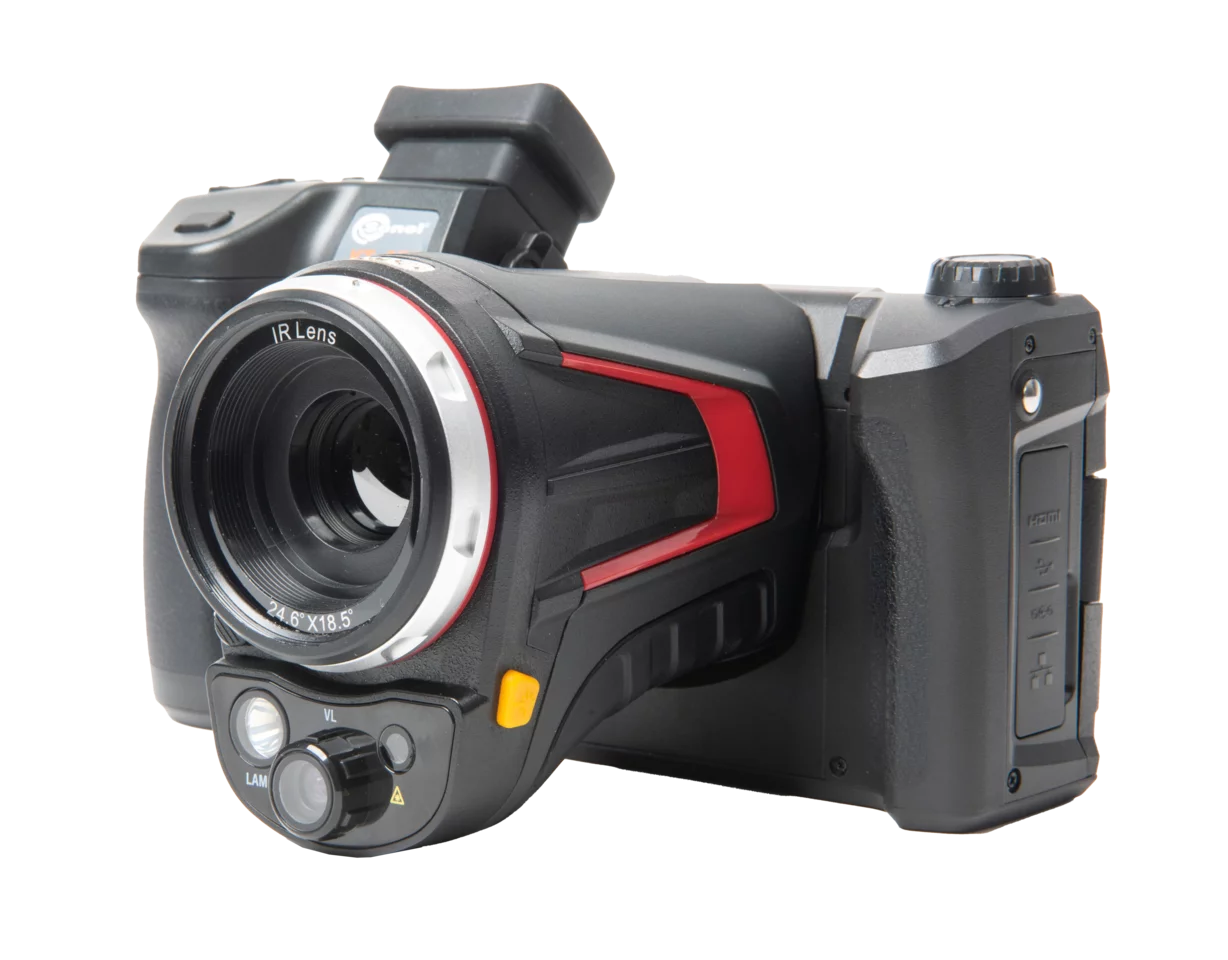

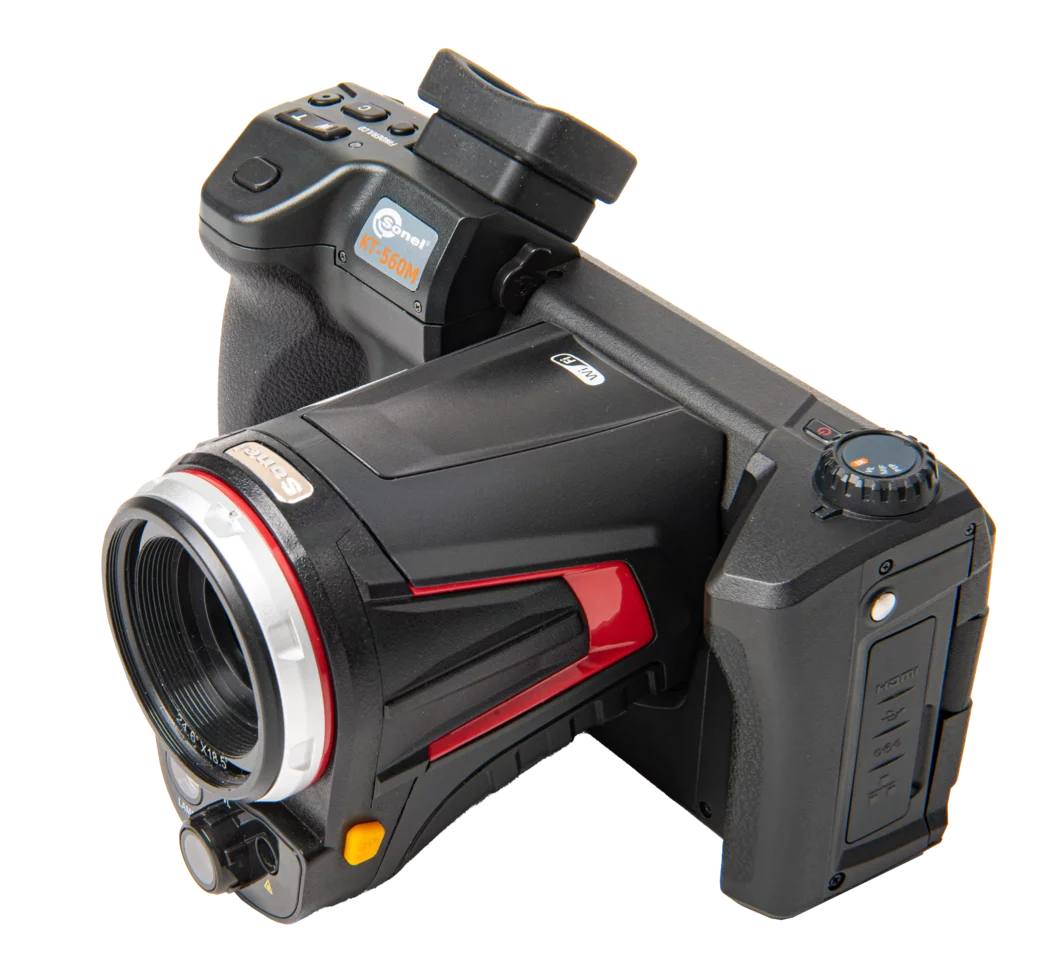

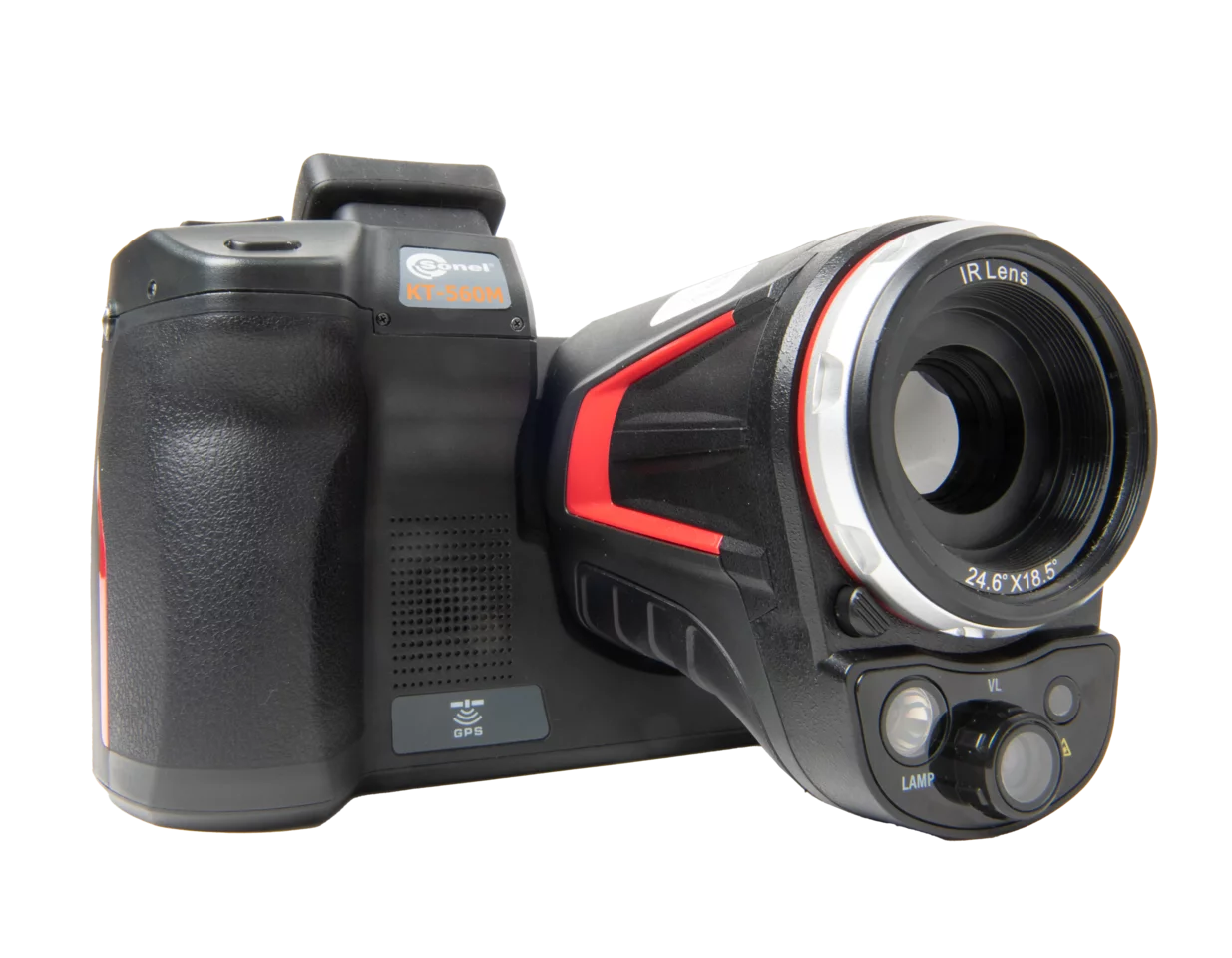

KT-560M Thermal Imager

KT-560M Thermal Imager

$13,300.00
$13,300.00
Sale Sold out
Shipping calculated at checkout.



  • Alert! Fever detected!

    The Sonel KT-560M thermal camera is a device dedicated for body temperature measurements. If it exceeds a preset threshold (e.g. fever), this can be signalled by an alarm. It is possible to identify risk groups in large-scale testing in this way. The camera can also be used to detect various conditions in individual patients and in animals. The camera is based on an IR matrix with a resolution of 384x288 pixels, which allows it to capture high quality, fully radiometric IR images.(USA)

    Examine through image

    Sonel KT-560M is dedicated for body temperature measurements. If the temperature exceeds a set threshold (i.e. fever), setting off an alarm is possible. This way, one can detect risk groups during extensive examinations. The imager can also be used to detect various diseases in individual patients and animals.

    Application

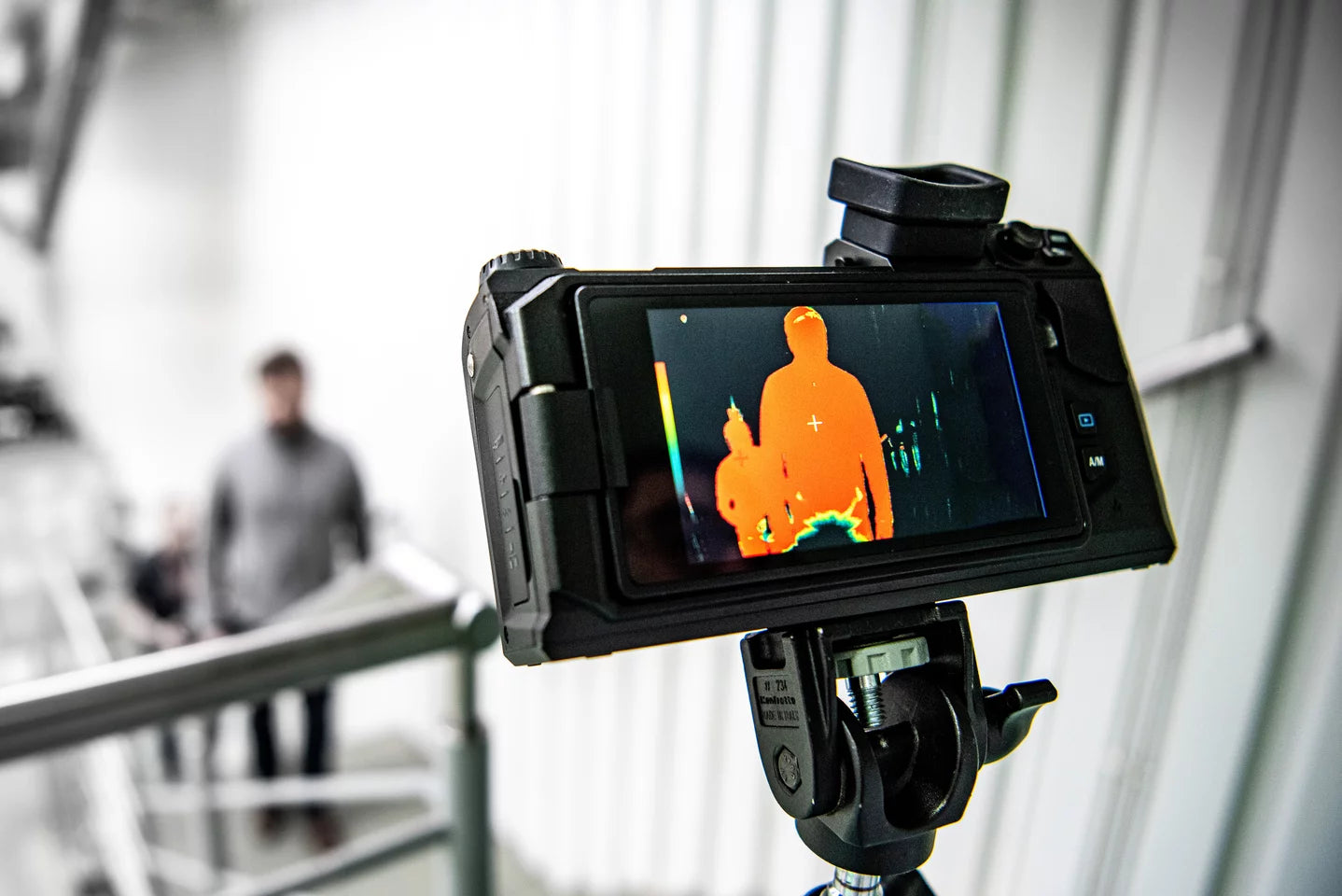

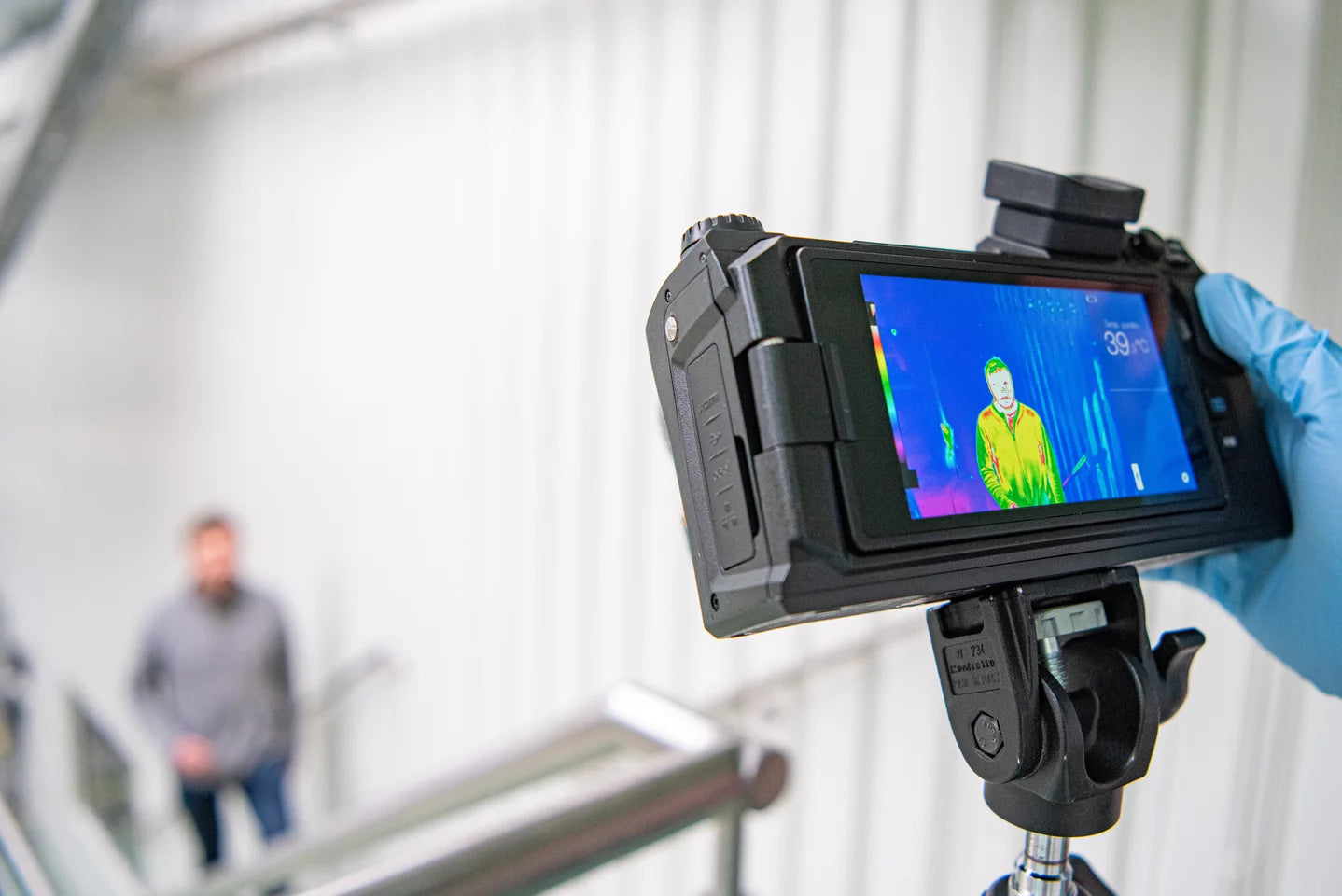

    The camera allows to identify people with fever in the crowd (e.g. caused by viral or bacterial infection). Ideally suited for sanitary-epidemiological monitoring of groups or individual people. In addition, it can be widely used in medicine (neurosurgery, neurology, vascular surgery, dentistry, otolaryngology, pulmonology, endocrinology and mammology) and in veterinary medicine.

    The camera is a useful tool when detecting:

    • fever
    • malignant tumours of breast, skin, lymph nodes, facial skeleton and their relapses,
    • inflammation and adenocarcinoma (ovary and fallopian tube),
    • ear, throat and nose inflammation,
    • inflammatory diseases of the joints and spine,
    • diseases of the vessels and nerves of the extremities,
    • thyroid dysfunction and disease,
    • inflammatory and functional diseases of the kidneys, as well as the digestive system and liver,
    • inflammation and diseases in animals.

    Features

    • measuring range 20°C...60°C (60°F...140°F), accuracy ≤ ±0.4°C (±0.7°F)
    • 5 Mpix visual camera
    • imaging modes: IR, visual, PIP (picture in picture), MIF (combined visual and IR)
    • saving IR images and videos to SD card or directly to a PC
    • 5’’ large rotating touchscreen
    • built-in report module for complete thermal analysis
    • add voice and text notes, draw graphical symbols on images
    • adjustable brightness of the display, facilitating work at high ambient light and dark places
    • GPS, digital compass, LED flashlight and laser pointer
    • removable Li-Ion battery with 4-hour working time
    • interfaces: microUSB 2.0, Wi-Fi, Gigabit Ethernet, MiniHDMI, SD slot
    • 5’’ wide color touchscreen with no image cropping, adjustable viewing angle in all 3 axes
    • High resolution: 384 x 288 pixels
    • Temperature measurement to 1472°F or (optionally) 3632°F
    • Record still images, or videos
    • Store images or videos to SD card or PC
    • Choice of image: IR, visible, picture-in-picture, and MIF
    • Choice of color palette
    • Adjust emissivity, set isotherms, and alarms.
    • Removable Li-Ion battery with 4 hour working time
    • High brightness display gives detailed information in high ambient light or outdoors
    • 5 Mpix visual camera
    • GPS, digital compass, LED flashlight, and laser pointer built-in








KT-Series

The Sonel KT-Series Thermal Imagers are budget-friendly yet offer highly accurate temperature measurements.

Robustly designed and constructed they are ideally suited for:


    • troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment,

    • monitoring the thermal performance of industrial manufacturing processes,

    • identifying overheating of mechanical and electro-mechanical components,

    • inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests,

    • locating hidden heat sources (of people, animals, objects) in dark / low-light  conditions.


USER-FRIENDLY OPERATION

The user-friendly design, low weight, and intuitive handling make Sonel thermal cameras a pleasure to use. Experienced or new users needing a professional diagnostic tool will find the menus easy to navigate without training thanks to simple menus presented on a large touchscreen that can be rotated into any convenient angle for viewing. The rotating touchscreen, plus a lens that can swivel up and down, allows users to get measurements in areas that are not easily accessible or that would otherwise be awkward to view with a hand-held pistol-grip type camera.

KEY TECHNICAL FEATURES


    • 5’’ wide color touchscreen with no image cropping, adjustable viewing angle in all 3 axes

    • High resolution: 384 x 288 pixels

    • Temperature measurement to 1472°F or (optionally) 3632°F

    • Record still images, or videos

    • Store images or videos to SD card or PC

    • Choice of image: IR, visible, picture-in-picture, and MIF

    • Choice of color palette

    • Adjust emissivity, set isotherms, and alarms.

    • Removable Li-Ion battery with 4 hour working time

    • High brightness display gives detailed information in high ambient light or outdoors

    • 5 Mpix visual camera

    • GPS, digital compass, LED flashlight, and laser pointer built-in


REPORTING AND COMMUNICATION FEATURES

    • MicroUSB 2.0, Wi-Fi, Bluetooth®, Gigabit Ethernet, SD slot for data transmission

    • ThermoAnalyze2 Software avaialble for saving images to PC and for editing

    • Reports module for performing complete thermal analysis in the camera

    • Built-in Wi-Fi and Report Generator sends pdfs via email directly from the camera – no PC needed

    • Annotate images with voice message, or text, add markers to highlight areas of concern




WEBINAR: Thermal imaging with Sonel KT-560 / 650 / 670
















TECHNICAL SPECIFICATION


 KT-560:
Detector 384 x 288
Spectral range 8 to14 μm
NETD 50 mK
Lens 21.7° x 16.4°/25 mmoptional:
40.5° x 31.0°/13 mm
10.0° x 7.5°/55 mm
6.7° x 5.1°/85 mm
LCD 5”, 1280 x 720, HQ touch LCD
Viewfinder 1280 x 960 LCOS screen
Image mode IR image/Visual image/PIP/MIF
Zoom 1 to 4x
Measurement Range Range 1: -4°F to 302°F / -20°C to 150°C
Range 2: 302°F to 1472°F / 150°C to 800°C
Optional: up to 3632°F / 2000°C
Accuracy (Ambient: 10℃-35℃) ±2°C or 2% of reading
Image Analysis Modes 5 points, 2 lines, 5 polygons; temperature display: min, max, avg; isotherm; dew point; temperature alarm
Palette 8
Emissivity Adjustable from 0.01 to 1.00 or from the list of materials
Measurement correction Adjustable: distance, relative humidity, ambient temperature
File format JPG
Notes to pictures Voice note (up to 60 s), text, graphical
Reports module Reports to PDF, printing via Wi-Fi directly from the camera, or via PC
Video file format AVI, IRV (with temperature info)
Built-in functions Visual camera 5 MPix, LED flashlight, GPS, laser pointer, microphon, loudspeaker, digital compass, light sensor
Interface Wi-Fi
Interfejsy SD card, LAN 1 Gb/s, mini HDMI, microUSB 2.0
Power Li-Ion battery (work time >4 hours), built-in charger, AC adapter 110-230 V, 50/60 Hz
Work temperature 5°F to 122°F / -15°C to 50°C
Storage temperature -40°F to 158°F / -40°C to 70°C
Humidity 10% to 95%
Shock / vibration 25G, IEC 60068-2-29 / 2G, IEC 60068-2-6
Casing IP54
Weight 2.9 lbs / 1.3 kg (with battery)
