| Parameter | Value |
|---|---|
| Net weight (kg) | 0.2 |
| Package weight (kg) | 0.2 |
| Package width (cm) | 18 |
| Package height (cm) | 7.5 |
| Package length (cm) | 25.5 |
Description

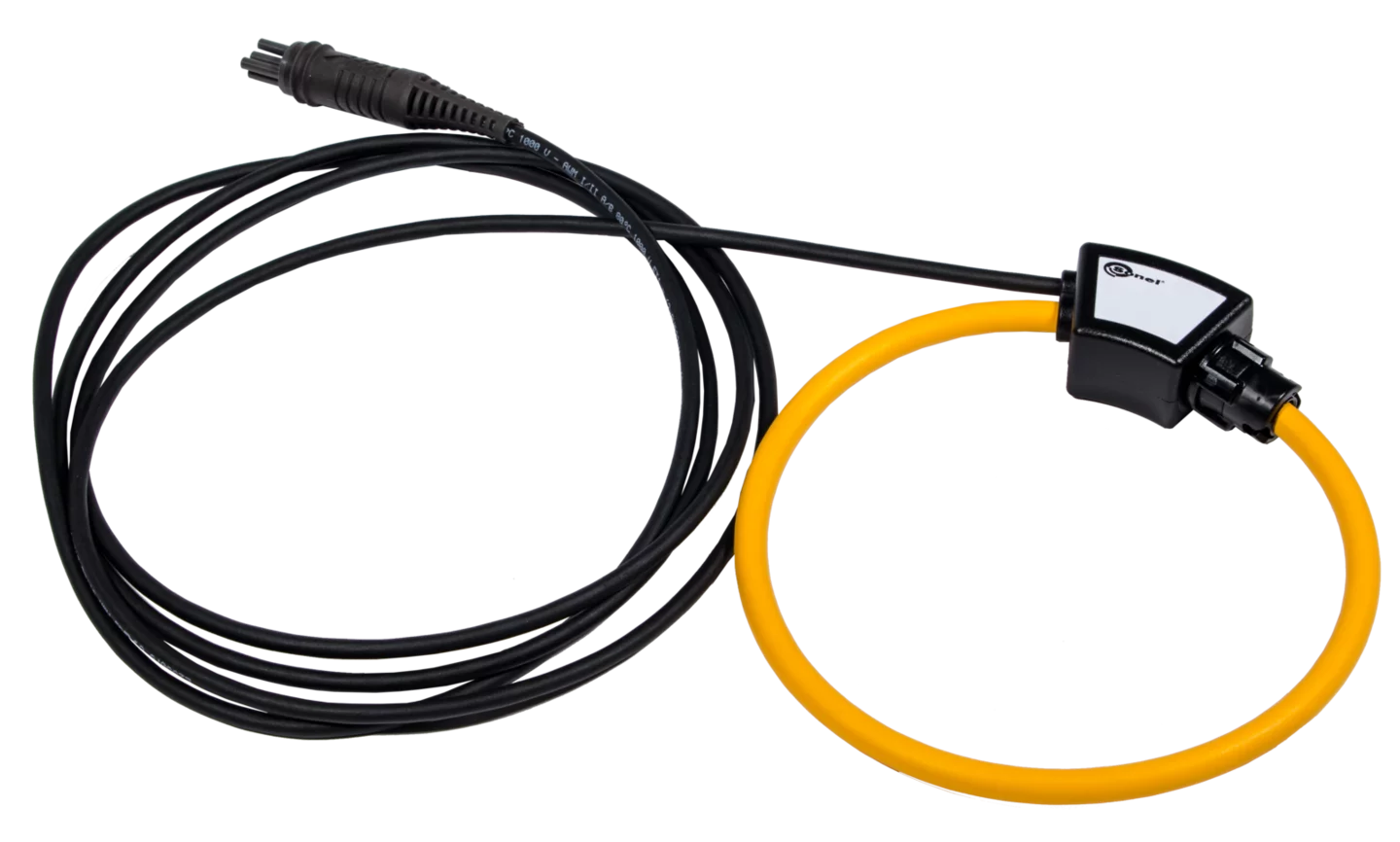

Flexible coils, also referred to as Rogowski coils, are used for measurements of alternating currents in hard-to-access points, where it is not possible to clamp fixed jaws. They enable the measurements of current levels up to 6000 A. With the 5-pin termination, they are connected directly to the power quality analyzers.
The rated current of this product is 6000 A and the diameter of the enclosed conductor is maximum 120 mm.
Technical data
Weight and dimensions
