Sonel Test Equipment

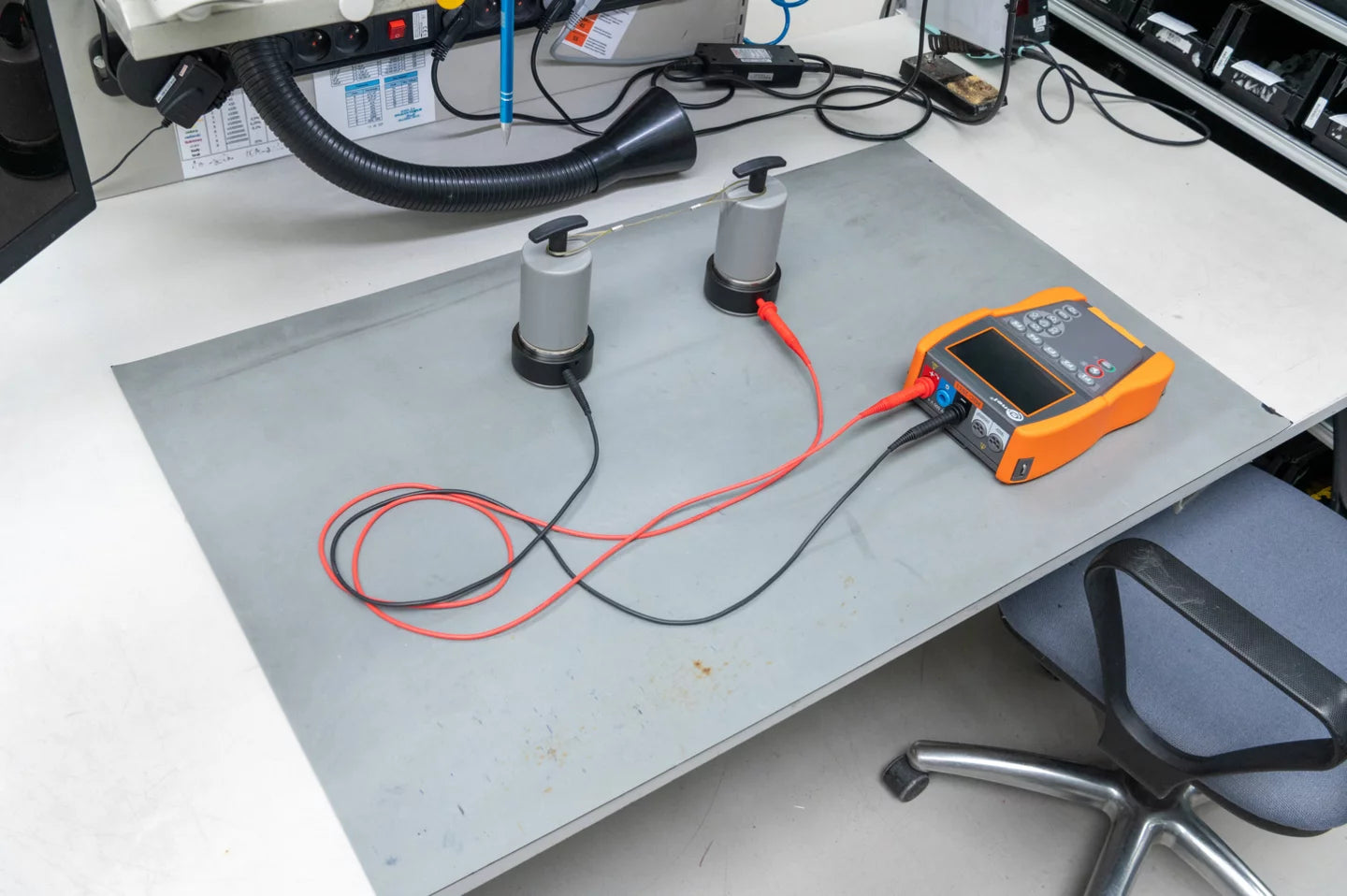

PRS-2: Probe for measuring resistance in zones with ESD protection (2 pcs.)

PRS-2: Probe for measuring resistance in zones with ESD protection (2 pcs.)

Regular price $830.00
Regular price Sale price $830.00
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION



  • The kit has been designed for coordinators and measurement specialists who supervise and regularly control in zones protected against the effects of electrostatic discharge (EPA).

    Working with the PRS-2 probes is fast and accurate. The probes are precisely manufactured, in accordance with the guidelines of international standards, incl. IEC 61340-5-1, IEC 61340-5-2 and ANSI/ESD S20.20. As a result, the measured values of surface and material resistance are correctly verified.

    The product was developed to fully or partially meet the standards:

    • IEC 61340-2-3 Electrostatics - Part 2-3: Methods of test for determining the resistance and resistivity of solid planar materials used to avoid electrostatic charge accumulation
    • IEC 61340-4-1 Electrostatics - Part 4-1: Standard test methods for specific applications - Electrical resistance of floor coverings and installed floors
    • IEC 61340-4-3 Electrostatics - Part 4-3: Standard test methods for specific applications - Footwear
    • IEC 61340-4-5 Electrostatics - Part 4-5: Standard test methods for specific applications - Methods for characterizing the electrostatic protection of footwear and flooring in combination with a person
    • IEC 61340-4-6 Electrostatics - Part 4-6: Standard test methods for specific applications - Wrist straps
    • IEC 61340-4-7 Electrostatics - Part 4-7: Standard test methods for specific applications - Ionization
    • IEC 61340-4-9 Electrostatics - Part 4-9: Standard test methods for specific applications - Garments
    • IEC 61340-5-1 Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena - General requirements
    • IEC TR 61340-5-2 Electrostatics - Part 5-2: Protection of electronic devices from electrostatic phenomena - User guide
    • IEC 61340-5-3 Electrostatics - Part 5-3: Protection of electronic devices from electrostatic phenomena - Properties and requirements classification for packaging intended for electrostatic discharge sensitive devices
    • IEC 62631-3-1 Dielectric and resistive properties of solid insulating materials - Part 3-1: Determination of resistive properties (DC methods) - Volume resistance and volume resistivity - General method
    • HD 60364-6 Low-voltage electrical installations - Part 6: Verification
    • IEC 1081 Pneumatic instruments driven by associated process gas - Safe installation and operating procedures - Guidelines




    Standard accessories

    • 2x double-sized ring-shape measurement probe (counter-electrode)
    • circular probe (counter-electrode)
    • 2x pressure weight
    • insulating plate
    • test lead 10 m on a reel
    • 3x test lead 1.2 m
    • distance line 25 cm
