DESCRIPTION

• • The device is dedicated to measure DC current and voltage in photovoltaic installations. The device is versatile due to many measurement options. In addition to the basic measurements, the instrument has a recorder with graphs. Working in full sun is not difficult thanks to the high-brightness display.

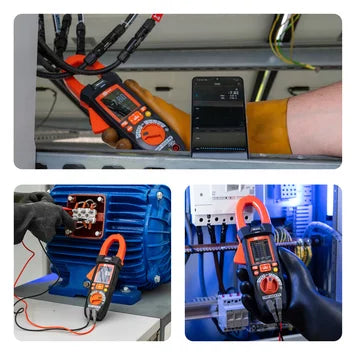

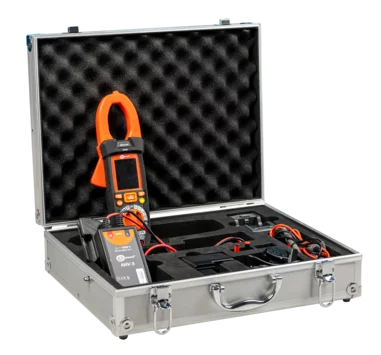

    The set includes:

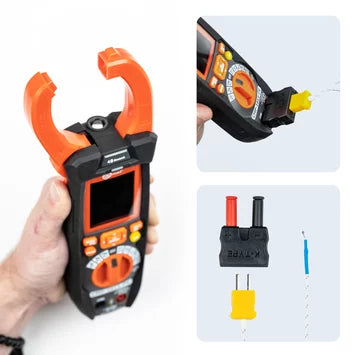

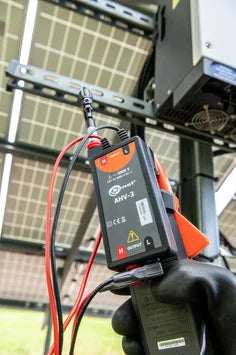

    • the AHV-3 adapter that increases its voltage measurement range up to 3000 V DC,
    • the mounting adapter that allows the AHV-3 adapter to be mounted on the clamp and increases the convenience of using voltage probes.

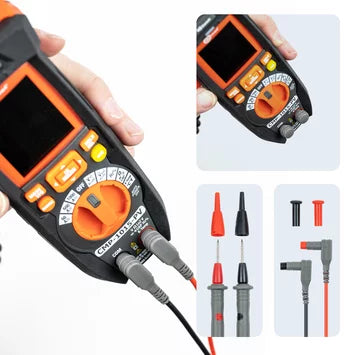

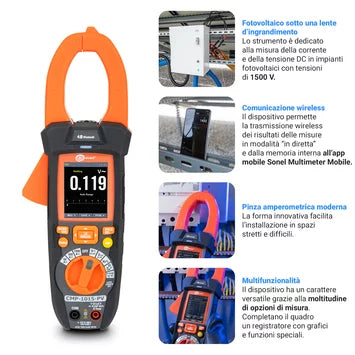

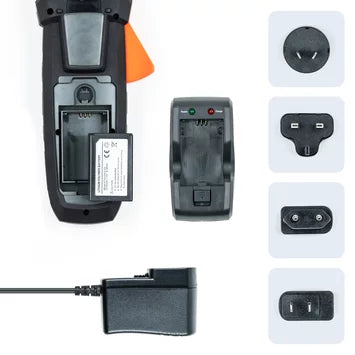

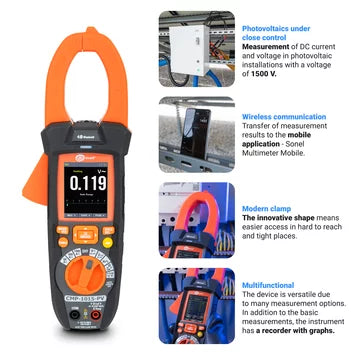

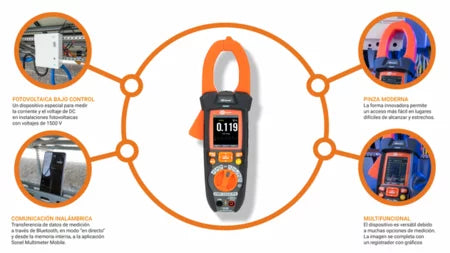

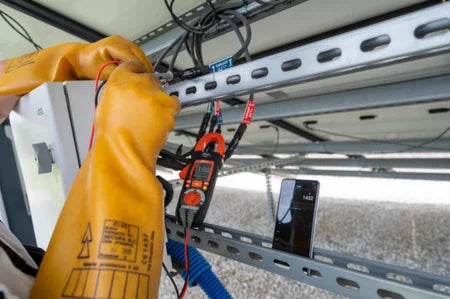

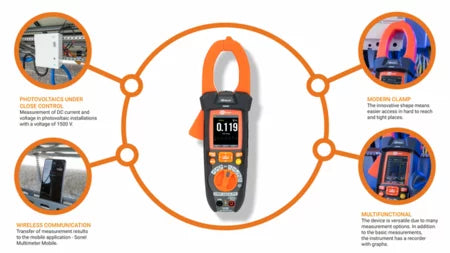

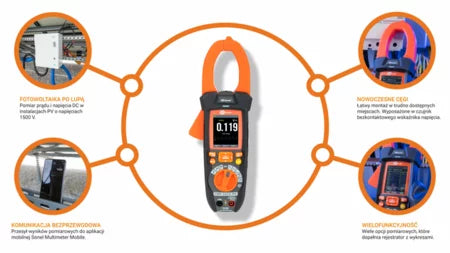

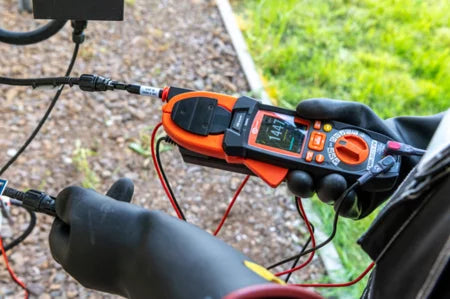

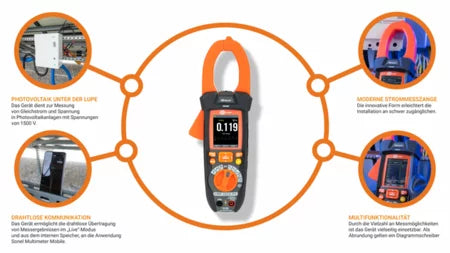

    Photovoltaics under close control

    The device is dedicated to measure DC current and voltage in photovoltaic installations with voltages of 1500 V. The meter also provides precise measurements downstream of frequency converters thanks to the VFD function.

    Modern clamp

    The innovative shape means easier access in hard to reach and tight places, as the basis for mounting special voltage adapters. The clamp edging is equipped with a contactless voltage indicator sensor.

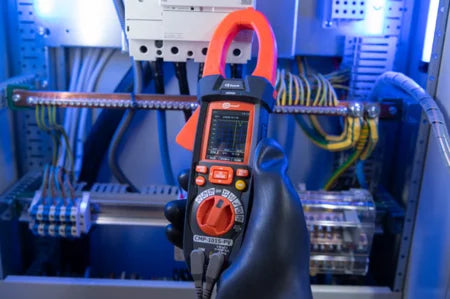

    Visibility in any conditions

    Working in full sun is not difficult thanks to the high-brightness display. Darkness in the workplace is not a problem thanks to the built-in flashlight.

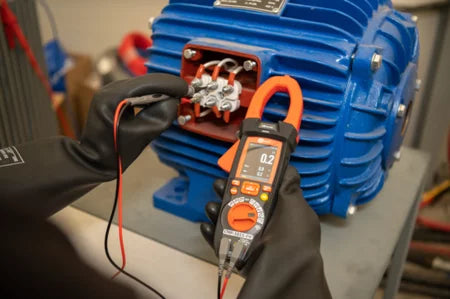

    Multifunctional

    The device is versatile due to many measurement options. IIn addition to the basic measurements, the instrument has a recorder with graphs, as well as special functions, including inrush current (INRUSH), AC and DC voltage components, low-impedance voltage measurement (Low Z).

    Robust design

    With the help of the latest technologies, a compact instrument for working in the toughest conditions has been created. The rubber housing protects the device against accidental damage.

    Wireless communication

    Transfer measurement data via Bluetooth, in “live” mode to the Sonel Multimeter Mobile application. This allows to record and store the results and include additional description or photos. You can also share measurement data as an e-mail attachment.

  Measurement functions	Range	Resolution	Accuracy
  AC current	up to 1000 A	from 0.01 A	±(2.5% m.v. + 5 digits)
  DC current	up to 1000 A	from 0.01 A	±(2.0% m.v. + 8 digits)
  AC voltage	up to 1000 V	from 0.001 V	from ±(1.2% m.v. + 5 digits)
  DC voltage	up to 1500 V	from 0.1 mV	from ±(0.5% m.v. + 5 digits)
  AC+DC voltage	up to 1000 V	from 0.001 V	from ±(1.5% m.v. + 20 digits)
  Low Z (AC / DC voltage)	up to 1000 V	from 0.001 V	±(3.0% m.v. + 40 digits)
  Low Z AC+DC< /b>	up to 1000 V	from 0.001 V	±(3.5% m.v. + 40 digits)
  Resistance	up to 60.00 MΩ	from 0.1 Ω	from ±(0.8% m.v. + 5 digits)
  Frequency	up to 10.00 MHz	from 0.01 Hz	±(0.2% m.v. + 5 digits)
  Capacitance	up to 100.0 mF	from 0.01 nF	from ±(3.0% m.v. + 8 digits)
  Duty cycle (%)	10.0…90.0%	0.1%	±(1.2% m.v. + 8 digits)
  Temperature measurement	-40.0…+1000ºC -40.0…+1832ºF	0.1ºC 0.1ºF	±(1.5% m.v. + 3ºC) ±(1.0% m.v. + 5.4ºF)
  Continuity / Diode test	✓ / ✓



  m.v. - measured value

  Basic features:

  • HOLD
  • Automatic range selection

  Advanced features:

  • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
  • High voltage DC measurement (HVDC)
  • Inrush current
  • Non-contact voltage detector
  • MIN / MAX
  • PEAK HOLD
  • Relative measurement REL
  • TRMS measurement
  • Memory
    • internal
      • measurements: 128 results
      • recorder: 16 recordings, 100 000 points, sampling frequency: from 1 Hz
    • external
      • in mobile application
  • Bluetooth communication

  Other features:

  • Auto-off
  • Battery indication
  • Integrated flashlight
  • Beeper

  Display:

  • Type: graphical LCD
  • Display backlight
