DESCRIPTION

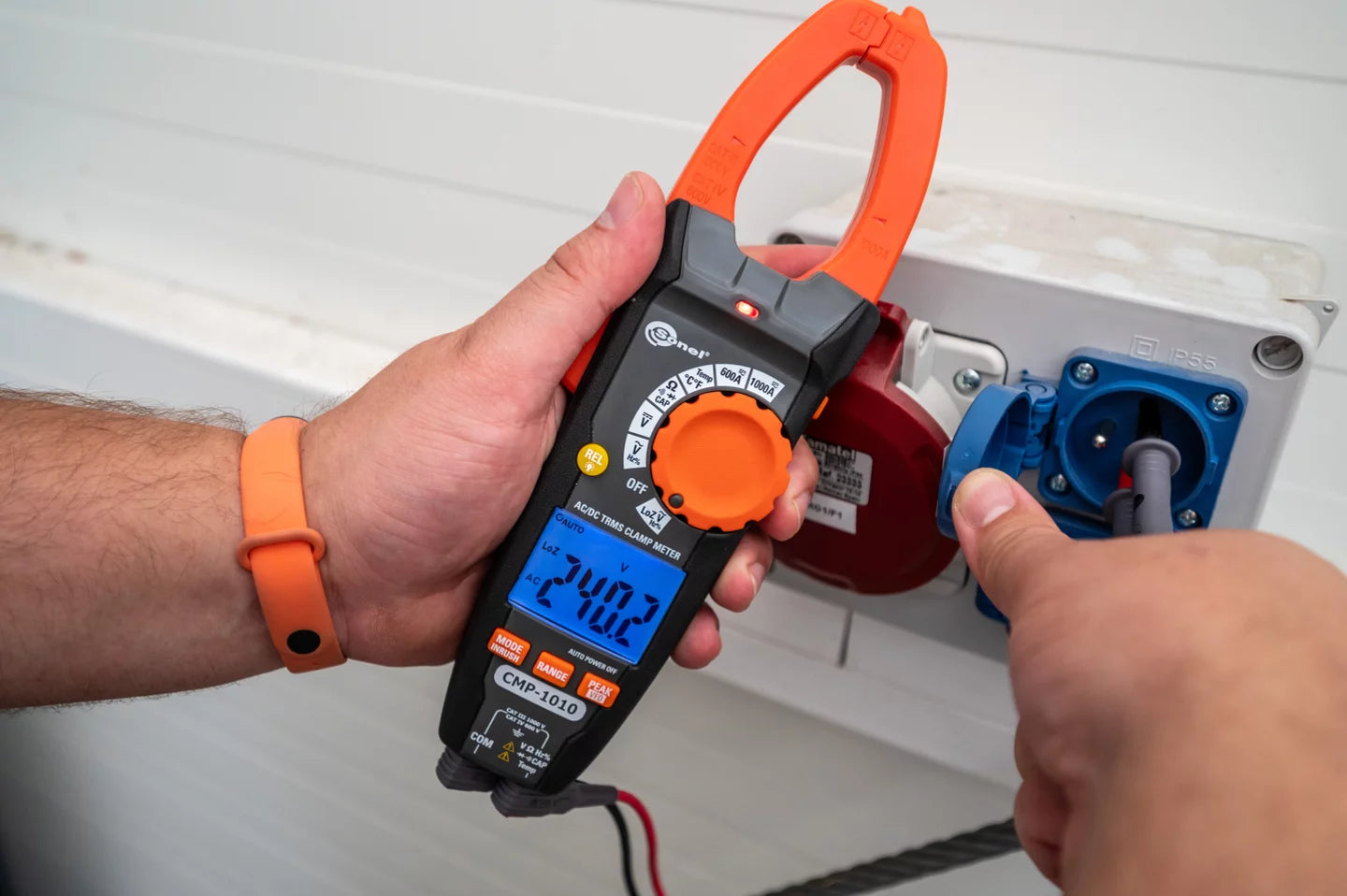

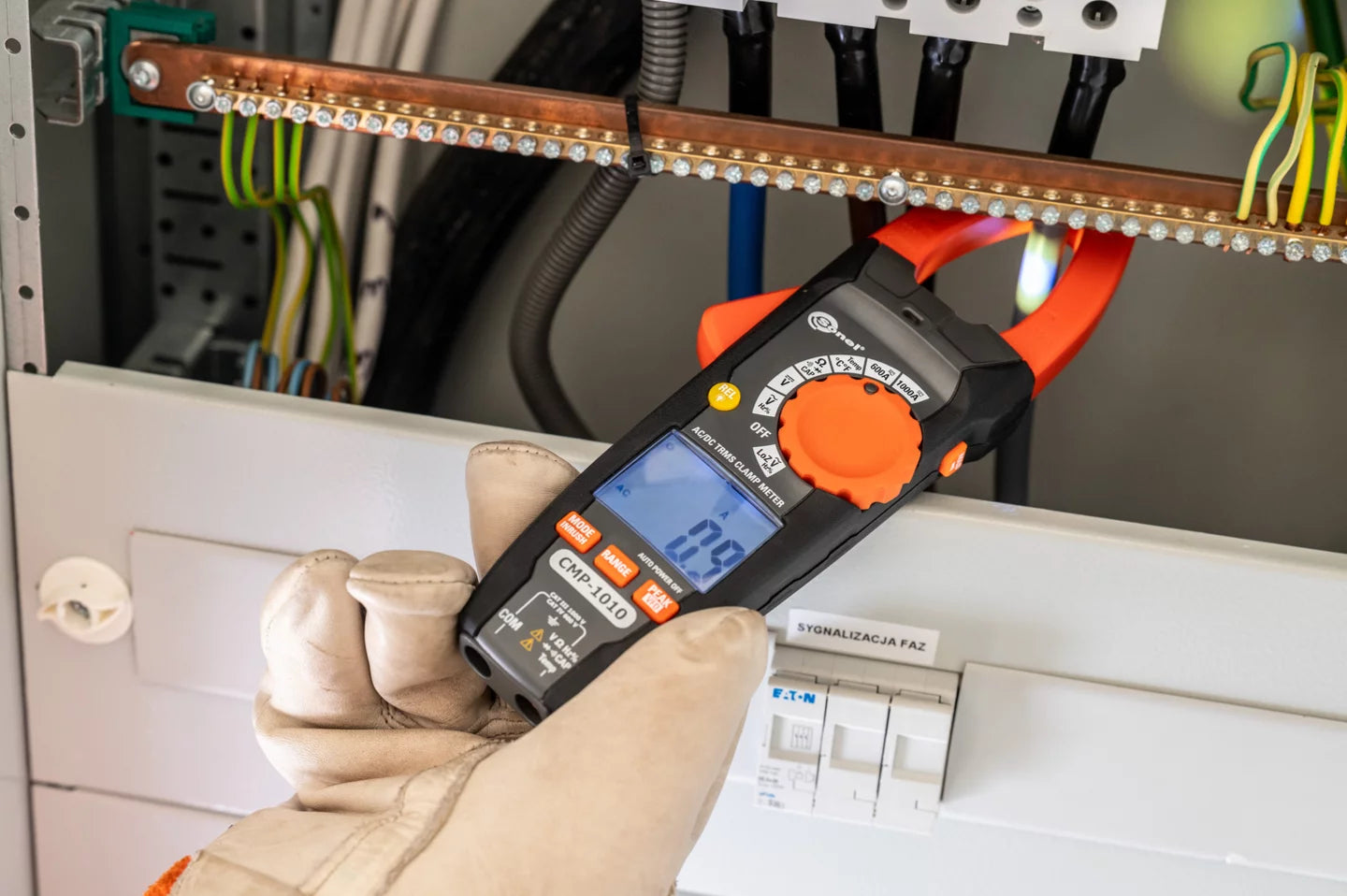

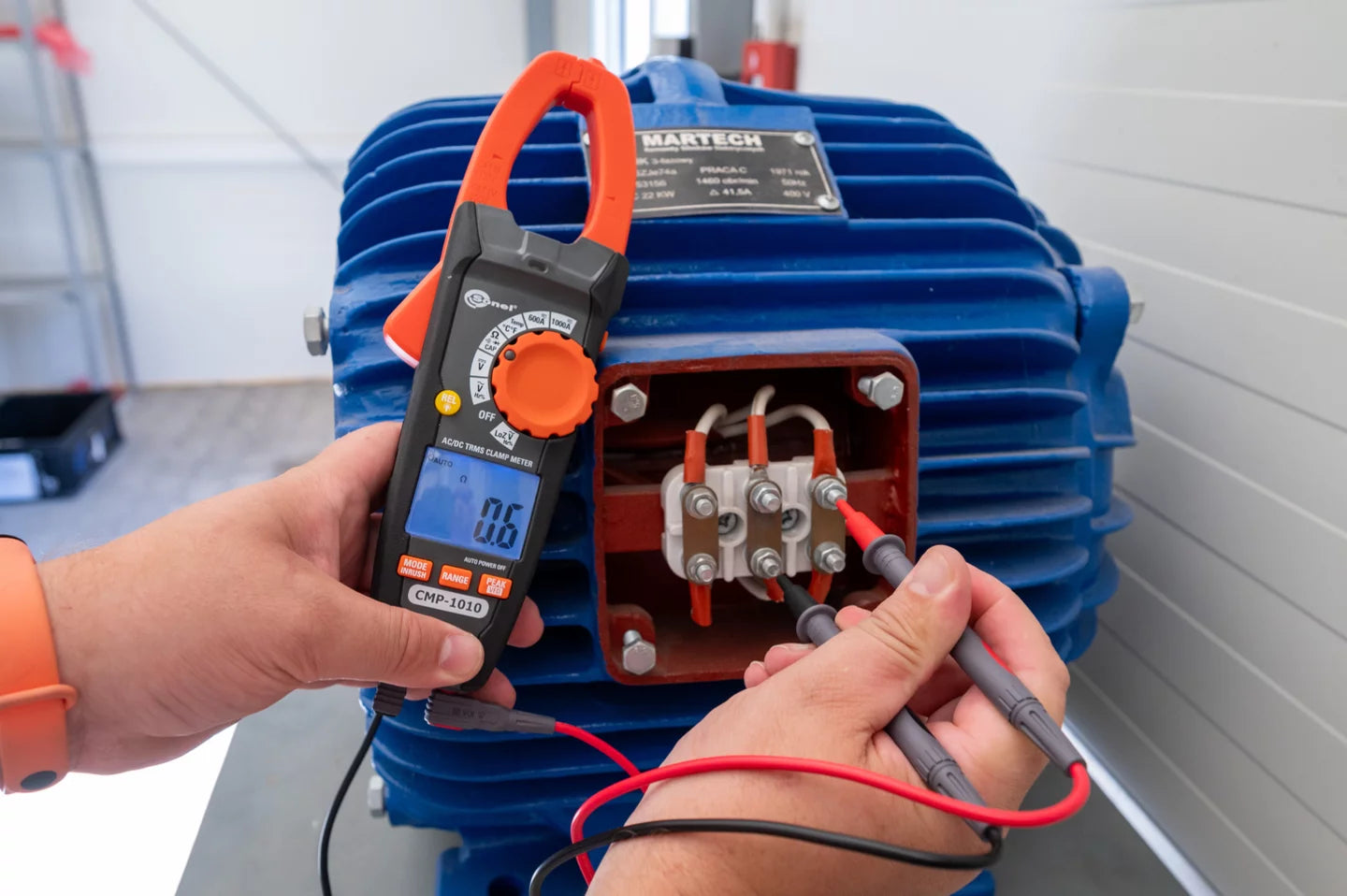

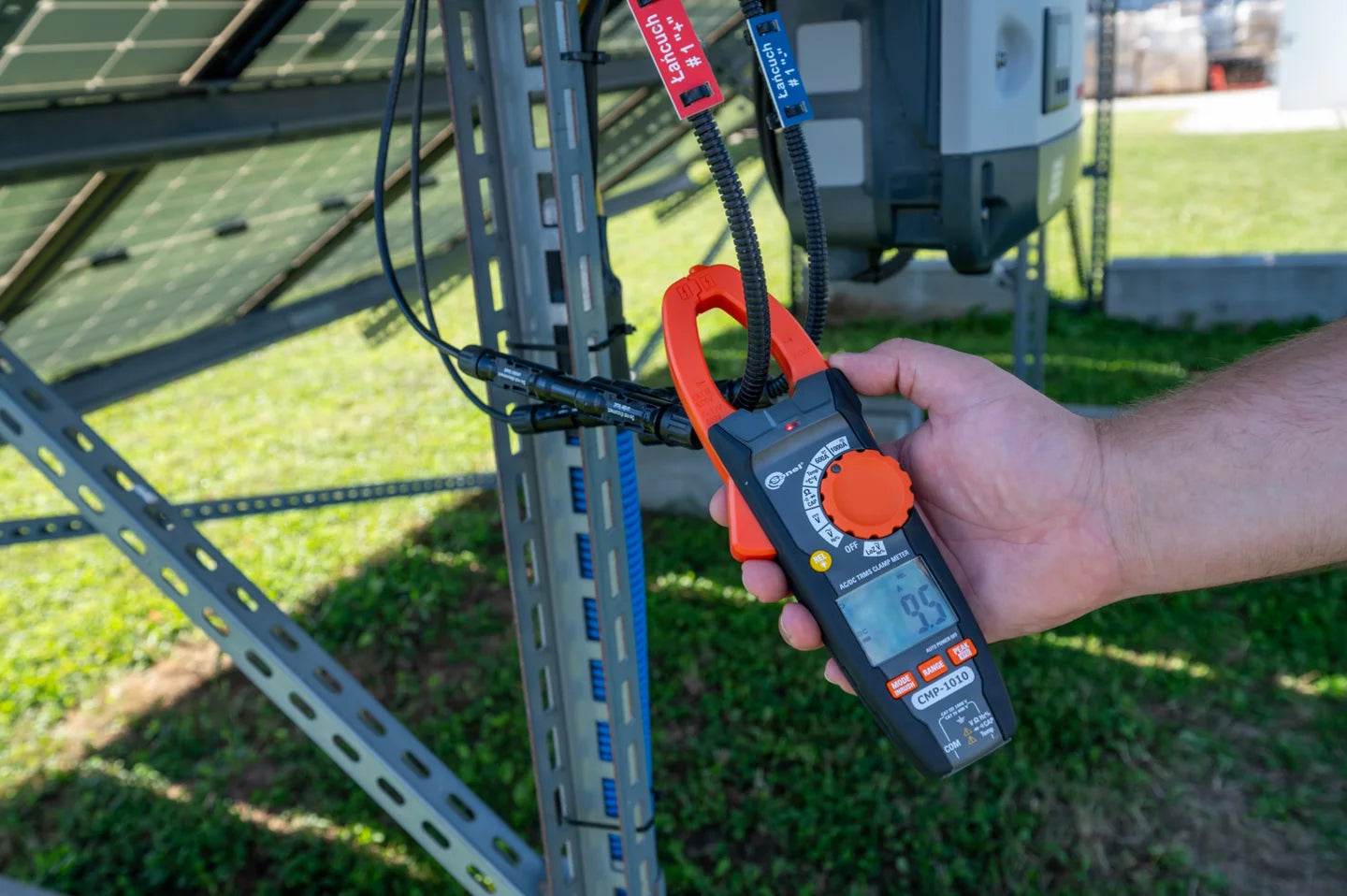

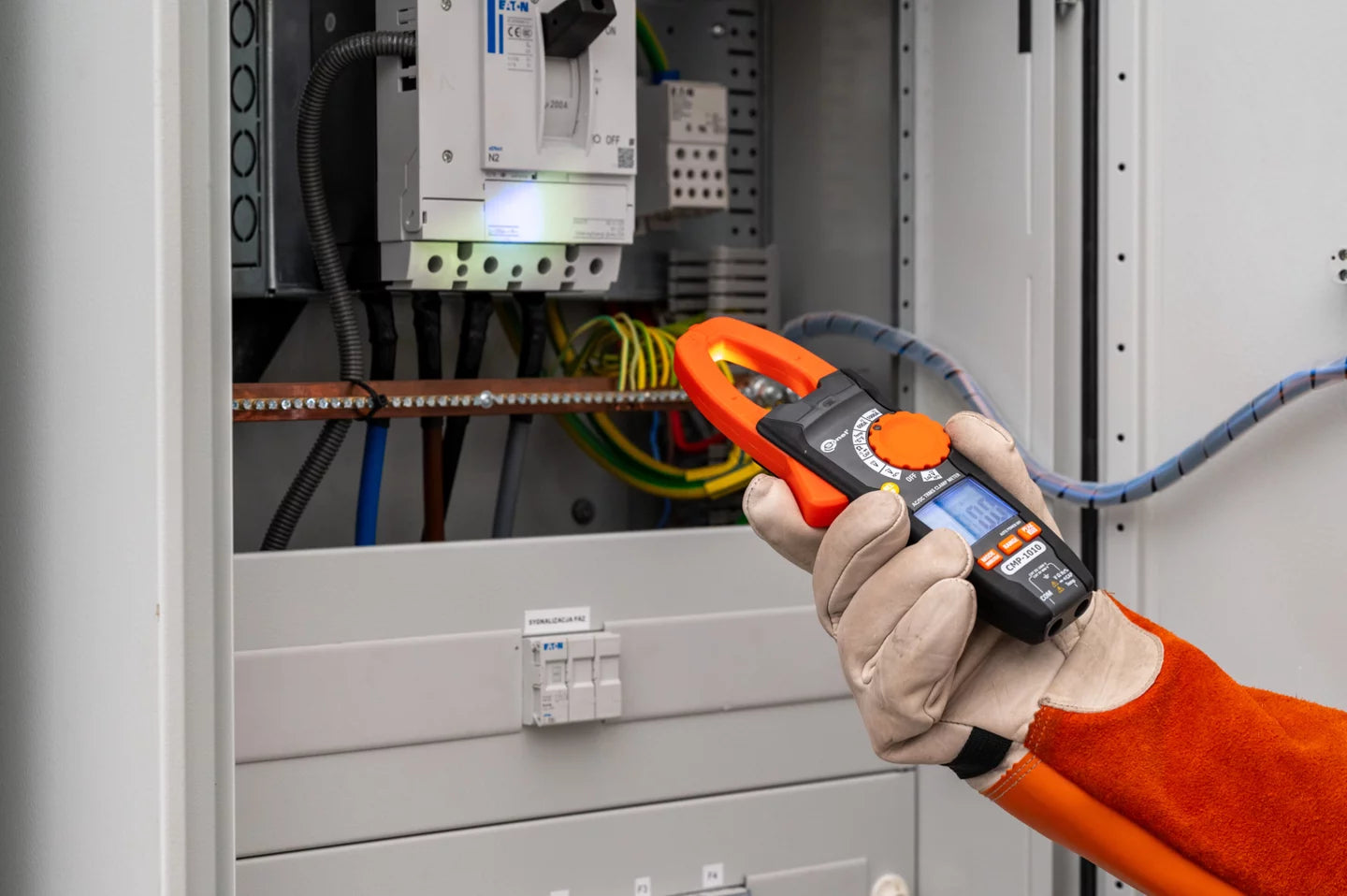

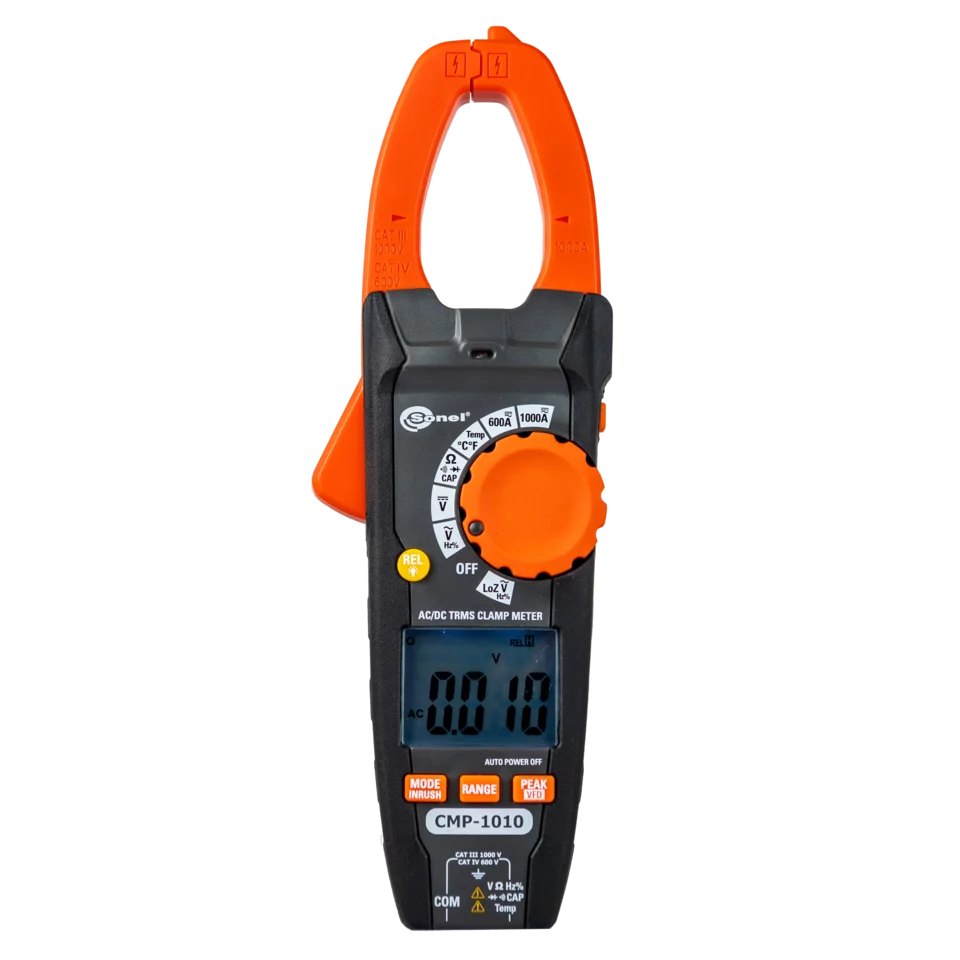

• The Sonel CMP-1010 measures AC and DC current, AC and DC voltage and more. The meter provides precise measurements downstream of frequency converters. The device is versatile due to many measurement options, including low-impedance voltage measurement (Low Z). Darkness in the workplace is not a problem thanks to the built-in flashlight.

  Modern clamp

  The innovative shape means easier access in hard to reach and tight places. The clamp edging is equipped with a contactless voltage indicator sensor.

  Visibility in any conditions

  Darkness in the workplace is not a problem thanks to the built-in flashlight.

  Multifunctional

  The device is versatile due to many measurement options. In addition to the basic measurements, the instrument has special functions, including inrush current (INRUSH), max / min peak values (Peak MAX/Peak MIN), relative value (REL), low-impedance voltage measurement (Low Z).

  Robust design

  With the help of the latest technologies, a compact instrument for working in the toughest conditions has been created. The rubber housing protects the device against accidental damage.

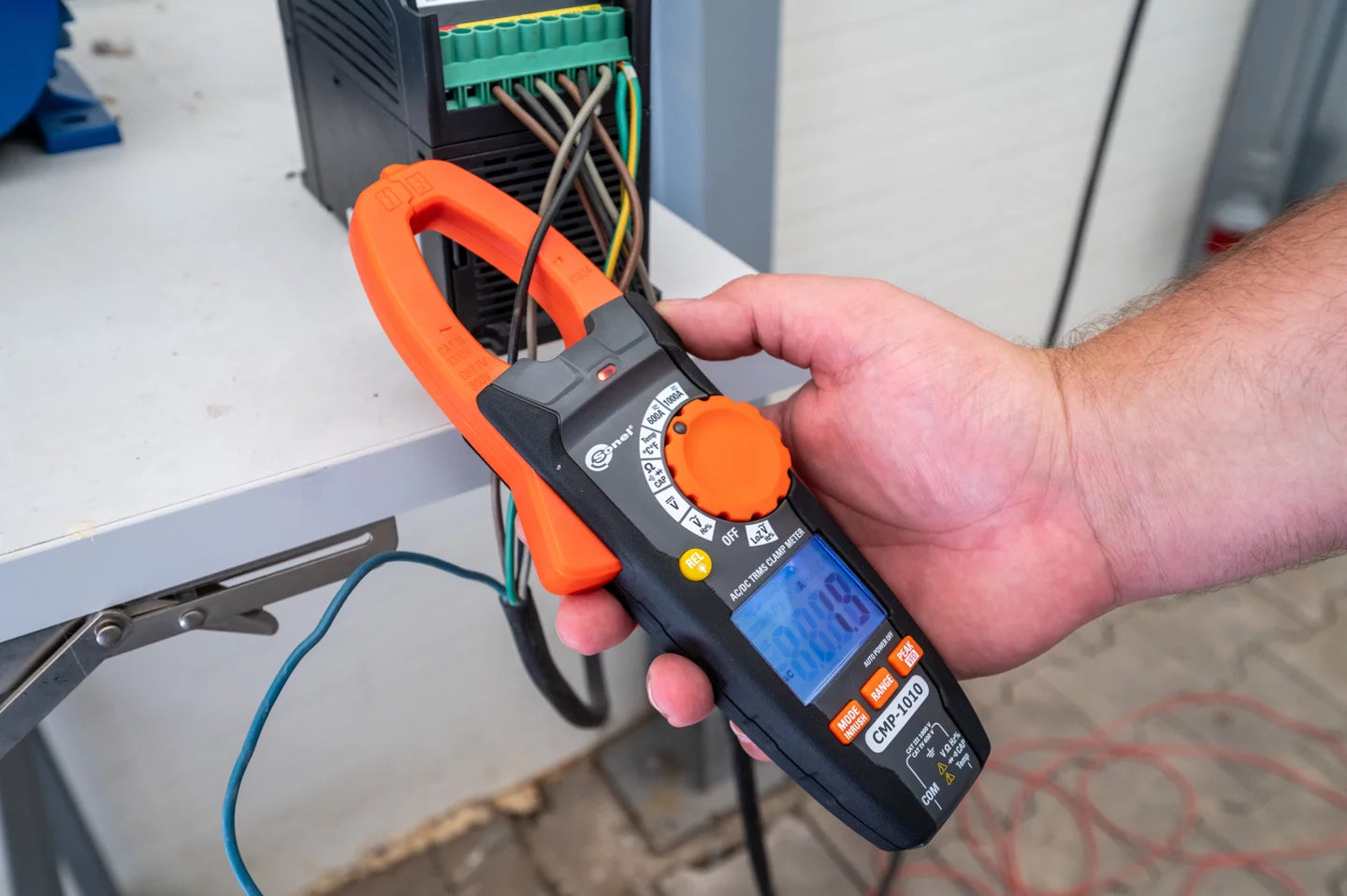

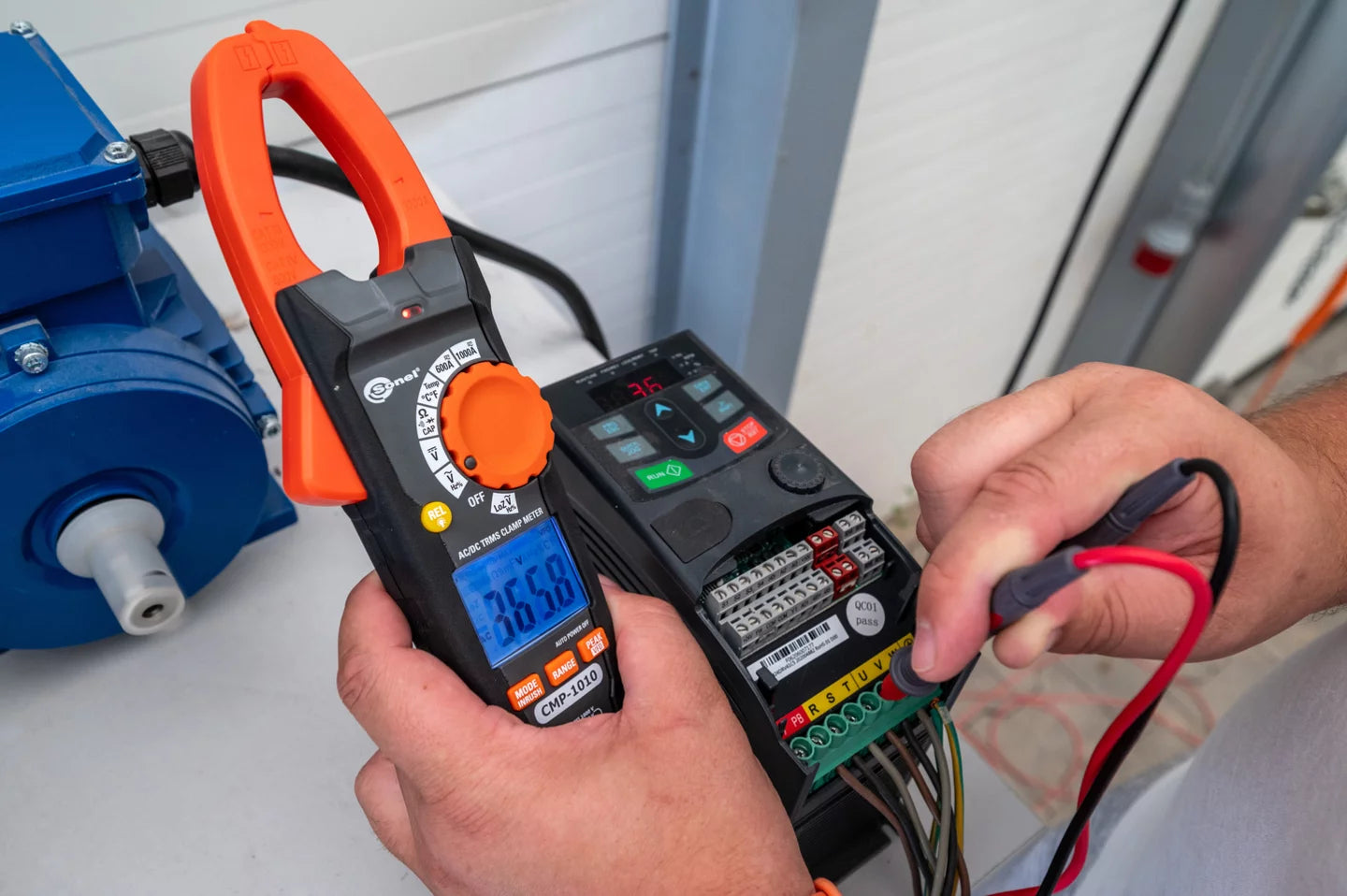

  Measurement of converters

  The meter provides precise measurements downstream of frequency converters thanks to the VFD function.










  TECHNICAL SPECIFICATION










  • Technical specifications




    Measurement functions	Range	Resolution	Accuracy
    AC current	up to 1000 A	from 0.1 A	from ±(2.5% m.v. + 8 digits)
    DC current	up to 1000 A	from 0.1 A	from ±(2.5% m.v. + 5 digits)
    AC voltage	up to 1000 V	from 0.001 V	±(1.5% m.v. + 5 digits)
    DC voltage	up to 1000 V	from 0.1 mV	from ±(0.5% m.v. + 5 digits)
    Low Z	up to 300.0 V	from 0.001 V	±(3.0% m.v. + 40 digits)
    Resistance	up to 60.00 MΩ	from 0.1 Ω	from ±(1.0% m.v. + 4 digits)
    Frequency	up to 99.99 kHz	from 0.001 Hz	±(1.2% m.v. + 5 digits)
    Capacitance	up to 100.0 mF	from 0.01 nF	from ±(3.0% m.v. + 5 digits)
    Duty cycle (%)	10.0…90.0%	0.1%	±(1.2% m.v. + 2 digits)
    Temperature measurement	-20.0…+1000ºC -4.0…+1832ºF	0.1ºC 0.1ºF	±(3% m.v. + 5ºC) ±(3% m.v. + 9ºF)
    Continuity / Diode test	✓ / ✓



    m.v. - measured value

    Basic features:

    • Counting: 6.000 digits
    • HOLD
    • Automatic range selection

    Advanced features:

    • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
    • Inrush current
    • Non-contact voltage detector
    • Peak MIN / Peak MAX
    • Relative measurement REL
    • TRMS measurement

    Other features​​​​​​​​​​​​​​:

    • Auto-off
    • Empty battery indication
    • Integrated flashlight
    • Beeper
    • Display:
      • Type: segment-based LCD, 4 digits
      • Display backlight: manual



    Accessories included with the meter



    Temperature probe type K adapter

    NO. CAT. WAADATEMK

    1 pcs



    Type K temperature probe

    NO. CAT. WASONTEMK

    1 pcs
