Sonel Test Equipment

CMM-11 Multimeter

CMM-11 Multimeter

Regular price $143.00
Regular price Sale price $143.00
Sale Sold out
Shipping calculated at checkout.



Description





Pocket-sized multimeter with tough nature

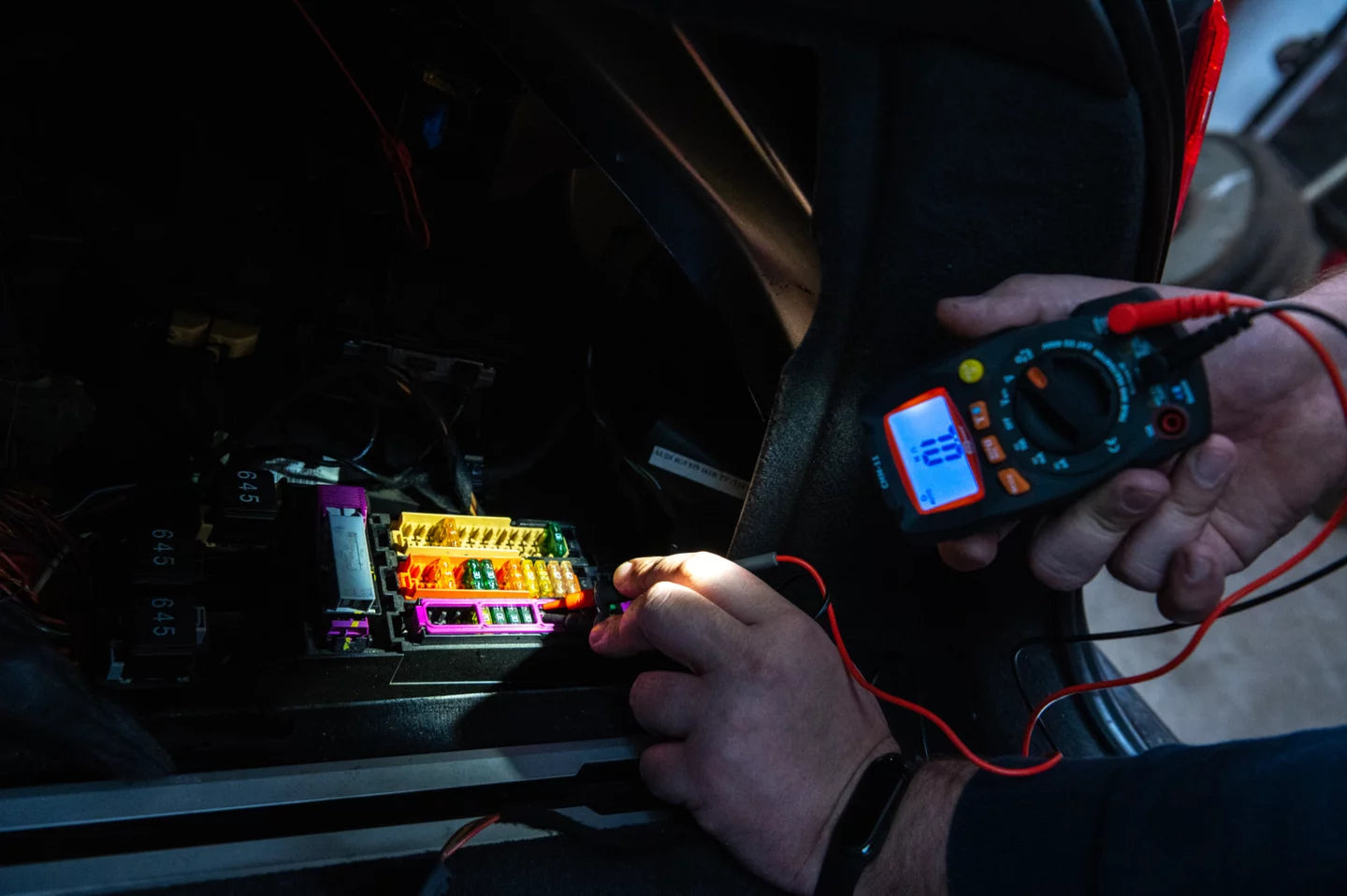

Simple and compact digital multimeter Sonel CMM-11 surprises with its lightning fast operation and measurement precision. The device is most frequently used for quick diagnostics of electrical equipment and circuits. Its handy design makes it easy to fit in any tool bag and it does not take up much space. It has all the basic measuring functions, and due to its rubberised casing, it is not affected by drops and mechanical damage. It is ideal for every electrician, fitter and maintenance technician, as well as others in the electrical and power industry. It performs well even under difficult operating conditions and, due to its backlit display, it enables easy reading of the measurement result even in poor lighting conditions.

Extremely durable and robust

In response to the needs of our customers, we have made the CMM-11 device resistant to accidental impacts that can lead to unit damage. The elastomer material used in the housing protects the unit if it is dropped and absorbs the shocks caused by such impacts.

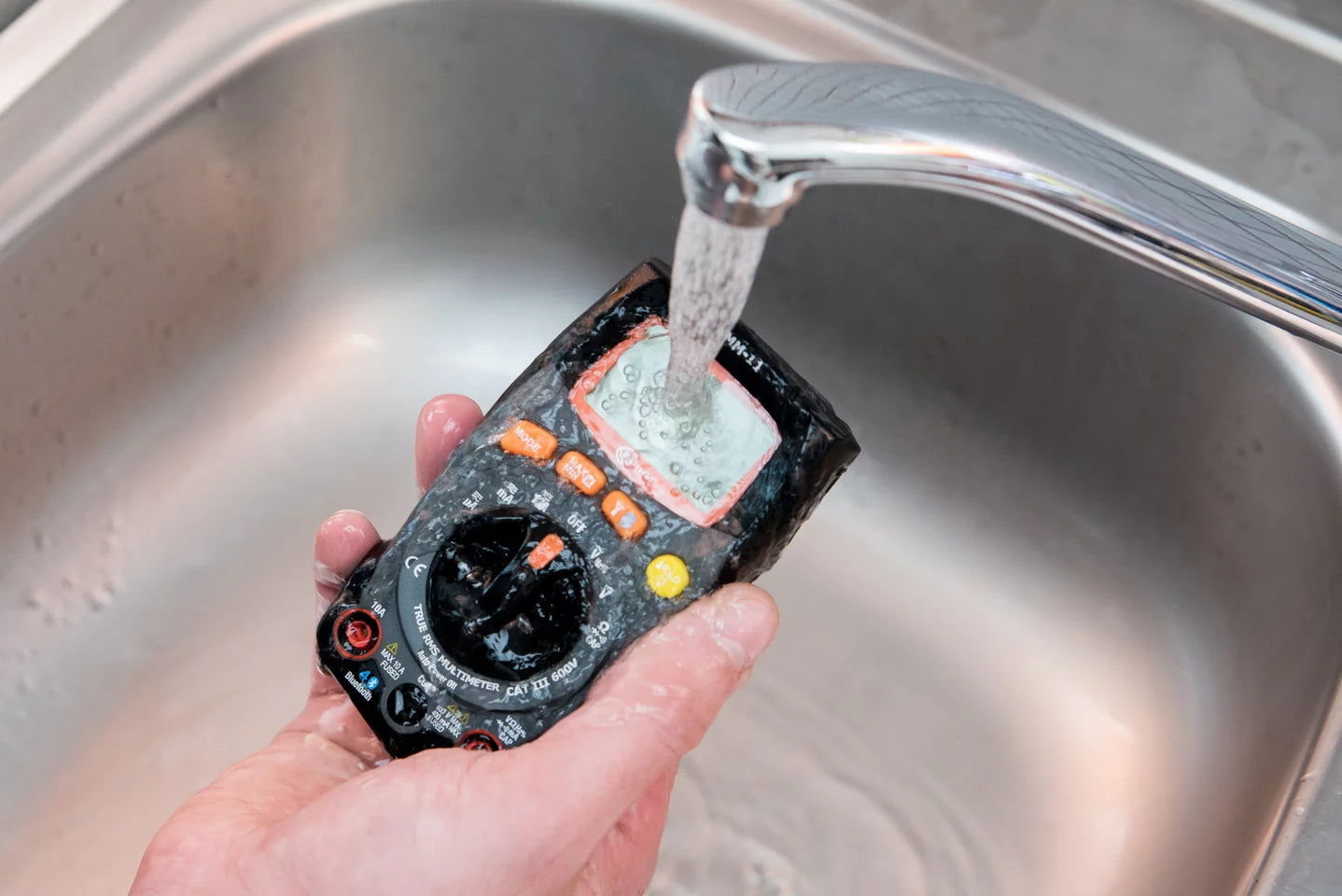

Protection against dust penetration and streams of water

The housing has been designed for use in the field. The IP65 degree provides protection the unit against dust penetration and accidental flooding with a stream of water.

Compact housing

Limited space in your tool box? It is not a problem with CMM-11. Thanks to the small dimensions, the unit even fits in your pocket.

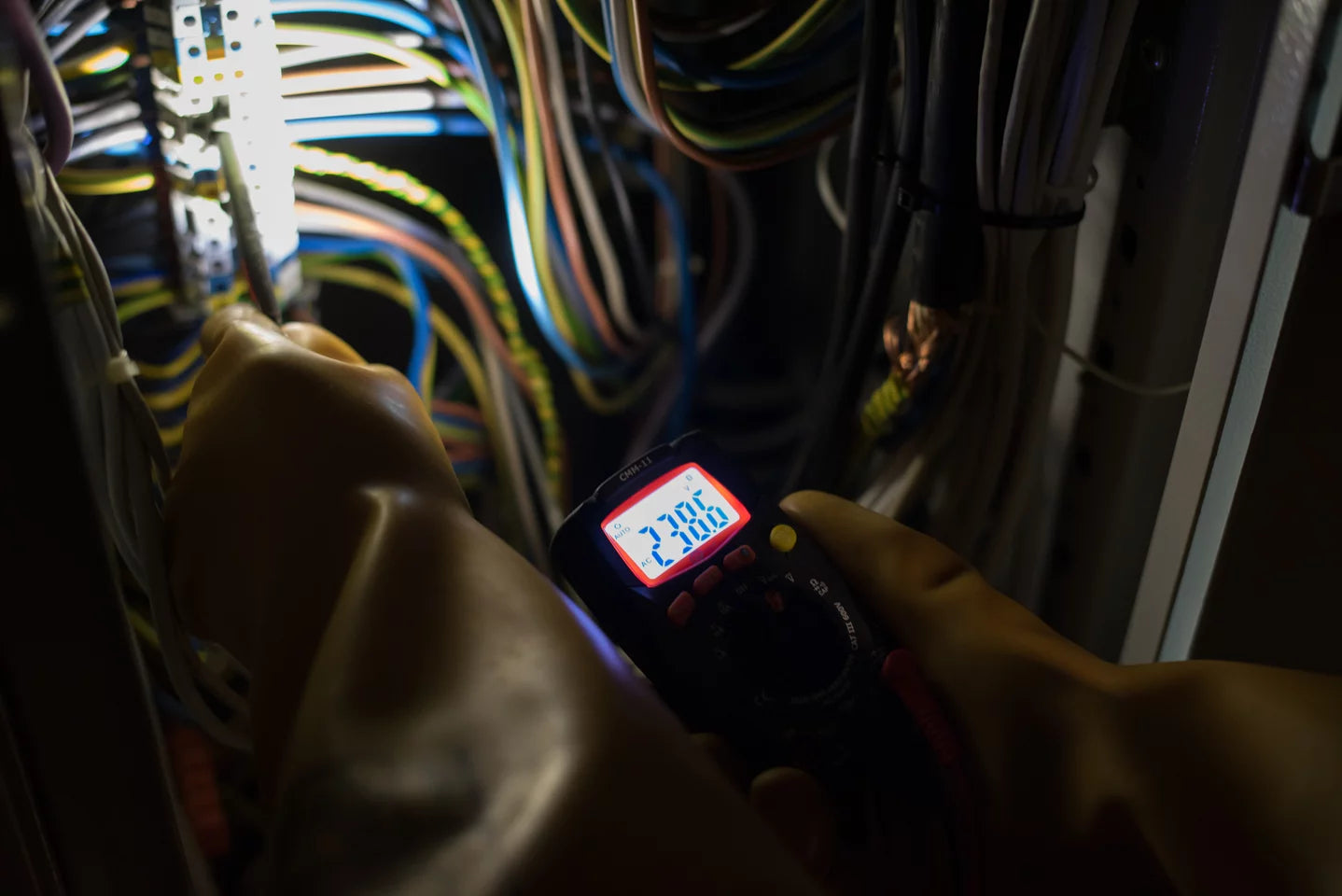

Good visibility in any conditions

Insufficient lighting where the measurements are being taken is not an obstacle anymore thanks to the integrated flashlight.

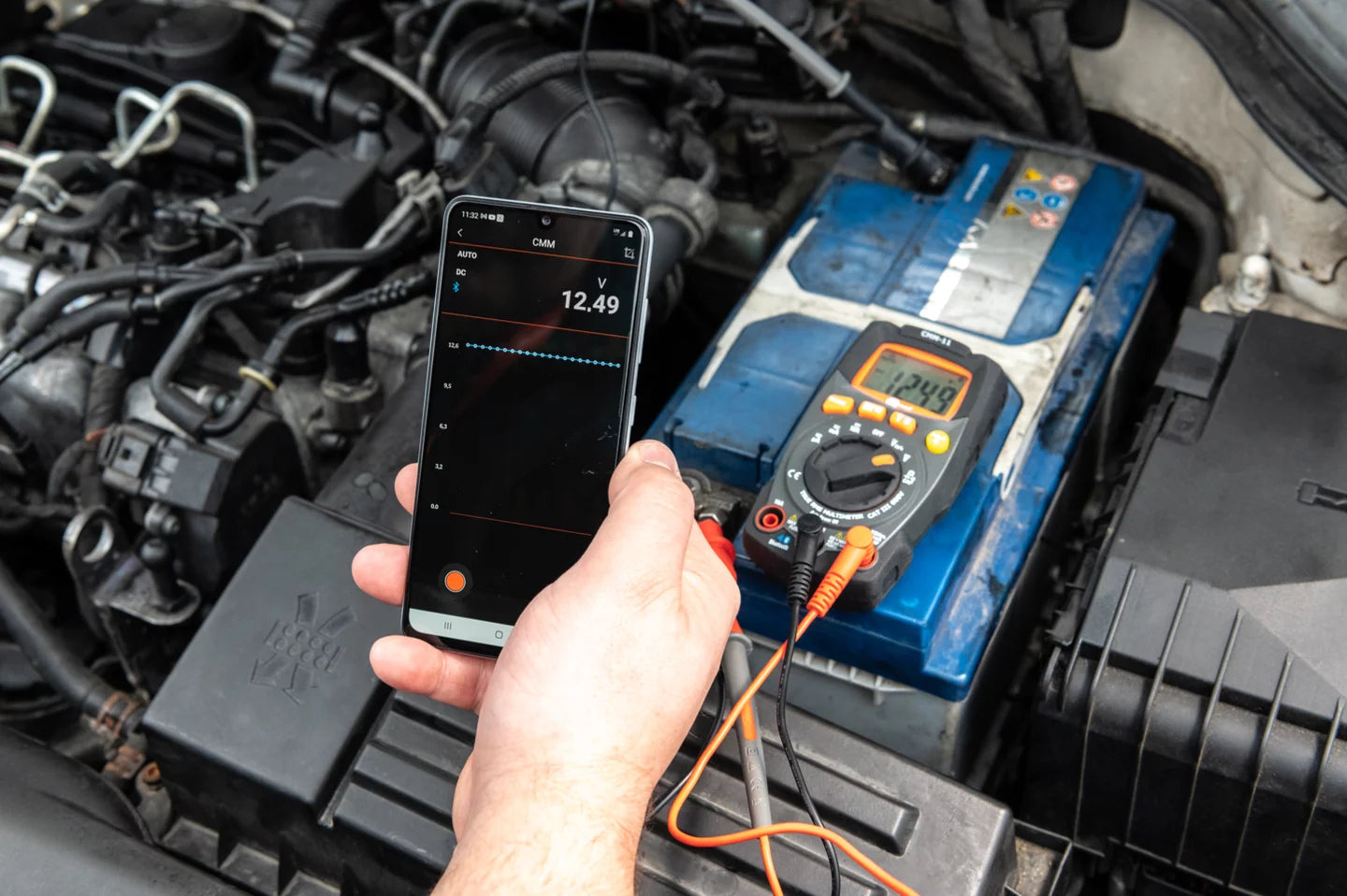

Wireless communication

The device can wirelessly send the results of measurements ("live" mode) to the mobile application – Sonel Multimeter Mobile. It enables the recording and storage of results, notes and photos can be added or files attached to e-mail messages later on.













Technical data





Technical specification

Measurement functions Range Resolution Accuracy
AC / DC voltage up to 600 V from 0.001 V from ±(1.0% m.v. + 3 digits)
AC / DC current up to 10.00 A from 0.1 μA from ±(1.0% m.v. + 3 digits)
Resistance up to 40.00 MΩ from 0.1 Ω from ±(1.0% m.v. + 4 digits)
Frequency up to 99.99 kHz from 0.001 Hz ±(1.0% m.v. + 5 digits)
Capacity up to 4000 µF from 0.01 nF from ±(3.0% m.v. + 5 digits)
Duty cycle (%) 0.1% ±(1.2% m.v. + 2 digits)
Continuity / Diode test ✓ / ✓



“m.v.” - measured value

Basic features:

  • Counting: 4.000 digits
  • HOLD
  • Manual / automatic range selection

Advanced features:

  • MIN / MAX
  • TRMS measurement
  • Memory: in mobile application
  • Bluetooth communication

Other features:

  • Easy access to A / mA fuses
  • Auto-off
  • Empty battery indicationi
  • Beeper
  • Integrated flashlight
  • Display:
    • Type: segment-based
    • Display backlight







Weight and dimensions
