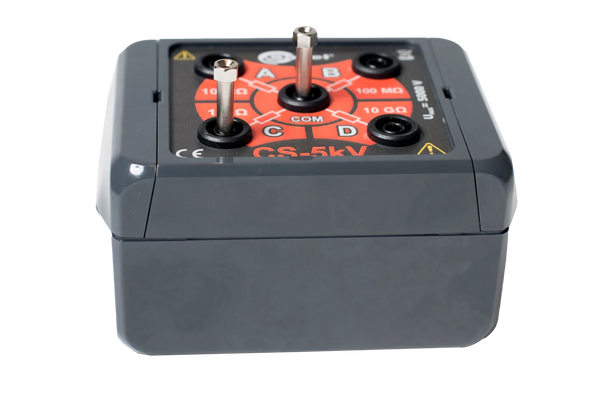

CS-5kV Calibration box

CS-5kV Calibration box

Regular price $373.00
Regular price Sale price $373.00
Sale Sold out
Shipping calculated at checkout.

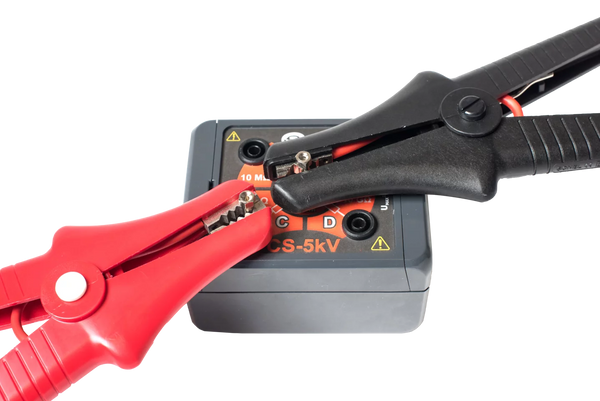

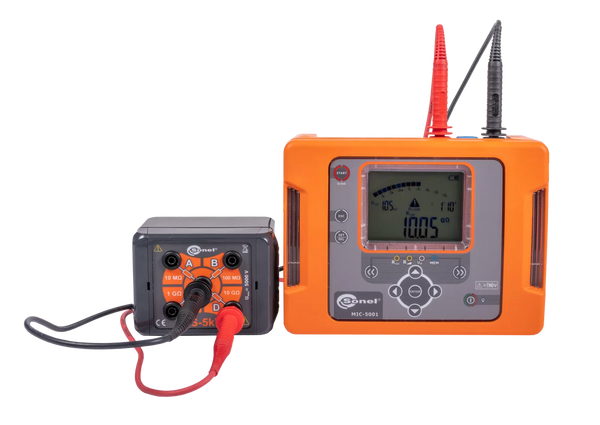

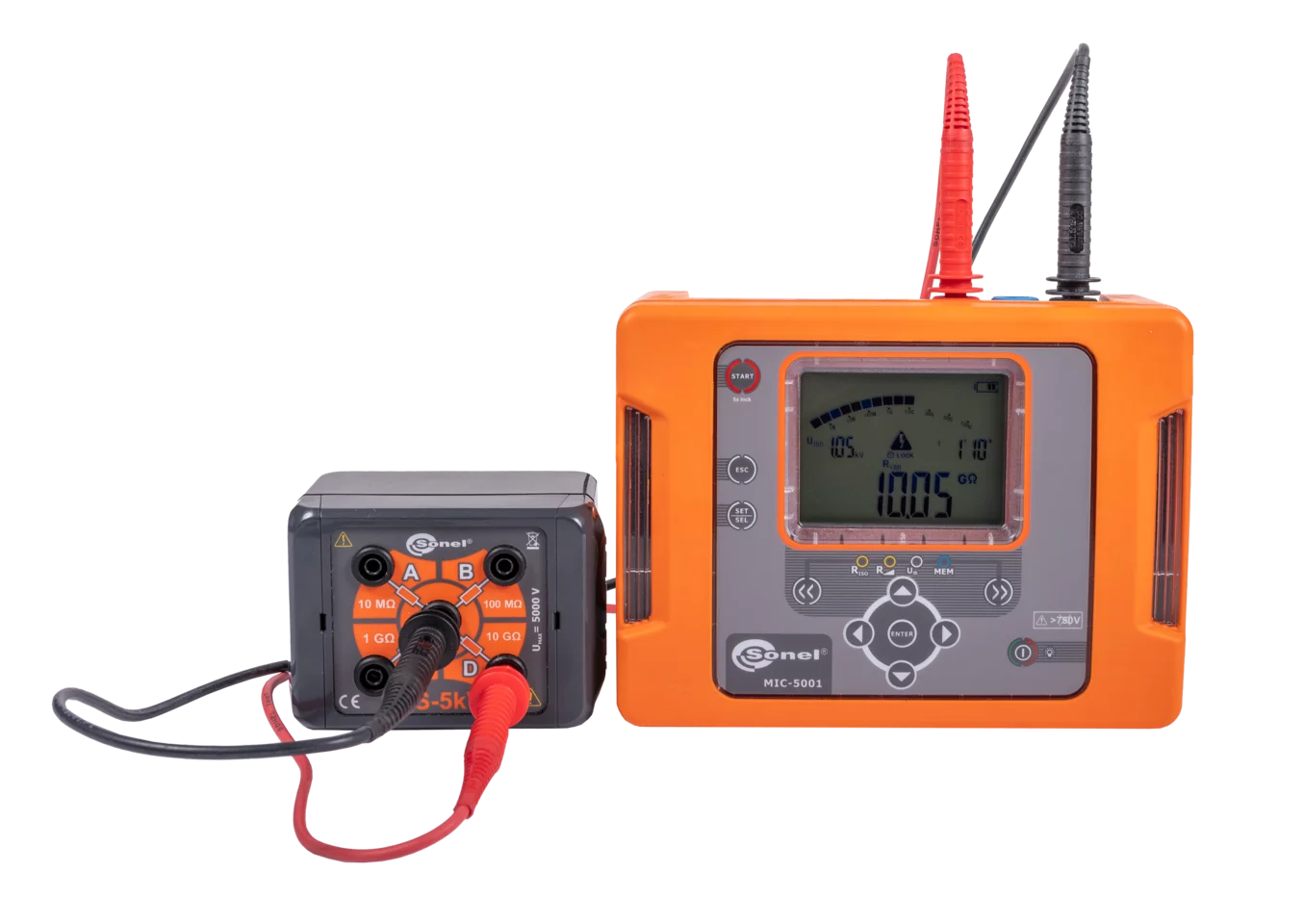

The calibration box has been designed to verify indications of insulation resistance meters. The use of high-quality resistors with a very high degree of accuracy makes the CS-5kV an ideal tool for cooperation with devices with a test voltage of up to 5 kV DC. The box enables the measurement of four resistance values and their combination. The device utilizes 4 mm banana plugs.


  • Nominal resistance values: 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ.
  • Fast verification of the correctness of insulation tester indications.
  • High accuracy reference resistors.





Technical data



Technical specifications

Parameter Description
Basic technical specifications
Max measuring voltage 5500 V DC
Nominal resistance values 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ
Nominal value accuracy ±1%
Safety and conditions for use
Ingress protection IP40
Insulation type according to EN 61010-1 double
Operating temperature -5…+50°C | 41°F…104°F
Storage temperature -30…+60°C | -4°F…140°F
Humidity 60%
Other information
Quality standard – development, design and production ISO 9001






Weight and dimensions

Parameter Value
Net weight (kg) 0.2
Package weight (kg) 0.3
Package width (cm) 12
Package height (cm) 7
Package length (cm) 24.5
