| Parameter | Value |
|---|---|
| Net weight (kg) | 0.3 |
| Package weight (kg) | 0.5 |
| Package width (cm) | 12.5 |
| Package height (cm) | 7.5 |
| Package length (cm) | 24.5 |
1
/
of
1
Sonel Test Equipment USA

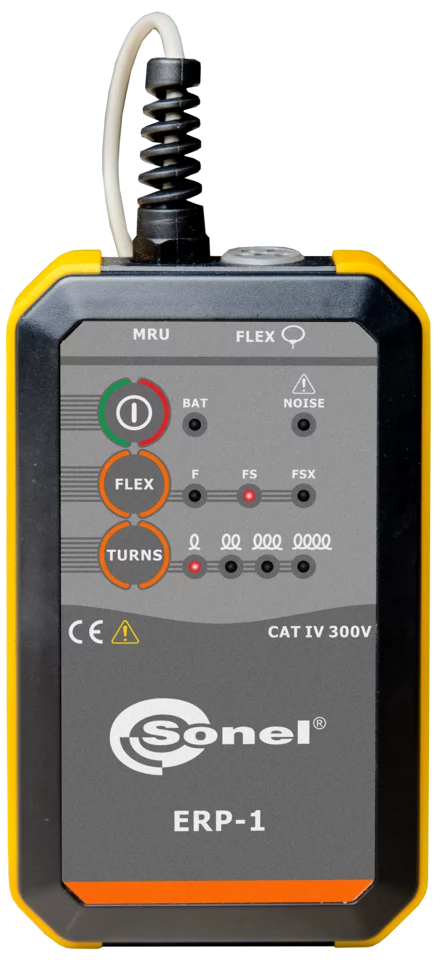

Adapter for poles earth resistance measurement
Adapter for poles earth resistance measurement
Regular price
$781.00
Regular price
Sale price
$781.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Flexibility in measurements
The SONEL ERP-1 adapter, in combination with meters that can generate measurement current of 200 mA, serves for measuring of resistance of multiple groundings without disconnecting control connection clamps. The flexible, big diameter coil allows to measure earth resistance of e.g. transmission towers - including lattice poles - without shutting down the power line.
Ergonomic design of the adapter, its convenient housing and simple operation make earth resistance measurements on transmission towers and pylons quick and problem-free. The protection degree of the adapter is IP67, which makes it suitable for operation in muddy and rain conditions.
Technical data
| Name | Description |
|---|---|
| Flexible clamp FS-2 | |
| output level | 100 mV / 1 A |
| ength | 4000 mm | 157.5” |
| Flexible clamp FSX-3 | |
| output level | 300 mV / 1 A |
| length | 2000 mm | 78.7” |
| Measurement category acc. to IEC 61010-1 | CAT IV 300 V |
| Measurement range | up to 5 A |
| Operating frequency | |
| for 50 Hz networks | 125 Hz |
| for 60 Hz networks | 150 Hz |
| Power supply | 3x LR6 1.5 V battery or 3x NiMH LR6 1.2 V rechargeable battery |
| Other data | |
| Operating temperature | -10...+50°C | 14...122°F |
| Storage temperature | -20...+80°C | -4...176°F |
| Humidity | 20…90% |
| Ingress protection | IP67 |
Weight and dimensions
