| Parameter | Value |
|---|---|
| Net weight (kg) | 0.2 |
| Package weight (kg) | 0.2 |
| Package width (cm) | 18 |
| Package height (cm) | 7.5 |
| Package length (cm) | 25.5 |
1
/
of
1
Sonel Test Equipment USA

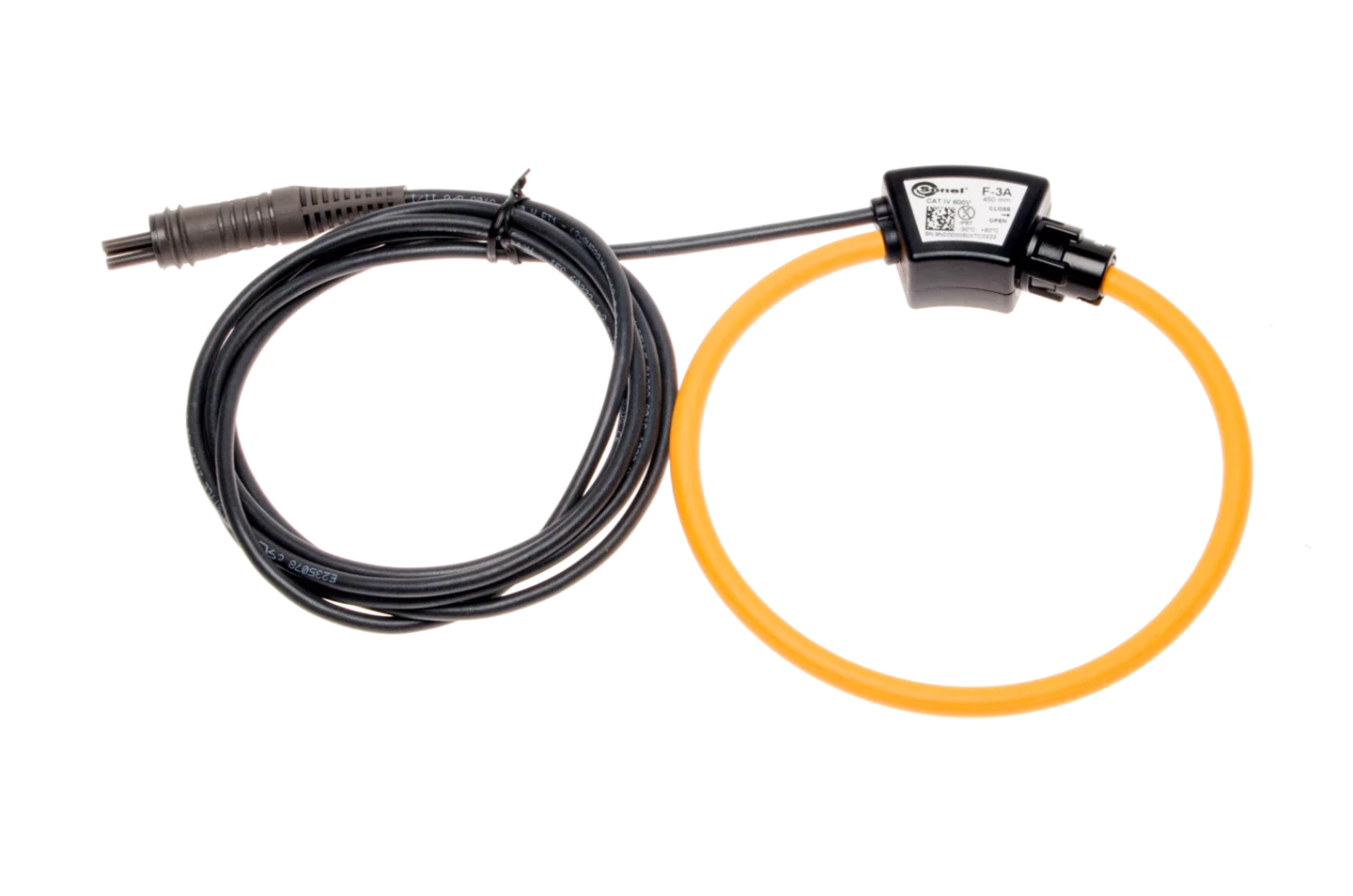

F-3A Flexible coil (Φ=120 mm)
F-3A Flexible coil (Φ=120 mm)
Regular price
$249.00
Regular price
Sale price
$249.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Flexible current coil, also known as a Rogowski coil, is useful for testing objects, on which hard clamps cannot be attached. In the measurements of alternating current, flexible coils are connected directly to the meter, whereas for earth resistance testing - the operators additionally use ERP-1 adapter.
They enable the measurements of current levels up to 6000 A. With the 5-pin termination, they are connected directly to the power quality analyzers. The rated current of this product is 3000 A and the diameter of the enclosed conductor is maximum 120 mm.
Technical data
Weight and dimensions
